GENERATOR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

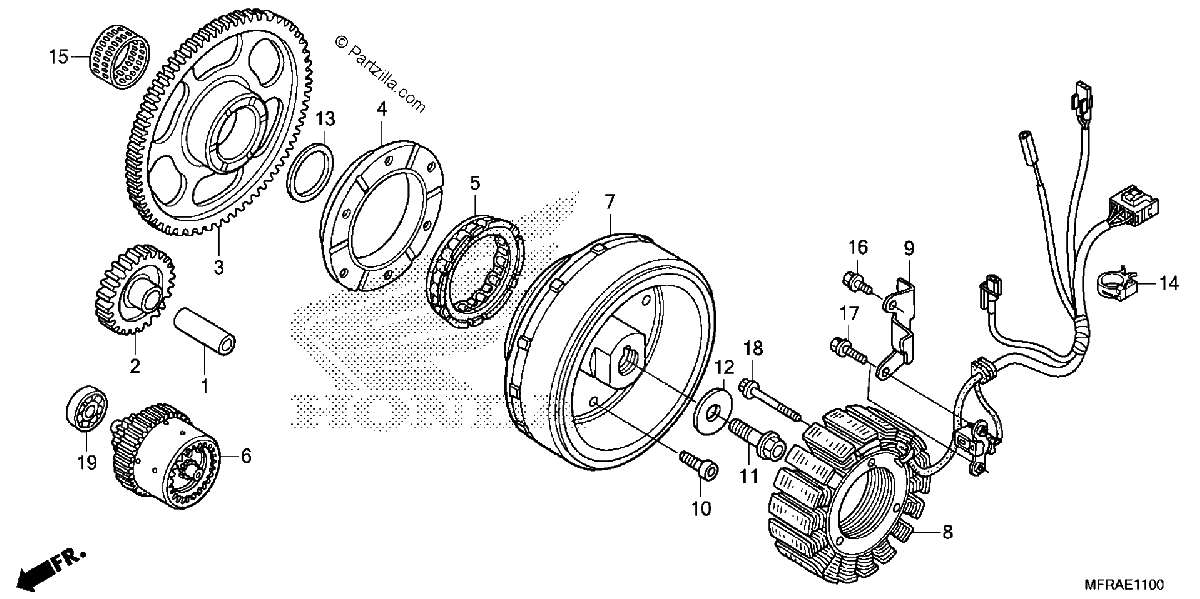

Diagrama de GENERATOR

Repuestos

#1
13111-KE6-830
PIN, PISTON
$16.81¢8 407
1
#2
28101-MCH-000
GEAR, STARTER REDUCTION (27T)
$86.89¢43 447
1
#3
28110-MCH-000
GEAR, STARTING DRIVEN (76T)
$202.84¢101 419
1
#4
28121-MAH-000
CLUTCH OUTER, STARTING
$177.39¢88 694
1
#5
28126-MK5-004
CLUTCH, ONE-WAY
$102.88¢51 439
1
#6
28140-MCH-000
LIMITER ASSY., TORQUE
$397.28¢198 639
1
#7
31110-MFR-671
FLYWHEEL
$650.54¢325 272
1
#8
31120-MFR-671
STATOR
$442.63¢221 317
1
#9
32961-MEA-670
CLAMP, ALTERNATOR WIRE
$1.53¢765
1
#10
90010-MCH-000
BOLT, SOCKET (8MM)
$3.21¢1 604
1
#11
90023-MBT-010
BOLT, FLANGE (12X45)
$8.34¢4 169
1
#12
90402-MBA-A40
WASHER (12.2X40X5)
$6.66¢3 329
1
#13
90451-383-000
WASHER, THRUST (34MM)
$9.59¢4 796
1
#14
90690-GHB-661
CLIP, CABLE (20MM)
$2.59¢1 294
1
#15
91021-MCH-003
BEARING, NEEDLE (34X44X24)
$36.80¢18 400
1
#16
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#17
96001-06020-00
BOLT, FLANGE (6X20)
$1.47¢736
1
#18
96001-06045-00
BOLT, FLANGE (6X45)
$2.32¢1 162
1
#19
96100-60000-00
BEARING, RADIAL BALL (6000)
$9.06¢4 531
1
