CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

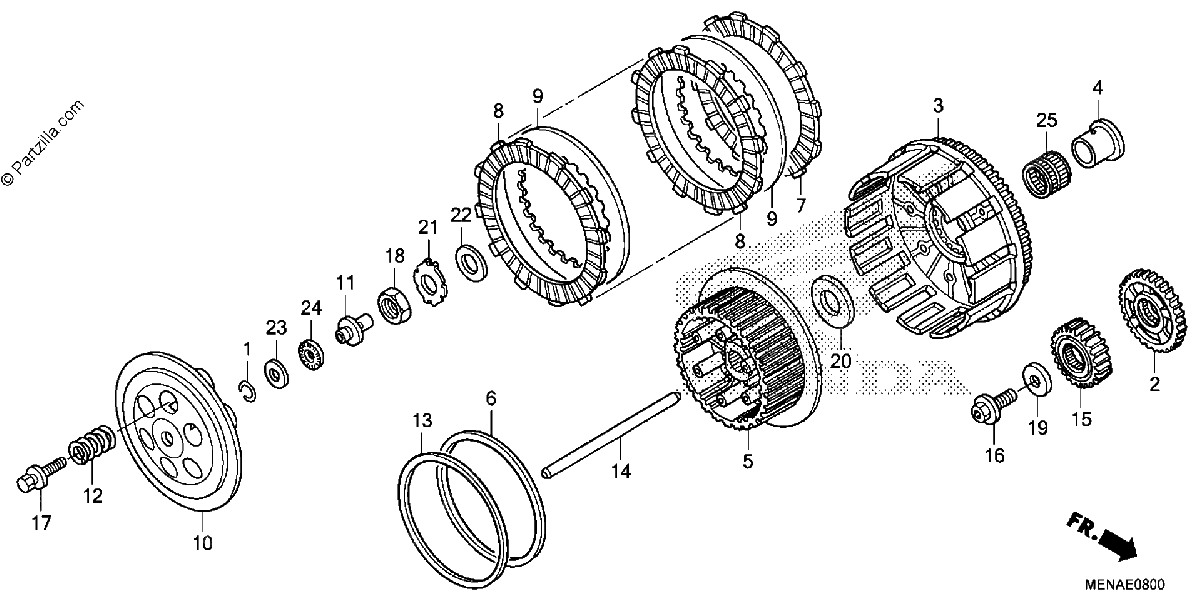

Diagrama de CLUTCH

Repuestos

#NI
06001-MEN-005
CLUTCH KIT (INCLUDE-FRICTION DISC,PLATES,
$361.50¢180 750
1
#1
13115-147-000
CLIP, PISTON PIN (10MM)
$2.85¢1 425
1
#2
13415-MEN-A70
GEAR, BALANCER DRIVE (34T)
$116.54¢58 269
1
#3
22100-MEN-A70
CLUTCH OUTER
$527.69¢263 844
1
#4
22106-KS7-000
COLLAR, CLUTCH (OUTER)
$30.59¢15 294
1
#5
22120-MEN-A70
CENTER, CLUTCH
$173.52¢86 762
1
#6
22125-MBN-670
SEAT, JUDDER SPRING
$9.83¢4 913
1
#7
22201-MBN-670
DISK, CLUTCH FRICTION
$23.46¢11 731
1
#8
22201-MEN-A10
DISK, CLUTCH FRICTION
$17.75¢8 875
1
#9
22321-KZ3-690
PLATE B, CLUTCH
$18.70¢9 350
1
#10
22351-KZ3-860
PLATE, CLUTCH PRESSURE
$91.00¢45 500
1
#11
22352-KRN-670
PIECE, CLUTCH LIFTER
$41.96¢20 981
1
#12
22401-MEN-A70
SPRING, CLUTCH
$4.68¢2 338
1
#13
22402-MBN-670
SPRING, JUDDER
$24.76¢12 381
1
#14
22850-MEN-A70
ROD, CLUTCH LIFTER
$34.59¢17 294
1
#15
23121-MEN-A30
GEAR, PRIMARY DRIVE (23T)
$107.91¢53 956
1
#16
90013-MEB-670
BOLT, SPECIAL (12X28)
$7.25¢3 625
1
#17
90024-MEN-A70
BOLT-WASHER (6X35)
$3.11¢1 556
1
#18
90235-MEN-A30
NUT (18MM)
$6.23¢3 113
1
#19
90402-KW6-960
WASHER, PLAIN (12MM)
$6.74¢3 369
1
#20
90421-HA2-010
WASHER, THRUST (23X48)
$12.68¢6 338
1
#21
90461-KZ3-J10
WASHER, LOCK (18MM)
$7.57¢3 787
1
#22
90501-ML3-910
WASHER (18X32X2)
$5.30¢2 650
1
#23
90608-072-000
WASHER (12MM)
$4.61¢2 306
1
#24
91001-147-003
BEARING, NEEDLE (12MM) (NTN)
$14.60¢7 300
1
#25
91021-ML3-003
BEARING, NEEDLE (28X32X27.2) (THOMPSON)
$20.90¢10 450
1
