HANDLE LEVER SWITCH CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

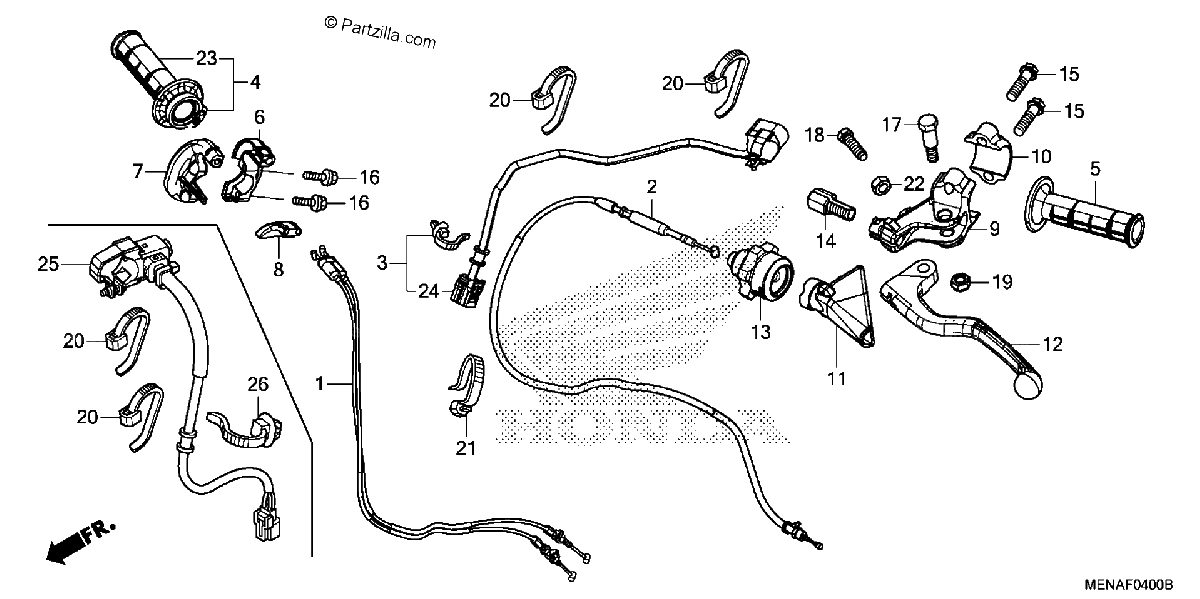

Diagrama de HANDLE LEVER SWITCH CABLE

Repuestos

#1
17910-MEN-A71
CABLE, THROTTLE
$50.52¢25 260
1
#1
17910-MEN-A81
CABLE, THROTTLE
$50.52¢25 260
1
#2
22870-MEN-A70
CABLE, CLUTCH
$47.45¢23 724
1
#3
35130-MEN-A71
SWITCH ASSY., ENGINE STOP INDICATOR
$118.71¢59 357
1
#4
53140-MEN-305
GRIP, THROTTLE (COO)
$24.07¢12 035
1
#5
53166-MEN-305
GRIP, L. HANDLE (COO)
$11.04¢5 520
1
#6
53167-MEB-672
HOUSING, THROTTLE (UPPER)
$23.00¢11 500
1
#7
53168-KRN-A90
HOUSING, THROTTLE (LOWER)
$31.50¢15 749
1
#7
53168-MEB-671
HOUSING, THROTTLE (LOWER)
$31.50¢15 749
1
#8
53169-MEB-670
SLIDER, THROTTLE CABLE
$4.83¢2 415
1
#9
53172-KSK-670
BRACKET, L. HANDLE LEVER
$42.84¢21 419
1
#10
53174-KCE-670
HOLDER, L. LEVER BRACKET
$14.37¢7 187
1
#11
53177-KSK-670
COVER, L. HANDLE LEVER
$10.58¢5 290
1
#12
53178-MEN-305
LEVER, L. HANDLEBAR (COO)
$26.48¢13 242
1
#13
53179-MEN-671
DIAL, CLUTCH CABLE ADJUSTING
$12.03¢6 015
1
#14
53192-MEN-670
BOLT, WIRE ADJUSTING
$8.83¢4 416
1
#15
90102-MEN-A60
BOLT (6X22)
$3.10¢1 553
1
#16
90106-MEN-A60
BOLT (6X20)
$2.75¢1 374
1
#17
90113-429-770
BOLT, HANDLE LEVER PIVOT
$6.64¢3 318
1
#18
90118-MEN-670
BOLT, LEVER ADJUSTING
$4.34¢2 168
1
#19
90301-782-000
NUT, U (6MM)
$1.83¢914
1
#20
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#21
90650-MA6-720
BAND, WIRE HARNESS
$4.62¢2 311
1
#22
94001-06000-0S
NUT, HEX. (6MM)
$1.54¢771
1
#22
94001-06200-0S
NUT, HEX. (6MM)
$1.54¢771
1
#23
53165-MEN-305
GRIP, R. HANDLE (COO)
$11.93¢5 963
1
#23
53165-KRN-A30
GRIP, R. HANDLE
$11.93¢5 963
1
