RIGHT CRANKCASE COVER WATER PUMP

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

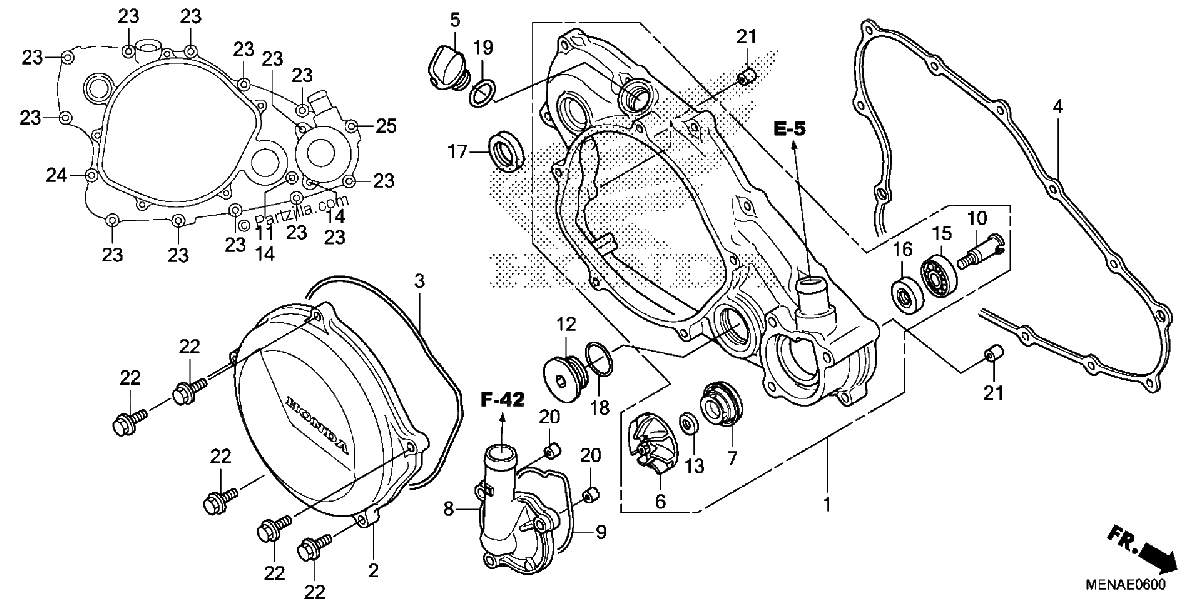

Diagrama de RIGHT CRANKCASE COVER WATER PUMP

Repuestos

#1
11330-MEN-A70
COVER ASSY., R. CRANKCASE
$510.00¢255 000
1
#2
11351-MEN-A40
COVER, CLUTCH
$166.15¢83 075
1
#3
11352-MEB-671
GASKET, CLUTCH COVER
$11.03¢5 513
1
#4
11394-MEN-A40
GASKET, R. COVER
$30.47¢15 237
1
#5
15611-KA4-710
CAP, OIL FILLER
$16.71¢8 356
1
#6
19215-MEN-850
IMPELLER, WATER PUMP
$49.44¢24 719
1
#7
19217-KRN-A61
SEAL, MECHANICAL
$53.86¢26 931
1
#8
19221-MEN-A30
COVER, WATER PUMP
$106.23¢53 113
1
#9
19226-MEN-A30
GASKET, WATER PUMP
$6.18¢3 088
1
#10
19241-MEN-A30
SHAFT, WATER PUMP
$71.97¢35 988
1
#11
90004-GHB-600
BOLT, FLANGE (6X10) (NSHF)
$3.75¢1 875
1
#12
90087-HB5-000
CAP (30MM)
$19.51¢9 756
1
#13
90447-KE1-000
WASHER, SEALING (7MM)
$3.43¢1 713
1
#14
90463-ML7-000
WASHER, SEALING (6.5MM)
$3.65¢1 825
1
#15
91002-MEN-A31
BEARING, BALL (12X24X6)
$10.32¢5 163
1
#16
91201-148-003
OIL SEAL (12X22X5) (ARAI)
$4.91¢2 456
1
#16
91201-965-000
OIL SEAL (12X22X5)
$4.91¢2 456
1
#17
91204-KF0-003
OIL SEAL (20X28X5)
$7.92¢3 963
1
#18
91305-KF0-003
O-RING (27X2) (ARAI)
$3.65¢1 825
1
#19
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#20
91320-KE1-000
PIN, DOWEL (8X7)
$2.88¢1 438
1
#21
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#22
96001-06025-00
BOLT, FLANGE (6X25)
$2.70¢1 350
1
#23
96001-06028-00
BOLT, FLANGE (6X28)
$2.79¢1 394
1
#24
96001-06032-00
BOLT, FLANGE (6X32)
$1.80¢900
1
#25
96001-06080-00
BOLT, FLANGE (6X80)
$2.85¢1 425
1
