CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

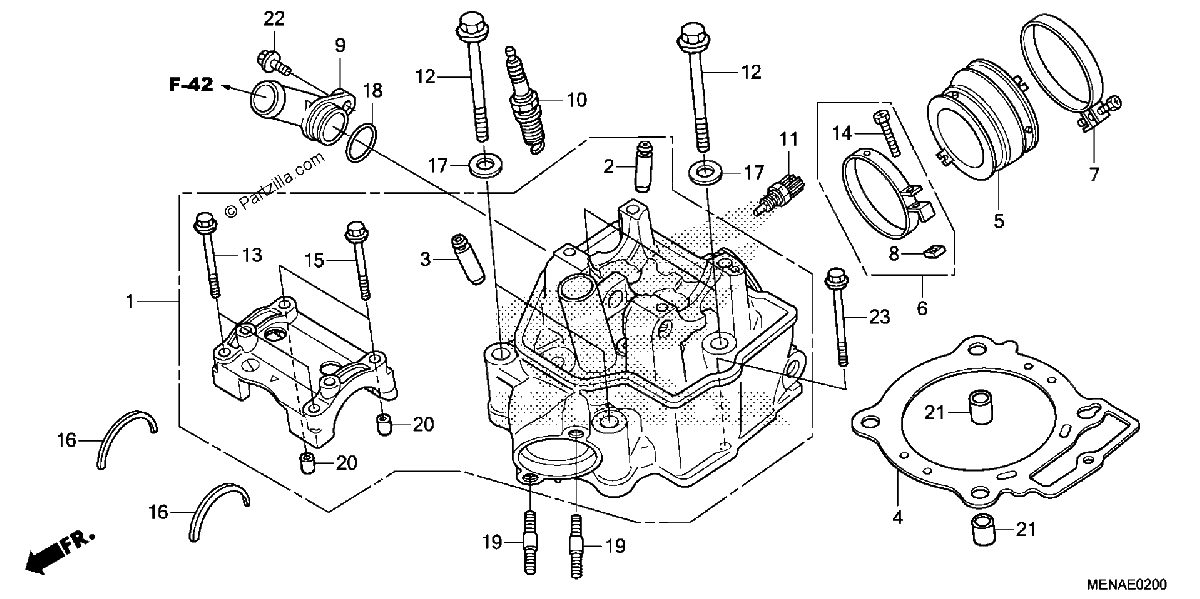

Diagrama de CYLINDER HEAD

Repuestos

#1
12010-MEN-A70
CYLINDER HEAD ASSY.
$881.60¢440 801
1
#2
12204-MEN-P00
GUIDE, VALVE (OVER SIZE)
$19.47¢9 735
1
#3
12205-MEB-P00
GUIDE, EX. VALVE (O.S.)
$17.05¢8 527
1
#4
12251-MEN-A31
GASKET, CYLINDER HEAD
$44.84¢22 419
1
#5
16211-MEN-A50
INSULATOR, THROTTLE BODY
$18.76¢9 378
1
#6
16217-MCJ-000
BAND A, INSULATOR
$9.76¢4 882
1
#7
16218-MEN-A50
BAND, INSULATOR
$8.41¢4 203
1
#8
16222-MV4-300
NUT, SQUARE (5MM)
$2.54¢1 271
1
#9
19501-MEN-A30
JOINT, WATER
$24.53¢12 265
1
#10
31909-MEN-A31
SPARK PLUG (SILMAR9A9S) (NGK)
$19.65¢9 827
1
#10
31910-MEN-A31
SPARK PLUG (SILMAR10A9S) (NGK)
$19.65¢9 827
1
#11
37870-HN8-A61
SENSOR ASSY., WATER TEMPERATURE
$39.19¢19 596
1
#11
37870-HN8-A60
SENSOR ASSY., WATER TEMPERATURE
$39.19¢19 596
1
#12
90001-MEN-A30
BOLT, FLANGE (10X150)
$9.46¢4 732
1
#13
90003-MEN-A30
BOLT, FLANGE (6X55)
$3.36¢1 679
1
#14
90005-MCJ-000
BOLT, RECESSED (5X28)
$1.79¢897
1
#15
90005-MEN-A30
BOLT, FLANGE (6X45)
$2.38¢1 190
1
#16
90446-KRN-670
WASHER, CAMSHAFT THRUST
$3.13¢1 564
1
#17
90453-MK4-600
WASHER, PLAIN (10MM)
$4.25¢2 128
1
#18
91312-KE7-003
O-RING (19X3) (NOK)
$3.09¢1 547
1
#19
92900-08022-0B
BOLT, STUD (8X22)
$2.53¢1 265
1
#20
94301-08100
PIN, DOWEL (8X10)
$2.66¢1 328
1
#21
94301-12200
PIN, DOWEL (12X20)
$2.71¢1 357
1
#22
96001-06020-00
BOLT, FLANGE (6X20)
$1.47¢736
1
#23
96001-06090-00
BOLT, FLANGE (6X90)
$2.32¢1 162
1
