THROTTLE BODY

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

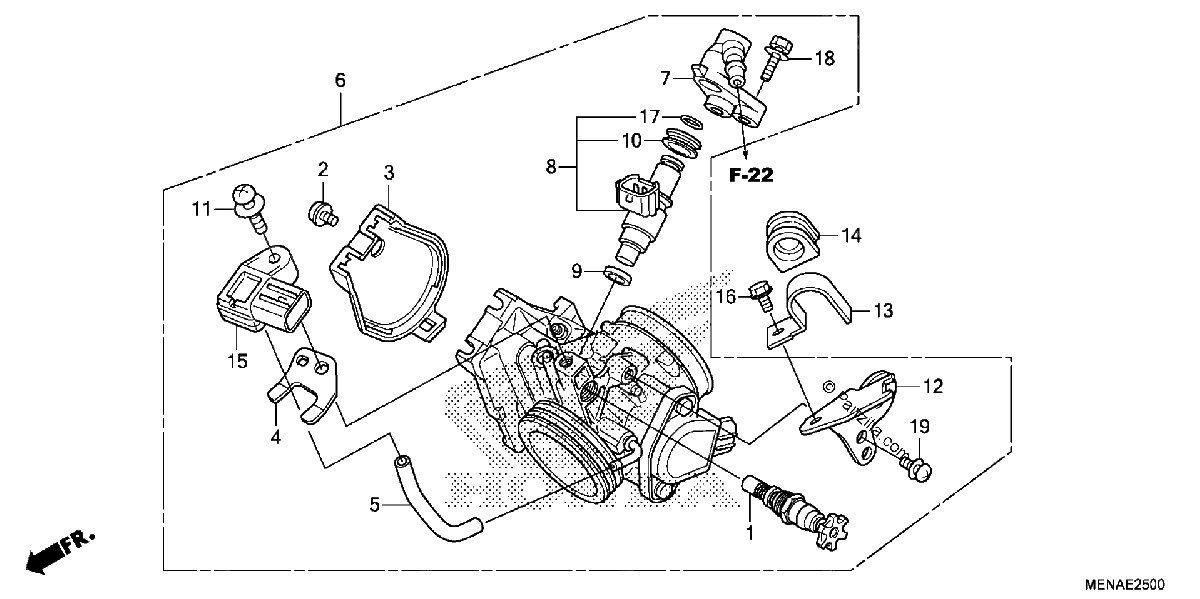

Diagrama de THROTTLE BODY

Repuestos

#1
16046-MEN-A41
VALVE, STARTER
$35.02¢17 513
1
#2
16080-HP1-601
BOLT, COVER
$4.94¢2 469
1
#3
16157-MEN-A31
COVER, BODY
$22.73¢11 363
1
#4
16191-MEN-A31
STAY, PB SENSOR
$11.06¢5 531
1
#5
16199-MEN-A51
TUBE
$11.86¢5 931
1
#6
16400-MEN-A71
BODY ASSY., THROTTLE (GQ27A A)
No Disponible
1
#7
16422-MEN-A31
JOINT, INJECTOR
$13.13¢6 563
1
#8
16450-MEN-A51
INJECTOR ASSY., FUEL
$166.94¢83 469
1
#9
16472-MCW-000
SEAL RING, INJECTOR
$3.08¢1 538
1
#10
16473-P7A-004
CUSHION RING, INJECTOR
$8.35¢4 175
1
#11
16542-MEN-A41
SCREW-WASHER (6X25)
$4.14¢2 069
1
#12
17567-MEN-A31
BASE, CLAMP
$7.01¢3 506
1
#13
17568-HP5-600
CLAMP, FUEL HOSE
$1.13¢563
1
#14
17579-HP5-600
RUBBER, FUEL FEED HOSE
$2.50¢1 250
1
#15
37830-MEL-003
SENSOR ASSY., MAP
$150.09¢75 044
1
#16
90002-892-000
BOLT, FLANGE (5X10)
$1.82¢913
1
#17
91301-P7A-004
O-RING (7.8X1.9)
$4.07¢2 037
1
#18
93401-05020-00
BOLT-WASHER (5X20)
$1.60¢800
1
#19
93892-05012-08
SCREW-WASHER (5X12)
$1.47¢737
1
#19
93892-05012-18
SCREW-WASHER (5X12)
$1.47¢737
1
