IGNITION SWITCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

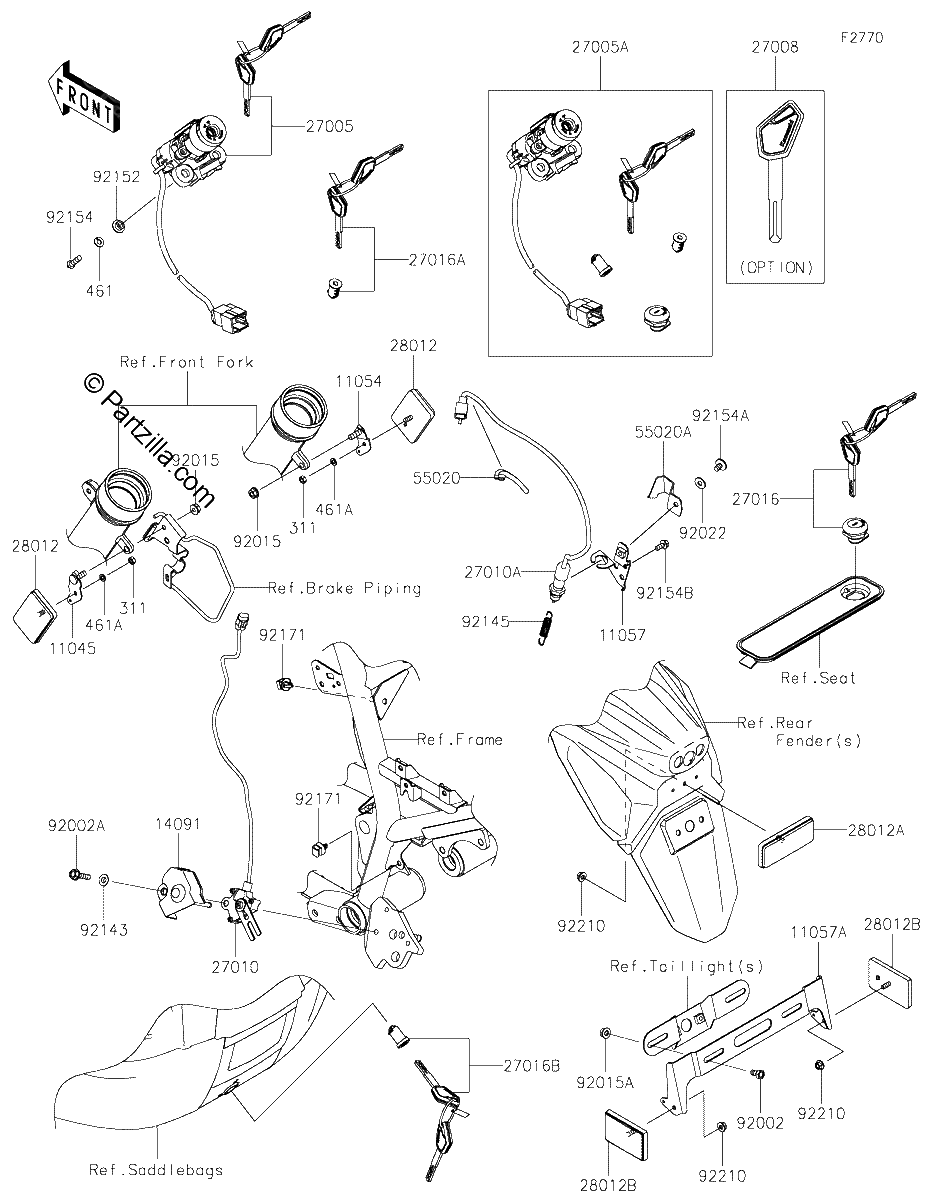

Diagrama de IGNITION SWITCH

Repuestos

#311
311AB0500
NUT HEX,5MM
$0.55¢276
1
#461
461DA0600
WASHER SPRING,6MM
$0.78¢391
1
#461A
461DB0500
WASHER-SPRING,5MM
$1.39¢696
1
#11045
11045-1354
BRACKET,REFLECTOR,FR
$8.14¢4 071
1
#11054
11054-1889
BRACKET,REFLECTOR,Front
$10.10¢5 048
1
#11057
11057-4313
BRACKET,REAR BRAKE
$2.46¢1 231
1
#11057A
11057-4368
BRACKET,REFLECTOR,RR
$13.45¢6 727
1
#14091
14091-1553
COVER,SIDE STAND SWITCH
$8.05¢4 025
1
#27005
27005-0702
SWITCH Assembly IGNITION
$209.12¢104 558
1
#27005A
27005-5191
SWITCH Assembly IGNITION
$586.01¢293 003
1
#27008
27008-0688
KEY-LOCK,BLANK
$30.23¢15 117
1
#27010
27010-0118
SWITCH,SIDE STAND
$82.86¢41 429
1
#27010A
27010-0969
SWITCH,REAR BRAKE
$51.75¢25 875
1
#27016B
27016-5422
LOCK-ASSY,PANNIER
$129.34¢64 670
1
#27016A
27016-5421
LOCK Assembly,TANK CAP
$142.66¢71 329
1
#27016
27016-5419
LOCK Assembly,TOOL COVER
$142.66¢71 329
1
#28012B
28012-1088
REFLECTOR REFLEX
$21.75¢10 873
1
#28012A
28012-1077
REFLECTOR-REFLEX
$23.44¢11 718
1
#28012
28012-1003
REFLECTOR REFLEX
$21.39¢10 695
1
#55020A
55020-2378
GUARD,REAR BRAKE
$8.87¢4 433
1
#55020
55020-2334
GUARD,50X30
$3.01¢1 507
1
#92002A
92002-1582
BOLT,FLANGED,6X25
$4.48¢2 242
1
#92002
92002-1132
BOLT,6X12
$1.37¢684
1
#92015A
92015-1367
NUT,FLANGED,6MM
$3.02¢1 512
1
#92015
92015-1233
NUT,FLANGED,6MM,BLACK
$5.01¢2 507
1
#92022
92022-2373
WASHER,6.2X15X1.2
$0.55¢276
1
#92143
92143-1331
COLLAR
$3.61¢1 805
1
#92145
92145-1896
SPRING,REAR BRAKE
$4.76¢2 380
1
#92152
92152-1535
COLLAR,6.15X10.15X6
$3.40¢1 702
1
#92154B
92154-2893
BOLT,FLANGED,5X12
$0.71¢357
1
#92154A
92154-2558
BOLT,SOCKET,6X10
$1.59¢793
1
#92154
92154-1858
BOLT,TORX,6X22
$3.61¢1 805
1
#92171
92171-0640
CLAMP
$3.78¢1 892
1
#92210
92210-0007
NUT,FLANGED,5MM
$2.28¢1 138
1
