FRONT BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

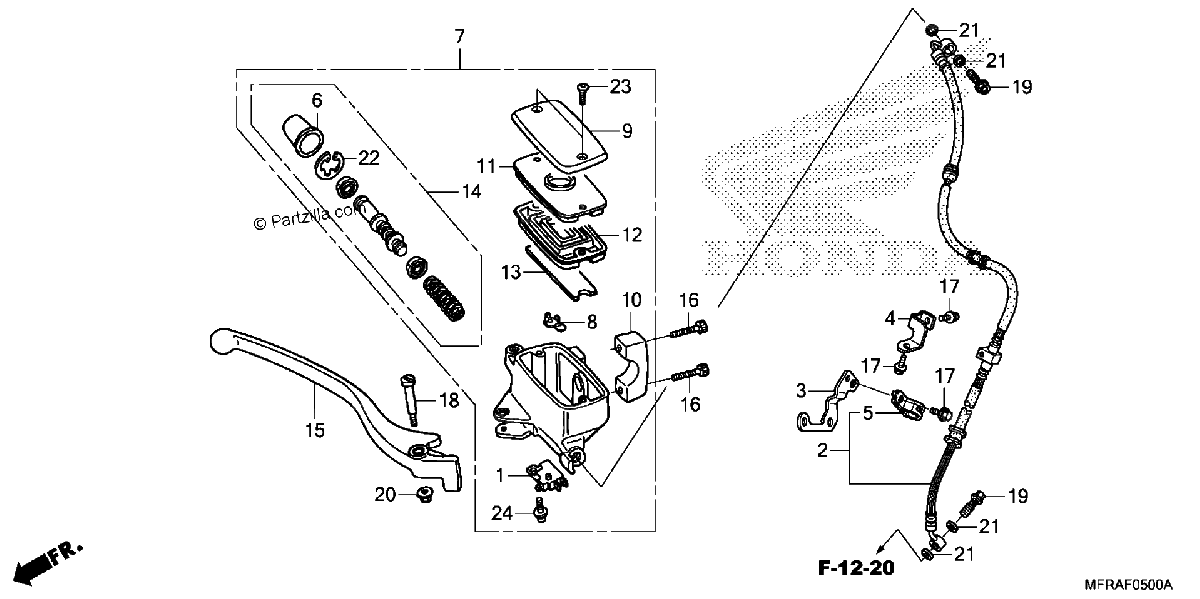

Diagrama de FRONT BRAKE MASTER CYLINDER 1

Repuestos

#1
35340-MM5-600
SWITCH Assembly., Front STOP
$25.14¢12 569
1
#2
45124-MFY-A01
HOSE A, FR. BRAKE
$140.10¢70 050
1
#3
45152-MFY-A00
BRACKET, L. FR. BRAKE HOSE
$10.06¢5 031
1
#4
45155-MFR-670
STAY, L. FR. BRAKE HOSE
$4.30¢2 150
1
#5
45181-MFR-670
CLAMP, FR. BRAKE HOSE
$5.06¢2 531
1
#6
45504-410-003
BOOT
$14.24¢7 119
1
#7
45510-MFR-306
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
$328.56¢164 281
1
#8
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#9
45513-MM5-016
CAP, MASTER CYLINDER (NISSIN)
$26.02¢13 013
1
#10
45517-MAV-751
HOLDER, MASTER CYLINDER (NISSIN)
$24.05¢12 025
1
#11
45518-MM5-006
PLATE, DIAPHRAGM
$12.36¢6 181
1
#12
45520-MM5-006
DIAPHRAGM
$17.68¢8 838
1
#13
45523-MN5-006
FLOAT, FR. MASTER CYLINDER (NISSIN)
$5.45¢2 725
1
#14
45530-471-831
MASTER CYLINDER SET
$46.40¢23 200
1
#15
53175-MR5-305
LEVER, R. HANDLE (COO)
$19.06¢9 531
1
#16
90101-MCL-000
BOLT, SOCKET (6X22)
$1.86¢931
1
#17
90106-MBZ-G00
BOLT, FLANGE (6X10)
$1.74¢869
1
#18
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
1
#19
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#20
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#21
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#22
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#23
93600-04012-0G
SCREW, FLAT (4X12)
$1.16¢581
1
#23
93600-04012-1G
SCREW, FLAT (4X12)
$1.16¢581
1
#24
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#24
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
