STEP 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

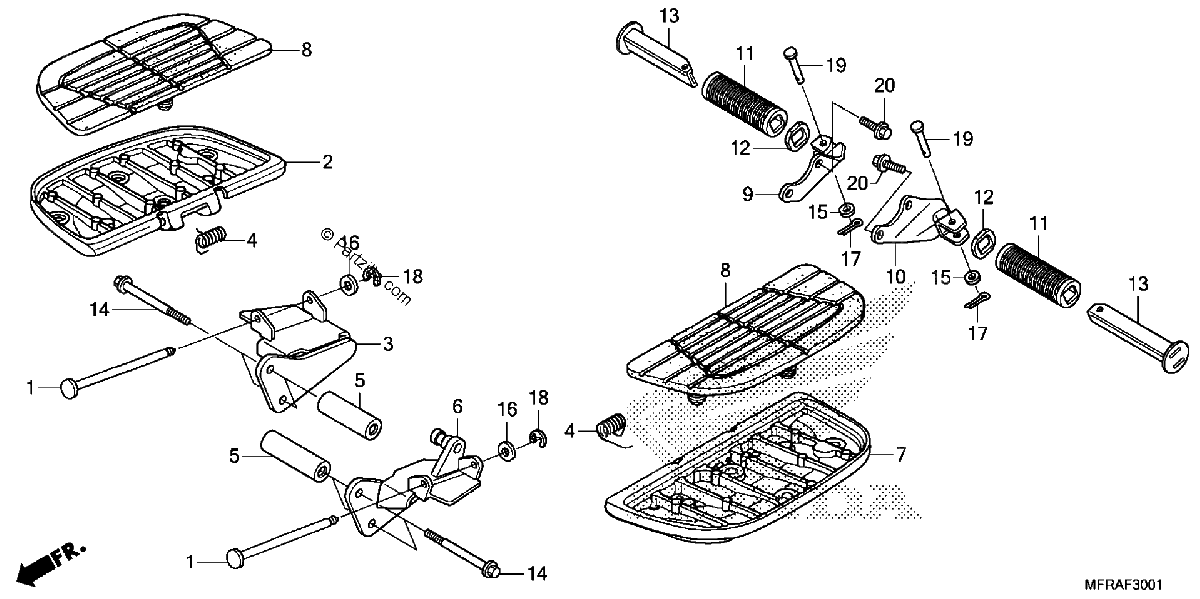

Diagrama de STEP 2

Repuestos

#1
50603-MBH-000
PIN, STEP JOINT
$8.60¢4 301
1
#2
50612-MFY-305
BOARD, R. STEP (COO)
$135.04¢67 522
1
#3
50615-MFY-A20
BRACKET, R. STEP
$114.14¢57 069
1
#4
50617-MEA-670
SPRING, STEP RETURN
$12.03¢6 015
1
#5
50619-MFY-A20
COLLAR, STEP BRACKET (T)
$11.18¢5 589
1
#6
50625-MFY-A20
BRACKET, L. STEP
$132.80¢66 401
1
#7
50642-MFY-305
BOARD, L. STEP (COO)
$135.04¢67 522
1
#8
50661-MFY-305
RUBBER, MAIN STEP (COO)
$71.94¢35 972
1
#9
50680-MFY-A00
BRACKET, R. PILLION STEP
$90.77¢45 385
1
#10
50685-MFY-A00
BRACKET, L. PILLION STEP
$90.77¢45 385
1
#11
50710-MFR-305
RUBBER, PILLION STEP (COO)
$30.50¢15 249
1
#12
50712-MFE-670
WASHER, PILLION STEP
$3.66¢1 829
1
#13
50715-413-000
BAR, PILLION STEP
$19.01¢9 505
1
#13
50715-413-305
BAR, PILLION STEP (COO)
$19.01¢9 505
1
#14
90127-126-900
BOLT, SPECIAL FLANGE (8X90)
$7.37¢3 686
1
#15
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#15
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#15
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#16
94102-08000
WASHER, PLAIN (8MM)
$1.06¢529
1
#17
94201-16150
PIN, SPLIT (1.6X15)
$1.23¢615
1
#17
94201-16250
PIN, COTTER (1.6X25)
$1.23¢615
1
#18
94540-07029
E-RING (7MM)
$4.36¢2 179
1
#19
95015-81000
PIN A, PILLION STEP
$2.62¢1 311
1
#20
95701-08020-07
BOLT, FLANGE (8X20)
$2.21¢1 104
1
