HEADLIGHT 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

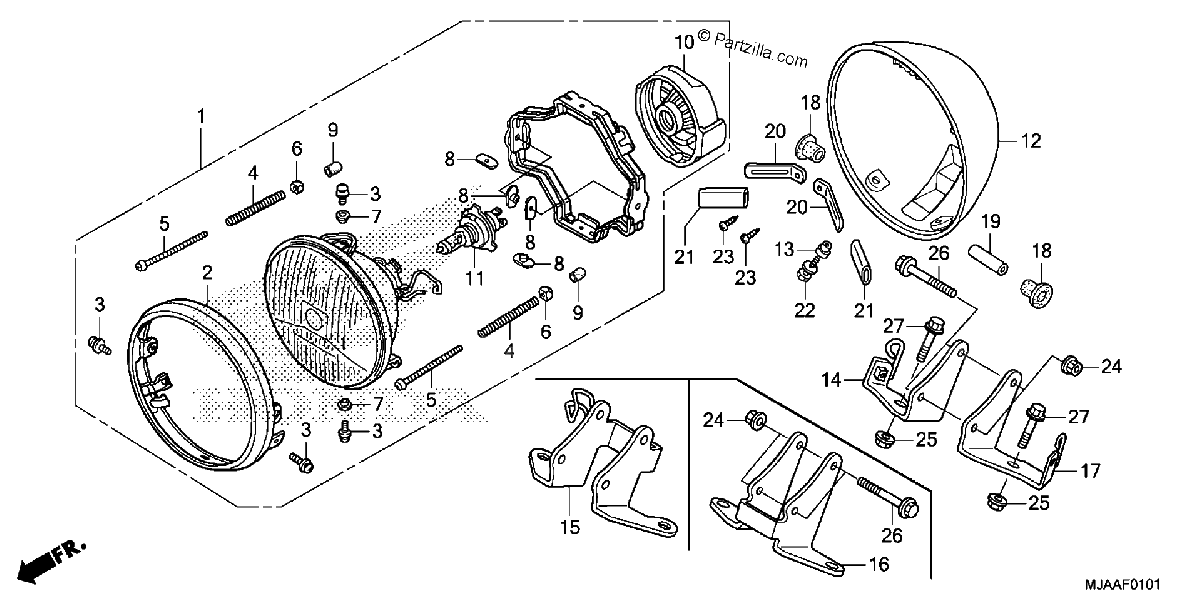

Diagrama de HEADLIGHT 2

Repuestos

#1
33100-MFE-305
HEADLIGHT ASSY. (12V 60/55W) (COO)
$344.59¢172 293
1
#2
33101-MAA-A31
RIM, HEADLIGHT
$31.12¢15 559
1
#3
33104-MAH-671
SCREW-WASHER
$4.47¢2 237
1
#4
33108-MM2-003
SPRING, BEAM ADJUSTING
$3.86¢1 932
1
#5
33114-GE1-670
SCREW, BEAM ADJUSTING
$5.88¢2 938
1
#6
33118-438-841
NUT, BEAM ADJUSTING
$2.64¢1 322
1
#7
33127-MAA-A31
SPACER
$2.56¢1 282
1
#8
33128-MAA-A31
NUT, UNIT HOLDER
$2.66¢1 328
1
#9
33136-426-830
COVER, SCREW
$2.22¢1 110
1
#10
33180-MR7-003
COVER, RUBBER
$15.20¢7 602
1
#11
34901-MC7-602
BULB, HEADLIGHT (12V 60/55W) (STANLEY)
$39.72¢19 861
1
#12
61301-MN0-003
CASE, HEADLIGHT
$120.55¢60 277
1
#13
61304-KR3-980
COLLAR, HEADLIGHT SETTING
$5.76¢2 881
1
#14
61311-MFE-A50
STAY, Right HEADLIGHT
$36.89¢18 446
1
#17
61312-MFE-A50
STAY, L. HEADLIGHT
$36.89¢18 446
1
#18
61315-MK7-000
RUBBER, HEADLIGHT MOUNTING
$3.36¢1 679
1
#19
61316-MK7-000
COLLAR, HEADLIGHT STAY
$3.36¢1 679
1
#20
91416-PA1-000
CLIP, WIRE HARNESS (4X100)
$6.58¢3 289
1
#21
91451-ZD8-K61
TUBE, CORD
$1.35¢673
1
#22
93402-05020-00
BOLT-WASHER (5X20)
$1.23¢615
1
#23
93913-24110
SCREW, TAPPING (4X10) (PO)
$1.07¢535
1
#24
94050-06070
NUT, FLANGE (6MM)
$1.71¢857
1
#25
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#26
95701-06050-07
BOLT, FLANGE (6X50)
$1.64¢822
1
#27
95801-08040-07
BOLT, FLANGE (8X40)
$1.71¢857
1
