STEP 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

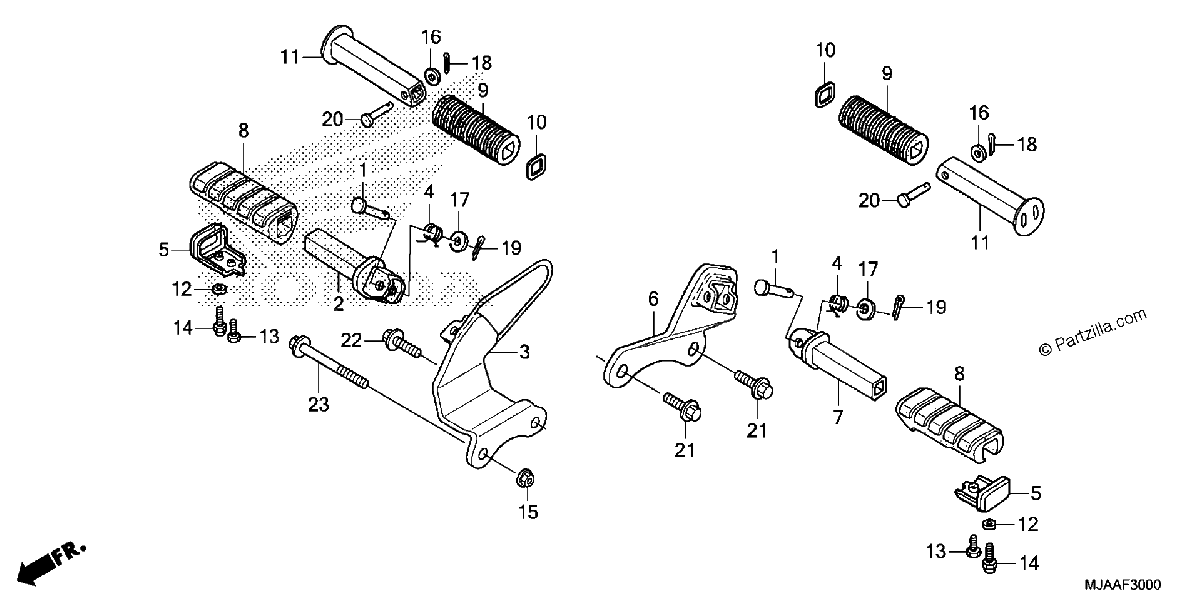

Diagrama de STEP 1

Repuestos

#1
50603-033-010
PIN, STEP BAR JOINT
$3.58¢1 788
1
#2
50612-MEG-305
BAR, Right STEP (COO)
$18.85¢9 424
1
#3
50615-MEG-000
BRACKET, R. MAIN STEP
$79.41¢39 704
1
#4
50617-MB1-700
SPRING, STEP RETURN
$6.47¢3 237
1
#5
50619-MN0-000
STOPPER, STEP RUBBER
$18.56¢9 281
1
#6
50625-MEG-000
BRACKET, L. MAIN STEP
$57.17¢28 583
1
#7
50642-MEG-305
BAR, L. STEP (COO)
$17.86¢8 930
1
#8
50661-MEG-305
RUBBER, MAIN STEP (COO)
$6.80¢3 398
1
#9
50710-MFR-305
RUBBER, PILLION STEP (COO)
$30.50¢15 249
1
#10
50712-MFE-670
WASHER, PILLION STEP
$3.66¢1 829
1
#11
50715-413-305
BAR, PILLION STEP (COO)
$19.01¢9 505
1
#12
80104-065-000
COLLAR, TAILLIGHT
$3.36¢1 679
1
#13
92101-06012-0A
BOLT, HEX. (6X12)
$1.68¢839
1
#14
92501-06016-0A
BOLT, CAP (6X16)
$3.36¢1 679
1
#15
90303-428-900
NUT, FLANGE (10MM)
$3.74¢1 869
1
#15
94050-10070
NUT, FLANGE (10MM)
$3.74¢1 869
1
#16
94101-06000
WASHER, PLAIN (6MM)
$0.77¢385
1
#16
94101-06080
WASHER, PLAIN (6MM)
$0.77¢385
1
#16
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
#17
94101-08000
WASHER, PLAIN (8MM)
$0.98¢489
1
#18
94201-16120
PIN, SPLIT (1.6X12)
$1.23¢615
1
#19
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#20
95015-81000
PIN A, PILLION STEP
$2.62¢1 311
1
#21
95701-10025-07
BOLT, FLANGE (10X25)
$1.68¢839
1
#22
95701-10032-07
BOLT, FLANGE (10X32)
$2.09¢1 047
1
#23
95701-10095-07
BOLT, FLANGE (10X95)
$3.09¢1 547
1
