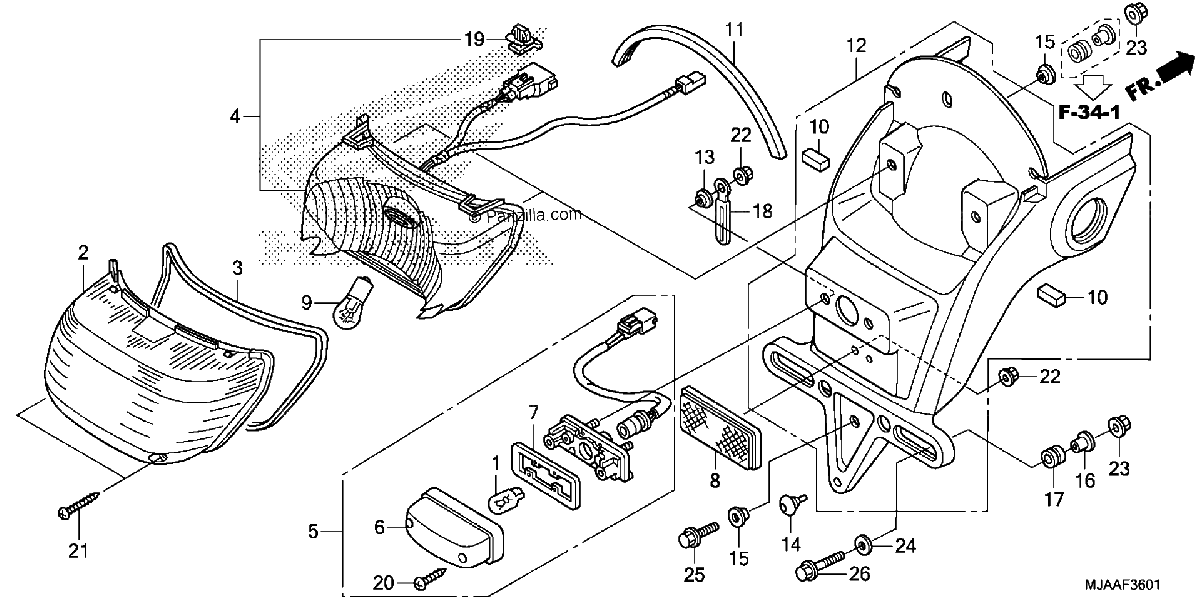

TAILLIGHT 2
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
BULB (12V 5W) (STANLEY)
$4.24¢2 122
#2
LENS, TAILLIGHT (COO)
$27.12¢13 558
#3
GASKET, TAILLIGHT
$5.19¢2 593
#4
BASE, TAILLIGHT
$71.07¢35 535
#5
LIGHT ASSY., LICENSE (12V 5W) (COO)
$92.71¢46 357
#6
COVER, LICENSE
$22.64¢11 322
#7
GASKET, LENS
$11.21¢5 606
#8
REFLECTOR, REFLEX (STANLEY)
$16.31¢8 153
#9
BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY)
$10.09¢5 043
#10
RUBBER, TAILLIGHT
$1.64¢822
#11
MOUL, RR. FENDER COVER
$10.06¢5 031
#12
FENDER ASSY. A, RR.
$42.53¢21 263
#13
COLLAR, RR. FENDER
$5.07¢2 536
#14
PLUG, RR. COWL
$3.13¢1 564
#15
WASHER (6X20)
$6.72¢3 358
#16
COLLAR, RR. FENDER
$6.41¢3 203
#17
RUBBER, CONTROL BOX
$4.50¢2 248
#18
CLIP (2X60)
$10.83¢5 416
#19
CLIP, CONNECTOR (BLACK)
$4.09¢2 047
#20
SCREW, TAPPING (4X16)
$0.98¢489
#21
SCREW, TAPPING (4X30)
$2.62¢1 311
#22
NUT, FLANGE (5MM)
$1.54¢771
#23
NUT, FLANGE (6MM)
$0.74¢368
#24
WASHER, PLAIN (6MM)
$1.17¢586
#25
BOLT, FLANGE (6X14)
$1.13¢564
#26
BOLT, FLANGE (6X22)
$2.13¢1 064
