FRONT FORK 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

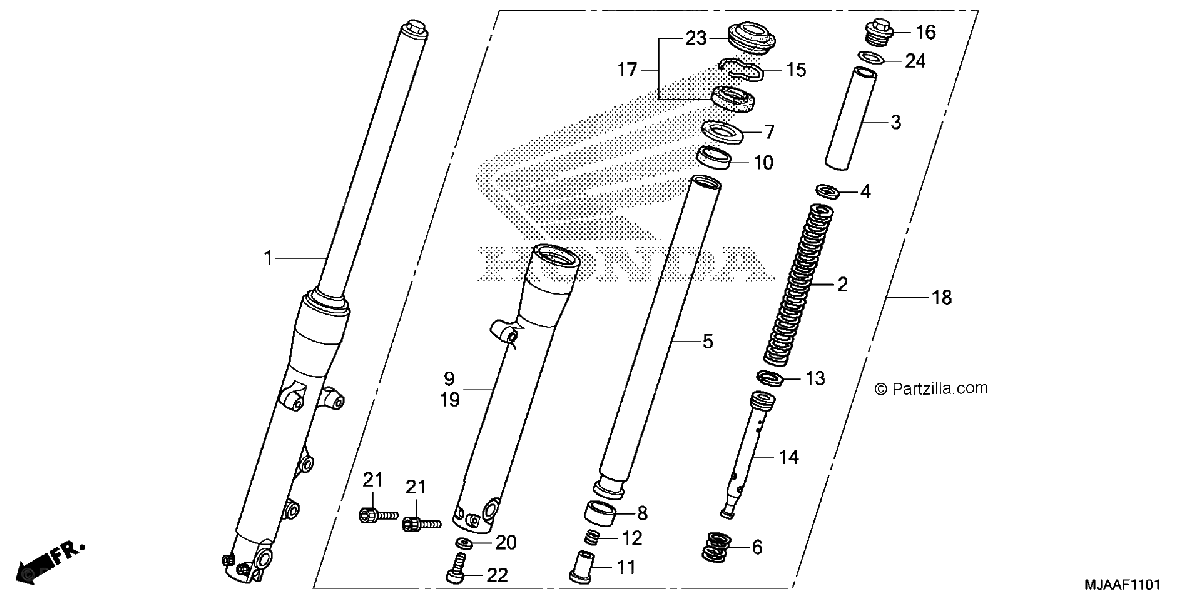

Diagrama de FRONT FORK 2

Repuestos

#1
51400-MFE-305
FORK ASSY., R. FR. (COO) (KAYABA)
$803.93¢401 965
1
#2
51401-MFE-671
SPRING, FR. FORK
$89.35¢44 677
1
#3
51402-MEG-003
SPACER, SPRING
$12.44¢6 222
1
#4
51404-MBA-003
WASHER
$6.81¢3 404
1
#5
51410-MFE-671
PIPE, Front FORK
$386.02¢193 010
1
#6
51411-MBA-003
SPRING, FR. REBOUND
$7.99¢3 996
1
#7
51412-KA4-004
WASHER
$7.53¢3 766
1
#8
51415-MEG-003
BUSH, SLIDER
$8.50¢4 249
1
#9
51420-MFE-671
CASE, Right. (LOWER)
$430.84¢215 418
1
#10
51424-MCT-003
BUSH, GUIDE
$7.81¢3 904
1
#11
51431-MBA-003
PIECE, OIL LOCK
$18.15¢9 074
1
#12
51433-MBA-J50
SPRING, OIL LOCK
$3.76¢1 880
1
#13
51437-MCT-003
RING, PISTON
$5.84¢2 921
1
#14
51440-MEG-003
PIPE, SEAT
$50.11¢25 053
1
#15
51447-KA4-004
RING, SNAP
$4.71¢2 357
1
#16
51450-MEG-901
BOLT, FR. FORK
$29.97¢14 984
1
#17
51490-MCT-003
SEAL SET, Front FORK
$19.10¢9 551
1
#18
51500-MFE-305
FORK ASSY., L. FR. (COO) (KAYABA)
$803.93¢401 965
1
#19
51520-MFE-671
CASE, Left (LOWER)
$450.20¢225 101
1
#20
52442-KA3-731
WASHER, OIL BOLT
$2.77¢1 386
1
#21
90109-MCR-D00
BOLT, SOCKET (8X35)
$3.36¢1 679
1
#22
90116-KK0-004
BOLT, SOCKET (10X25)
$6.64¢3 318
1
#23
91254-MCK-A01
DUST SEAL
$13.10¢6 549
1
#24
91356-KT1-671
O-RING (31.7X3.5)
$3.50¢1 748
1
