HANDLE LEVER CABLE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

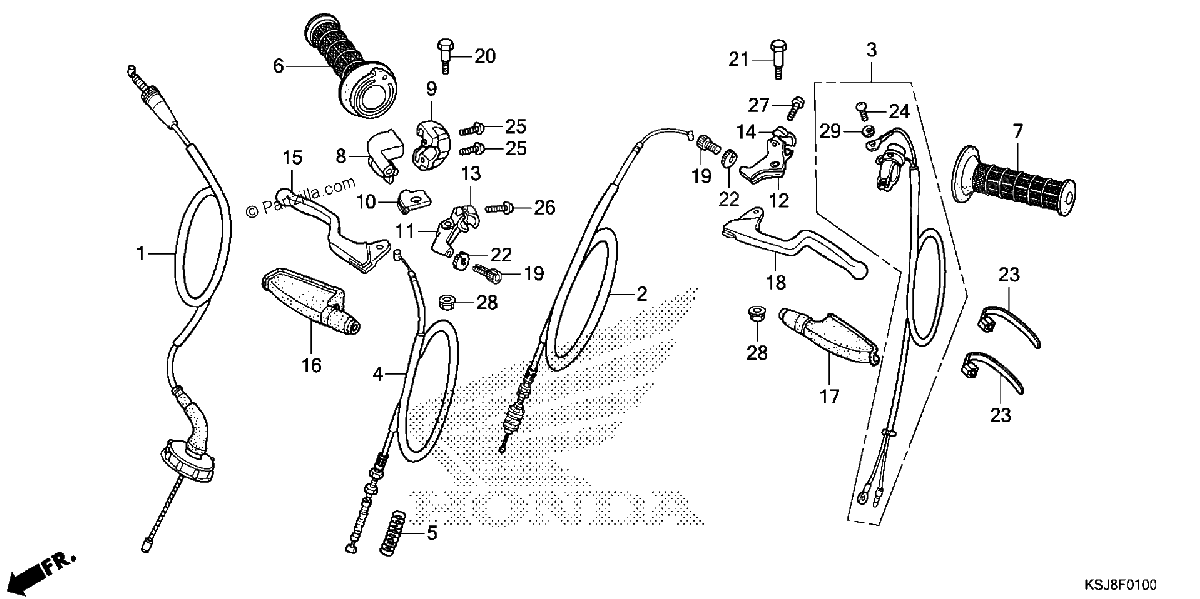

Diagrama de HANDLE LEVER CABLE

Repuestos

#1
17920-GN1-A80
CABLE SET, THROTTLE
$33.49¢16 744
1
#2
22870-GN1-A50
CABLE, CLUTCH
$27.42¢13 708
1
#3
35130-KN4-852
SWITCH ASSY., ENGINE STOP
$34.37¢17 187
1
#4
45450-GN1-A21
CABLE, FR. BRAKE
$27.95¢13 973
1
#5
45454-KN4-A60
SPRING, BRAKE CABLE
$5.16¢2 582
1
#6
53140-GFW-305
GRIP, THROTTLE (COO)
$35.58¢17 790
1
#7
53166-GFW-305
GRIP, L. HANDLE
$10.15¢5 077
1
#8
53167-KA2-010
HOUSING, THROTTLE (UPPER)
$22.31¢11 155
1
#9
53168-KA2-010
HOUSING, THROTTLE (LOWER)
$20.85¢10 425
1
#10
53169-KA2-000
SLIDER, THROTTLE
$5.43¢2 714
1
#11
53171-KT0-840
BRACKET, R. HANDLE LEVER
$34.72¢17 359
1
#12
53172-KT0-840
BRACKET, L. HANDLE LEVER
$34.09¢17 043
1
#13
53173-KT0-840
HOLDER, LEVER BRACKET
$15.70¢7 849
1
#14
53173-958-000
HOLDER, LEVER BRACKET
$11.30¢5 652
1
#15
53175-GFW-305
LEVER, R. HANDLEBAR (COO)
$47.94¢23 972
1
#16
53176-428-010
COVER, R. HANDLE LEVER
$10.80¢5 399
1
#17
53177-430-000
COVER, L. HANDLE LEVER
$11.75¢5 877
1
#18
53178-GFW-305
LEVER, L. HANDLEBAR (COO)
$43.76¢21 879
1
#19
53192-268-000
BOLT, WIRE ADJUSTING
$7.29¢3 645
1
#20
90113-KA3-710
BOLT, HANDLE LEVER PIVOT
$4.36¢2 179
1
#21
90113-429-770
BOLT, HANDLE LEVER PIVOT
$6.64¢3 318
1
#22
90321-315-670
NUT, FIXING
$8.15¢4 077
1
#23
90650-KW3-000
BAND, WIRE
$4.99¢2 496
1
#24
93500-04012-0A
SCREW, PAN (4X12)
$0.98¢489
1
#24
93500-04012-1A
SCREW, PAN (4X12)
$0.98¢489
1
#25
93500-05016-0G
SCREW, PAN (5X16)
$1.07¢535
1
#26
93500-05018-0A
SCREW, PAN (5X18)
$0.98¢489
1
#27
93500-05020-0A
SCREW, PAN (5X20)
$0.93¢466
1
#28
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#29
94111-04000
WASHER, SPRING (4MM)
$1.26¢633
1
