FRAME 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

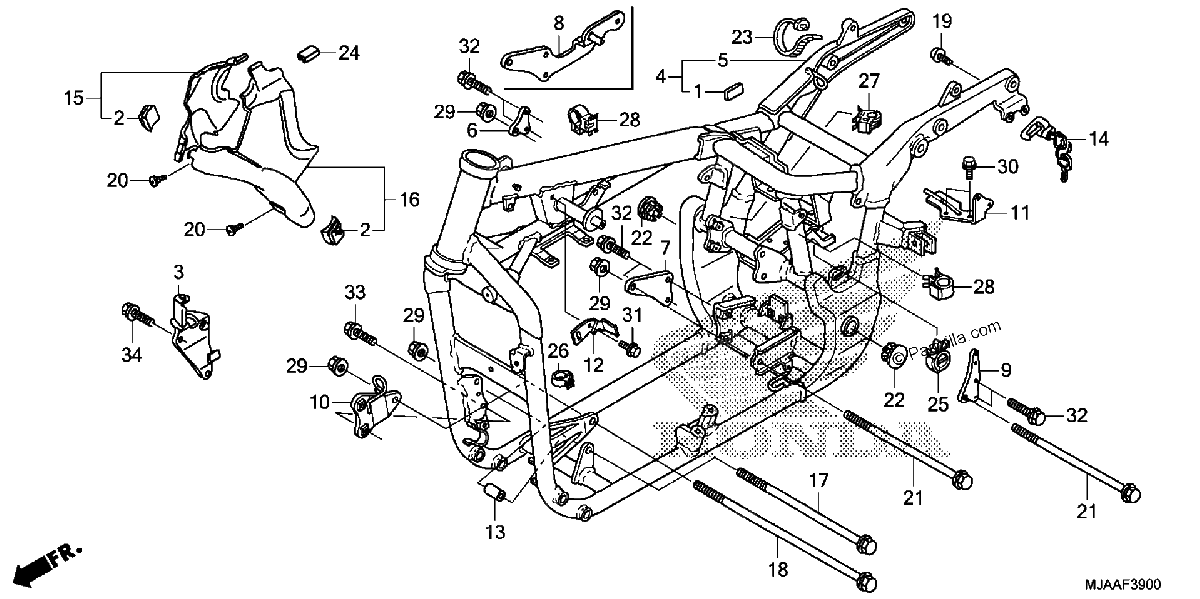

Diagrama de FRAME 1

Repuestos

#1
17503-MY1-300
FILM, PROTECTOR
$4.07¢2 035
1
#001
17503-MY1-300
FILM, PROTECTOR
$4.07¢2 035
1
#2
33740-MEG-671
REFLECTOR, Front SIDE REFLEX
$15.65¢7 826
1
#002
33740-MEG-671
REFLECTOR, Front SIDE REFLEX
$15.65¢7 826
1
#003
46505-MEG-000
BRACKET, RR. BRAKE PEDAL
$51.67¢25 835
1
#3
46505-MEG-000
BRACKET, RR. BRAKE PEDAL
$51.67¢25 835
1
#004
50010-MEG-A60
FRAME SET
$3097.63¢1 548 814
1
#4
50010-MEG-A60
FRAME SET
$3097.63¢1 548 814
1
#006
50171-MEG-000
BRACKET, R. RR. ENGINE HANGER (UPPER)
$5.98¢2 990
1
#6
50171-MEG-000
BRACKET, R. RR. ENGINE HANGER (UPPER)
$5.98¢2 990
1
#8
50172-MEG-L90
BRACKET, Right Rear ENGINE HANGER (LOWER)
$55.03¢27 514
1
#008
50172-MEG-L90
BRACKET, Right Rear ENGINE HANGER (LOWER)
$55.03¢27 514
1
#009
50173-MEG-670
BRACKET, L. RR. ENGINE HANGER (UPPER)
$7.58¢3 789
1
#9
50173-MEG-670
BRACKET, L. RR. ENGINE HANGER (UPPER)
$7.58¢3 789
1
#010
50176-MFE-671
PLATE, FR. ENGINE HANGER (UPPER)
$23.85¢11 925
1
#10
50176-MFE-671
PLATE, FR. ENGINE HANGER (UPPER)
$23.85¢11 925
1
#11
50182-MEG-L90
STAY, P C V.
$10.14¢5 071
1
#011
50182-MEG-L90
STAY, P C V.
$10.14¢5 071
1
#13
50363-KT7-000
COLLAR, ENGINE HANGER
$16.87¢8 435
1
#013
50363-KT7-000
COLLAR, ENGINE HANGER
$16.87¢8 435
1
#014
50710-GCN-003
HOLDER ASSY., HELMET (HONDALOCK)
$30.84¢15 421
1
#14
50710-GCN-003
HOLDER ASSY., HELMET (HONDALOCK)
$30.84¢15 421
1
#14
50710-GCN-305
HOLDER ASSY., HELMET (COO)
$30.84¢15 421
1
#015
63550-MEG-A60
COVER, R. FR. SIDE
$22.85¢11 425
1
#15
63550-MEG-A60
COVER, R. FR. SIDE
$22.85¢11 425
1
#016
63650-MEG-A60
COVER, L. FR. SIDE
$26.89¢13 443
1
#16
63650-MEG-A60
COVER, L. FR. SIDE
$26.89¢13 443
1
#017
90103-GC2-920
BOLT, ENGINE HANGER
$14.06¢7 032
1
#17
90103-GC2-920
BOLT, ENGINE HANGER
$14.06¢7 032
1
#18
90104-MBS-000
BOLT, FLANGE (10X208)
$11.58¢5 790
1
#018
90104-MBS-000
BOLT, FLANGE (10X208)
$11.58¢5 790
1
#19
90106-MAV-000
SCREW, PAN
$2.59¢1 294
1
#019
90106-MAV-000
SCREW, PAN
$2.59¢1 294
1
#020
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#20
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#021
90154-KE7-000
BOLT, UBS (10X141)
$6.43¢3 214
1
#21
90154-KE7-000
BOLT, UBS (10X141)
$6.43¢3 214
1
#22
90312-MB0-700
CAP, Right LOCK NUT
$19.45¢9 723
1
#022
90312-MB0-700
CAP, Right LOCK NUT
$19.45¢9 723
1
#24
90655-MEG-000
CLAMP, COVER
$1.79¢897
1
#024
90655-MEG-000
CLAMP, COVER
$1.79¢897
1
#025
90684-ZA0-601
CLIP, HARNESS
$3.36¢1 679
1
#25
90684-ZA0-601
CLIP, HARNESS
$3.36¢1 679
1
#026
90690-GHB-631
CLIP, CABLE (8MM)
$2.59¢1 294
1
#26
90690-GHB-631
CLIP, CABLE (8MM)
$2.59¢1 294
1
#28
90690-GHB-671
CLIP, CABLE (25MM)
$2.59¢1 294
1
#028
90690-GHB-671
CLIP, CABLE (25MM)
$2.59¢1 294
1
#29
90303-428-900
NUT, FLANGE (10MM)
$3.74¢1 869
1
#029
90303-428-900
NUT, FLANGE (10MM)
$3.74¢1 869
1
#029
94050-10070
NUT, FLANGE (10MM)
$3.74¢1 869
1
#29
94050-10070
NUT, FLANGE (10MM)
$3.74¢1 869
1
#030
95701-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#30
95701-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#032
95701-08016-07
BOLT, FLANGE (8X16)
$1.98¢989
1
#32
95701-08016-07
BOLT, FLANGE (8X16)
$1.98¢989
1
#033
95701-08020-07
BOLT, FLANGE (8X20)
$2.21¢1 104
1
#33
95701-08020-07
BOLT, FLANGE (8X20)
$2.21¢1 104
1
#34
95701-10025-07
BOLT, FLANGE (10X25)
$1.68¢839
1
#034
95701-10025-07
BOLT, FLANGE (10X25)
$1.68¢839
