EXHAUST MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

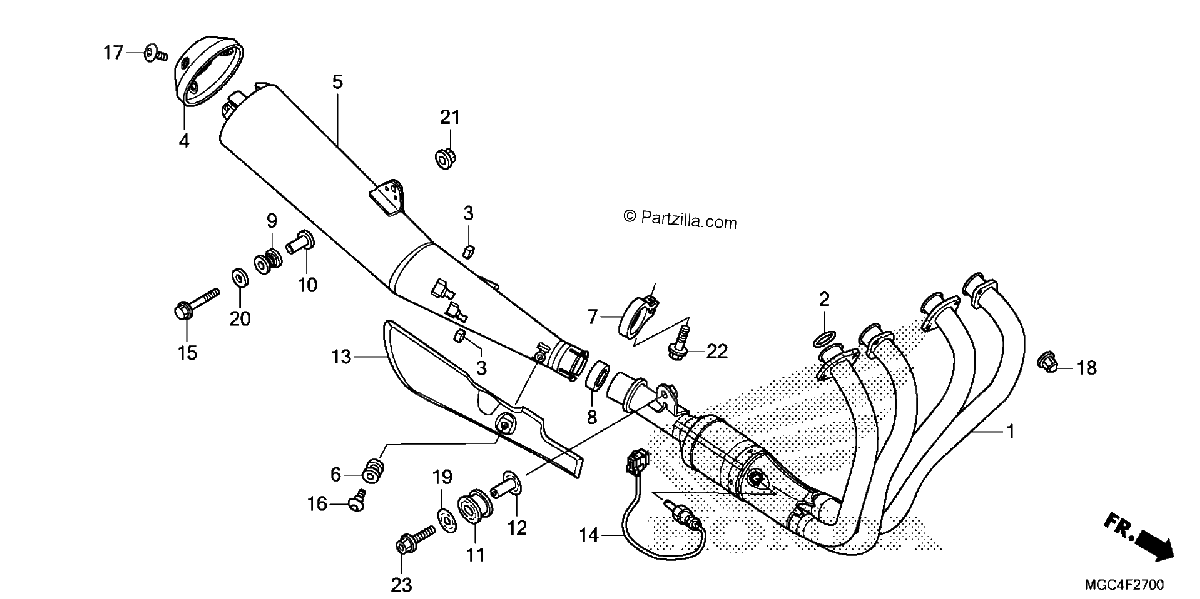

Diagrama de EXHAUST MUFFLER

Repuestos

#1
18150-MGC-D30
PIPE, EX.
$3022.83¢1 511 413
1
#2
18291-MM5-860
GASKET, EX. PIPE
$6.26¢3 131
1
#3
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.64¢1 319
1
#4
18305-MGC-305
COVER, TAIL (COO)
$110.49¢55 244
1
#5
18310-MGC-305
MUFFLER (COO)
$1596.95¢798 475
1
#6
18357-MCG-000
RUBBER, PROTECTOR MOUNTING
$3.65¢1 825
1
#7
18376-413-000
BAND, L. RR. MUFFLER
$42.63¢21 313
1
#8
18392-MG7-750
GASKET, MUFFLER
$15.86¢7 931
1
#9
18421-MBT-D21
RUBBER, MUFFLER MOUNTING
$18.27¢9 138
1
#10
18422-MA6-000
COLLAR, MUFFLER MOUNTING
$9.60¢4 800
1
#11
18422-MFJ-D10
RUBBER, EX. PIPE MOUNTING
$23.79¢11 894
1
#12
18423-MFJ-D00
COLLAR, EX. PIPE MOUNTING
$8.13¢4 063
1
#13
18425-MGC-000
COVER, MUFFLER
$268.56¢134 281
1
#14
36531-MGC-003
SENSOR, OXYGEN
$360.64¢180 319
1
#15
90109-MR7-000
BOLT, FLANGE (8X45)
$5.99¢2 994
1
#16
90114-MCJ-000
SCREW, SPECIAL (6X14)
$3.24¢1 619
1
#17
90114-MFP-N00
BOLT, SPECIAL (5X8)
$6.13¢3 063
1
#18
90304-ME1-670
NUT, CAP (8MM)
$7.21¢3 606
1
#19
90501-MFJ-D00
WASHER (8.5X38)
$2.76¢1 381
1
#20
90504-MA6-000
WASHER (8.5X26)
$2.24¢1 119
1
#21
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#22
95701-08038-00
BOLT, FLANGE (8X38)
$1.95¢975
1
#23
96300-08040-00
BOLT, FLANGE (8X40)
$2.75¢1 375
1
