REAR BRAKE MASTER CYLINDER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

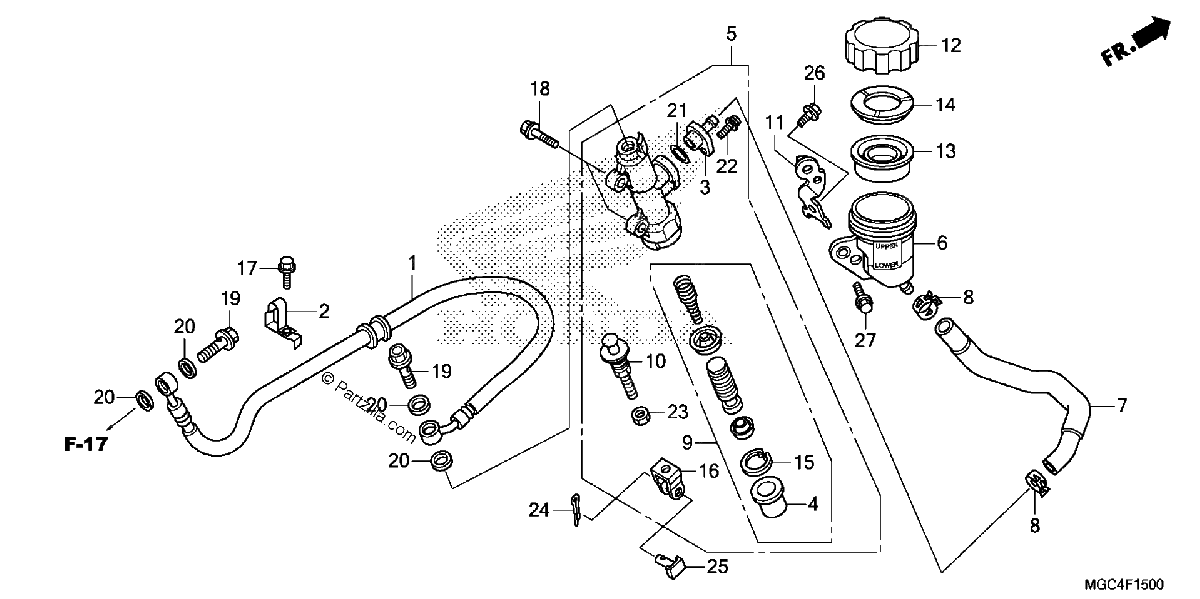

Diagrama de REAR BRAKE MASTER CYLINDER 1

Repuestos

#1
43310-MGC-003
HOSE, RR. BRAKE
$74.91¢37 456
1
#2
43315-MGC-000
CLAMP, RR. BRAKE HOSE
$13.15¢6 575
1
#3
43503-HB5-006
CONNECTOR
$12.81¢6 406
1
#4
43504-MB2-006
BOOT
$11.74¢5 869
1
#5
43510-MGC-006
MASTER CYLINDER SUB-ASSY., RR. (NISSIN)
$284.39¢142 194
1
#6
43511-MGE-016
CUP, MASTER CYLINDER OIL
$29.00¢14 500
1
#7
43512-MGC-006
HOSE, RR. BRAKE MASTER CYLINDER
$42.41¢21 206
1
#8
43514-445-771
CLAMP, MASTER CYLINDER OIL HOSE
$16.57¢8 288
1
#9
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$53.99¢26 994
1
#10
43530-KV3-701
ROD, PUSH
$25.54¢12 769
1
#11
43555-MGC-000
STAY, OIL CUP
$7.99¢3 994
1
#12
45513-MEL-D21
CAP, OIL CUP
$21.39¢10 694
1
#13
45520-300-000
DIAPHRAGM
$10.59¢5 294
1
#14
45521-MJ6-006
PLATE, DIAPHRAGM
$4.91¢2 456
1
#15
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#16
46504-MAH-671
JOINT, BRAKE ROD
$18.40¢9 200
1
#17
90112-MEL-000
BOLT, FLANGE (6X18)
$2.27¢1 138
1
#18
90131-124-000
BOLT, FLANGE (6X25)
$0.96¢481
1
#19
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#20
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#21
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#22
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#22
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#23
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#24
94201-20120
PIN, SPLIT (2.0X12)
$1.27¢638
1
#25
95015-54000
PIN D, JOINT
$5.15¢2 575
1
#26
95701-06012-00
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#27
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
