SWINGARM 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

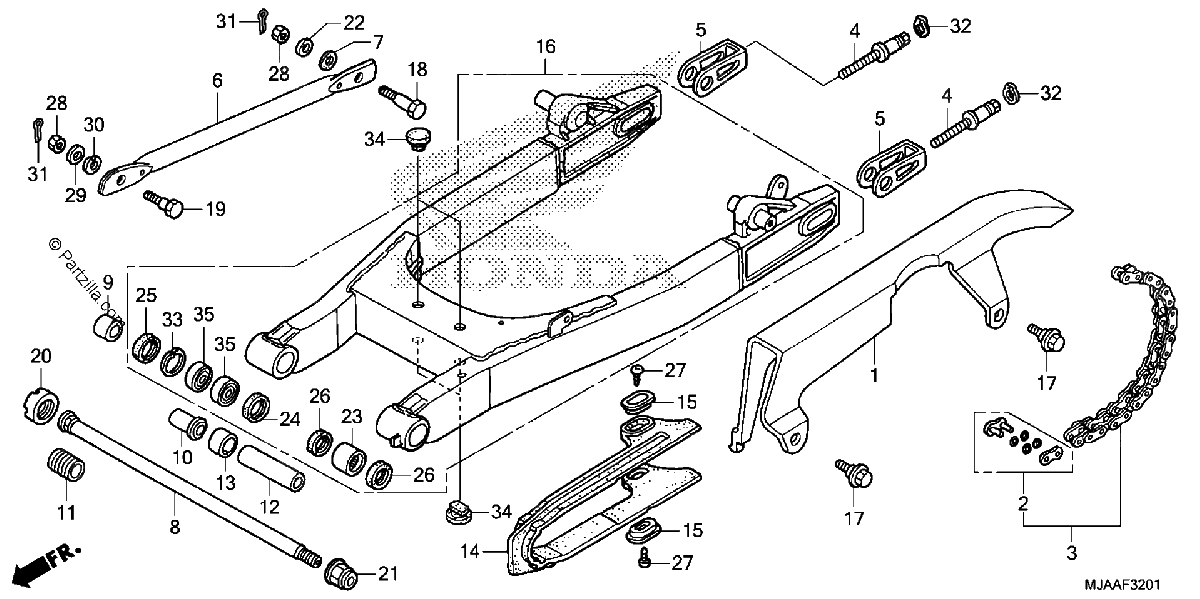

Diagrama de SWINGARM 2

Repuestos

#1
40510-MBV-000
CASE, DRIVE CHAIN
$88.38¢44 188
1
#2
40535-MY5-306
MASTER LINK SET (RK EXCEL)
$9.81¢4 906
1
#2
40545-MY5-G31
MASTER LINK (DAIDO)
$11.19¢5 594
1
#3
40540-MY5-306
CHAIN, DRIVE (RK EXCEL) (RK525SMOZ5-120LJ FZ)
$209.90¢104 950
1
#3
40540-MY5-G31
CHAIN, DRIVE (DID525V8-120ZB) (DAIDO)
$284.86¢142 431
1
#4
40542-KV3-700
BOLT, CHAIN ADJUSTING
$9.80¢4 900
1
#5
40543-MAS-010
ADJUSTER, CHAIN
$20.11¢10 056
1
#6
43431-MGR-670
ARM, RR. BRAKE STOPPER
$34.94¢17 469
1
#7
43434-ME1-670
RUBBER, STOPPER ARM
$4.20¢2 100
1
#8
52101-MGR-670
BOLT, SWINGARM PIVOT
$45.14¢22 569
1
#9
52106-MBA-000
COLLAR, R. SWINGARM PIVOT
$13.32¢6 663
1
#10
52106-MR1-000
COLLAR, R. SWINGARM
$29.86¢14 931
1
#11
52109-MBA-000
BOLT, PIVOT ADJUSTING
$38.05¢19 025
1
#12
52143-MBA-000
COLLAR, L. PIVOT DISTANCE
$31.39¢15 694
1
#13
52144-MBA-000
BUSH, DISTANCE COLLAR
$7.21¢3 606
1
#14
52170-MGR-670
SLIDER, CHAIN
$45.71¢22 856
1
#15
52171-KR6-000
WASHER, CHAIN SLIDER
$3.33¢1 663
1
#16
52200-MGR-670
SWINGARM SUB-ASSY.
$875.31¢437 656
1
#17
90116-ME9-000
BOLT, FLANGE (6MM)
$4.06¢2 031
1
#18
90127-393-000
BOLT, RR. BRAKE STOPPER
$5.90¢2 950
1
#19
90133-286-000
BOLT, RR. BRAKE STOPPER ARM
$5.42¢2 713
1
#20
90301-KT7-000
NUT, LOCK (26X1.5)
$17.48¢8 738
1
#21
90305-GE8-003
NUT, U (14MM)
$4.68¢2 338
1
#22
90505-425-000
WASHER (8MM)
$1.79¢894
1
#22
90524-030-000
WASHER A, HANDLE HOLDER SETTING
$1.79¢894
1
#23
91071-MJ0-003
BEARING, NEEDLE (22X29X30) (NTN)
$50.32¢25 162
1
#24
91205-965-003
OIL SEAL (22X31X5) (ARAI)
$7.04¢3 519
1
#25
91213-MB2-003
DUST SEAL (22X35X7) (ARAI)
$9.04¢4 519
1
#26
91283-ML7-003
DUST SEAL (22X29X4) (ARAI)
$7.18¢3 588
1
#27
93901-25280
SCREW, TAPPING (5X12)
$1.16¢581
1
#28
94001-08000-0S
NUT, HEX. (8MM)
$1.68¢838
1
#29
94101-08000
WASHER, PLAIN (8MM)
$1.06¢531
1
#30
94111-10000
WASHER, SPRING (10MM)
$1.64¢819
1
#31
94201-20320
PIN, COTTER (2.0X32)
$1.34¢669
1
#31
94201-29220
PIN, COTTER (2.0X22)
$1.34¢669
1
#31
94201-20350
PIN, SPLIT (2.0X35)
$1.34¢669
1
#31
94201-20200
PIN, SPLIT (2.0X20)
$1.34¢669
1
#31
94201-20280
PIN, SPLIT (2.0X28)
$1.34¢669
1
#31
94201-20250
PIN, SPLIT (2.0X25)
$1.34¢669
1
#31
94201-20220
PIN, SPLIT (2.0X22)
$1.34¢669
1
#31
94201-20180
PIN, SPLIT (2.0X18)
No Disponible
1
#32
94511-10000
CIRCLIP (OUTER) (10MM)
$1.19¢594
1
#33
94520-35000
CIRCLIP, INNER (35MM)
$2.50¢1 250
1
#34
95011-63000
RUBBER C, STAND STOPPER
$4.74¢2 369
1
#35
96100-62020-10
BEARING, RADIAL BALL (6202)
$16.95¢8 475
1
