MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

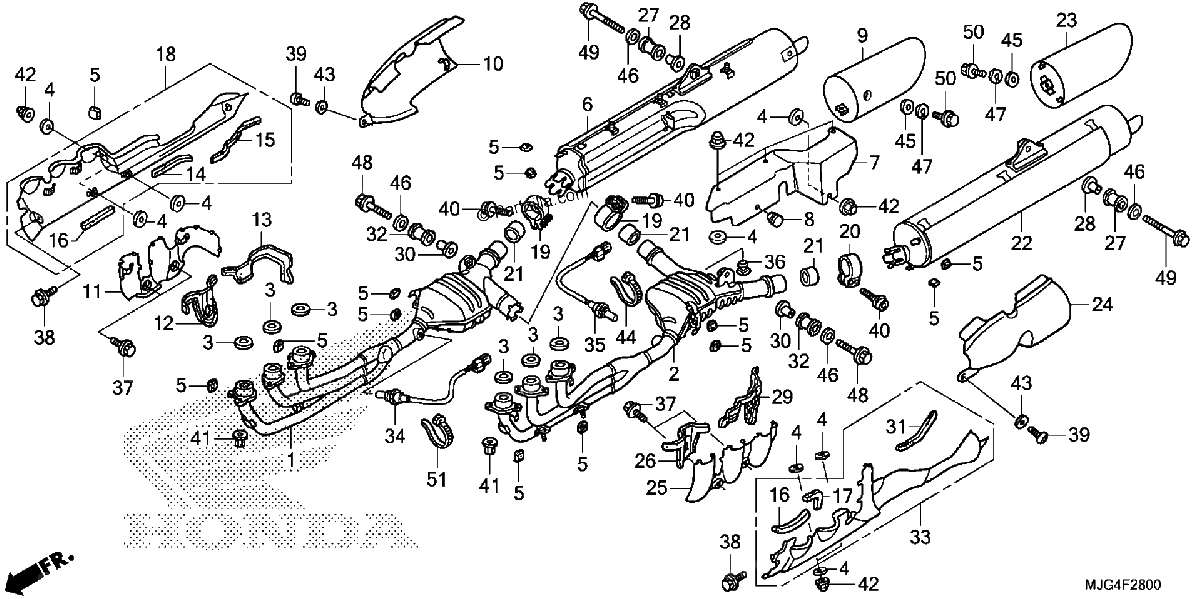

Diagrama de MUFFLER

Repuestos

#1
18150-MJG-670
PIPE, Right EX.
$1733.79¢866 894
1
#2
18250-MJG-670
PIPE, L. EX.
$1733.79¢866 894
1
#3
18291-MN5-650
GASKET, EX. PIPE
$4.58¢2 288
1
#4
18293-MCA-780
GASKET, PROTECTOR
$5.88¢2 938
1
#5
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.64¢1 319
1
#6
18305-MJG-670
MUFFLER, R.
$1072.19¢536 094
1
#7
18313-MCA-A20
PLATE, MUFFLER
$92.91¢46 456
1
#8
18314-MCA-A20
GROMMET, MUFFLER COVER
$1.61¢806
1
#9
18316-MJG-670
TAILPIECE, Right.
$312.69¢156 344
1
#10
18317-MCA-A20
PROTECTOR, R. RR. EX. PIPE
$190.81¢95 406
1
#11
18318-MCA-000
PROTECTOR, R. FR. EX. PIPE (B)
$149.30¢74 650
1
#12
18321-MCA-000
RUBBER A, R. HEAT GUARD
$26.19¢13 094
1
#13
18323-MCA-000
RUBBER B, R. HEAT GUARD
$24.10¢12 050
1
#14
18329-MCA-A20
RUBBER C
$4.26¢2 131
1
#15
18332-MCA-A20
RUBBER D
$7.95¢3 975
1
#16
18333-MCA-000
PROTECTOR, HEAT
$6.05¢3 025
1
#17
18338-MCA-000
PROTECTOR, HEAT SUB
$4.97¢2 488
1
#18
18355-MCA-A20ZB
PROTECTOR ASSY., R. EX. *NHA86M* (MAT BALLISTIC BLACK)
$274.75¢137 375
1
#19
18376-MT3-000
BAND, R. MUFFLER
$35.76¢17 881
1
#20
18377-MT3-000
BAND, L. MUFFLER
$35.76¢17 881
1
#21
18392-MCA-S40
GASKET, MUFFLER (43MM)
$21.11¢10 556
1
#22
18405-MJG-670
MUFFLER, Left
$1072.19¢536 094
1
#23
18416-MJG-670
TAILPIECE, L.
$211.41¢105 706
1
#24
18417-MCA-A20
PROTECTOR, L Rear EX PIPE
$224.46¢112 231
1
#25
18418-MCA-000
PROTECTOR, L. FR. EX. PIPE (B)
$149.30¢74 650
1
#26
18421-MCA-000
RUBBER A, L HEAT GUARD
$26.19¢13 094
1
#27
18421-MN5-000
RUBBER, MUFFLER MOUNTING
$6.20¢3 100
1
#28
18422-MN5-000
COLLAR, MUFFLER MOUNTING
$11.66¢5 831
1
#29
18423-MCA-000
RUBBER B, L. HEAT GUARD
$35.74¢17 869
1
#30
18424-MN5-000
COLLAR, CHAMBER MOUNTING
$9.99¢4 994
1
#31
18429-MCA-A20
RUBBER E
$7.95¢3 975
1
#32
18441-MCA-A20
RUBBER, EX. PIPE
$8.46¢4 231
1
#33
18455-MCA-A20ZB
PROTECTOR Assembly., L EX. NHA86M (MAT BALLISTIC BLACK)
$274.75¢137 375
1
#34
36531-MCA-R31
SENSOR, OXYGEN (#1-3-5)
$347.01¢173 506
1
#35
36532-MCA-R31
SENSOR, OXYGEN (#2-4-6)
$347.09¢173 544
1
#36
50524-MG9-000
RUBBER, STAND STOPPER
$8.18¢4 088
1
#37
90004-GHB-600
BOLT, FLANGE (6X10) (NSHF)
$3.75¢1 875
1
#38
90011-HN0-A00
BOLT, FLANGE (6X10)
$1.64¢819
1
#39
90112-MCA-000
BOLT, SPECIAL (6X12)
$2.59¢1 294
1
#40
90130-MCA-000
BOLT, FLANGE SOCKET (8X35)
$3.65¢1 825
1
#41
90304-HB3-771
NUT, SPECIAL (6MM)
$7.35¢3 675
1
#42
90308-MT8-000
NUT, CAP (6MM)
$3.49¢1 744
1
#43
90545-323-700
WASHER (6.5X18)
$2.56¢1 281
1
#44
90650-KV6-003
BAND, WIRE (95MM)
$3.77¢1 888
1
#45
94101-06000
WASHER, PLAIN (6MM)
$0.84¢419
1
#45
94101-06080
WASHER, PLAIN (6MM)
$0.84¢419
1
#45
94101-06800
WASHER, PLAIN (6MM)
$0.84¢419
1
#46
94103-08000
WASHER, PLAIN (8MM)
$0.84¢419
1
#47
94111-06000
WASHER, SPRING (6MM)
$1.21¢606
1
#48
95701-08045-00
BOLT, FLANGE (8X45)
$1.89¢944
1
#49
95701-08055-02
BOLT, FLANGE (8X55)
$3.08¢1 538
1
#50
96001-06012-00
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#51
90652-KT1-771
BAND, WIRE (BLACK)
$5.42¢2 713
1
