SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

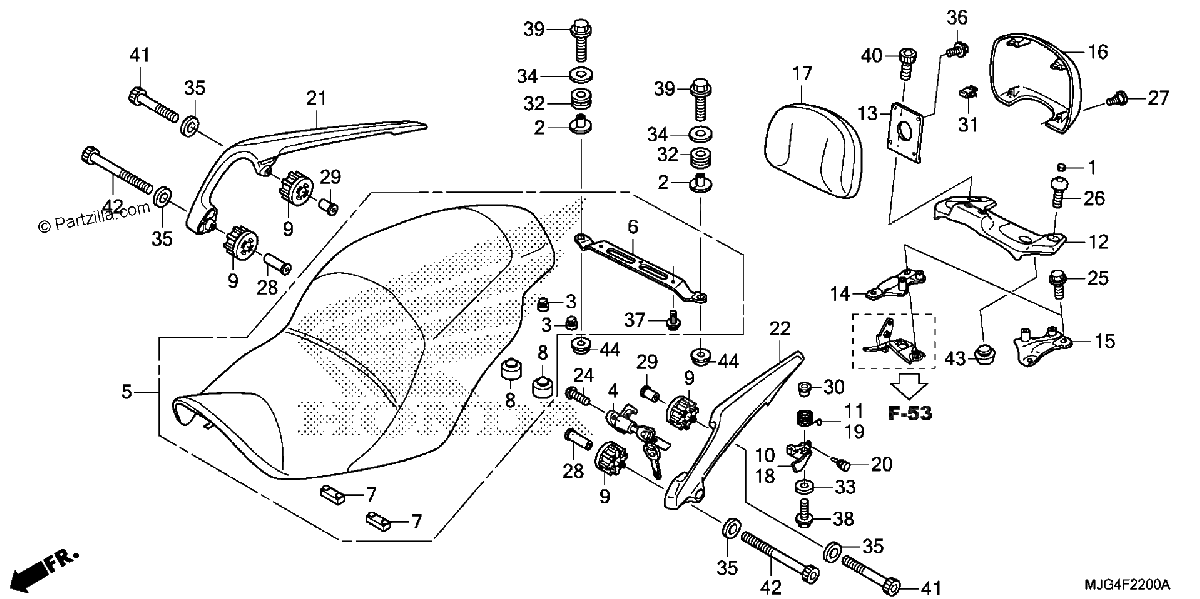

Diagrama de SEAT

Repuestos

#1
12392-MJ0-000
PLUG, HEX. (6MM)
$5.04¢2 519
1
#2
19107-415-000
COLLAR, RESERVE TANK SETTING
$3.45¢1 725
1
#3
47117-196-000
RUBBER, STOPPER
$3.32¢1 662
1
#4
50710-MJG-671
HOLDER ASSY., HELMET
$60.25¢30 124
1
#5
77200-MJG-671
SEAT, DOUBLE
$970.94¢485 472
1
#6
77201-MJG-670
PLATE, RR. MOUNTING
$47.29¢23 644
1
#7
77205-286-000
RUBBER B, SEAT SETTING
$5.90¢2 950
1
#8
77206-426-000
RUBBER, SEAT SETTING
$5.63¢2 818
1
#9
77215-MCA-000
RUBBER, SEAT MOUNTING
$4.76¢2 380
1
#10
77261-MJG-670
LEVER, R. SADDLEBAG OPENER
$9.82¢4 910
1
#11
77262-MJG-670
SPRING, Right SADDLEBAG OPEN LEVER
$9.28¢4 640
1
#12
77311-MJG-770ZA
BRACKET, BACKREST *NHA86M* (MAT BALLISTIC BLACK)
$162.15¢81 075
1
#13
77312-MJG-770
STAY, BACKREST CENTER
$17.16¢8 579
1
#14
77313-MJG-770
STAY, Right BACKREST
$37.92¢18 958
1
#15
77314-MJG-770
STAY, L BACKREST
$37.97¢18 987
1
#16
77315-MJG-770ZA
COVER, BACKREST *NHA86M* (MAT BALLISTIC BLACK)
$258.15¢129 076
1
#17
77318-MJG-770
BACKREST Assembly.
$352.99¢176 496
1
#18
77361-MJG-670
LEVER, L SADDLEBAG OPENER
$9.82¢4 910
1
#19
77362-MJG-670
SPRING, L. SADDLEBAG OPEN LEVER
$9.28¢4 640
1
#20
83132-MN5-000
RUBBER, SHELTER LID
$2.83¢1 414
1
#21
84150-MJG-670ZA
GRIP, Right PASSENGER NHA86M (MAT BALLISTIC BLACK)
$376.82¢188 410
1
#22
84155-MJG-670ZA
GRIP, L PASSENGER NHA86M (MAT BALLISTIC BLACK)
$376.82¢188 410
1
#24
90107-MBT-K40
BOLT, ONE-WAY (6X18)
$2.52¢1 259
1
#25
90109-MEN-A30
BOLT (8X20)
$3.36¢1 679
1
#26
90125-MJG-770
BOLT, SOCKET (8X24)
$3.81¢1 903
1
#27
90130-MJG-770
SCREW, SPECIAL (5X12)
$3.04¢1 518
1
#28
90503-MJG-670
COLLAR, SEAT MOUNTING
$14.33¢7 165
1
#29
90504-MJG-670
COLLAR, SEAT MOUNTING
$9.38¢4 692
1
#30
90505-MJG-670
COLLAR, SADDLEBAG LEVER
$3.22¢1 610
1
#31
90666-SDA-A01
CLIP, SNAP FITTING (PO)(NATURAL)
$0.93¢466
1
#32
90852-898-000
RUBBER, CONTROL BOX
$4.50¢2 248
1
#33
94101-06700
WASHER, PLAIN (6MM)
$1.12¢558
1
#34
94103-06700
WASHER, PLAIN (6MM)
$0.85¢426
1
#35
94102-08700
WASHER, PLAIN (8MM)
$1.12¢558
1
#36
95701-06012-07
BOLT, FLANGE (6X12)
$1.92¢960
1
#37
95701-06012-08
BOLT, FLANGE (6X12)
$1.83¢914
1
#38
96001-06020-07
BOLT, FLANGE (6X20)
$1.60¢799
1
#39
96001-06032-07
BOLT, FLANGE (6X32)
$1.83¢914
1
#40
96600-08020-07
BOLT, SOCKET (8X20) (NOT AVAILABLE)
No Disponible
1
#41
96600-08060-17
BOLT, SOCKET (8X60)
$2.01¢1 006
1
#42
96600-08090-17
BOLT, SOCKET (8X90)
$2.71¢1 357
1
#43
50354-428-000
RUBBER B, STOPPER
$3.36¢1 679
1
#44
90105-KFK-630
COLLAR, RADIATOR SHROUD
$7.24¢3 622
1
