CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

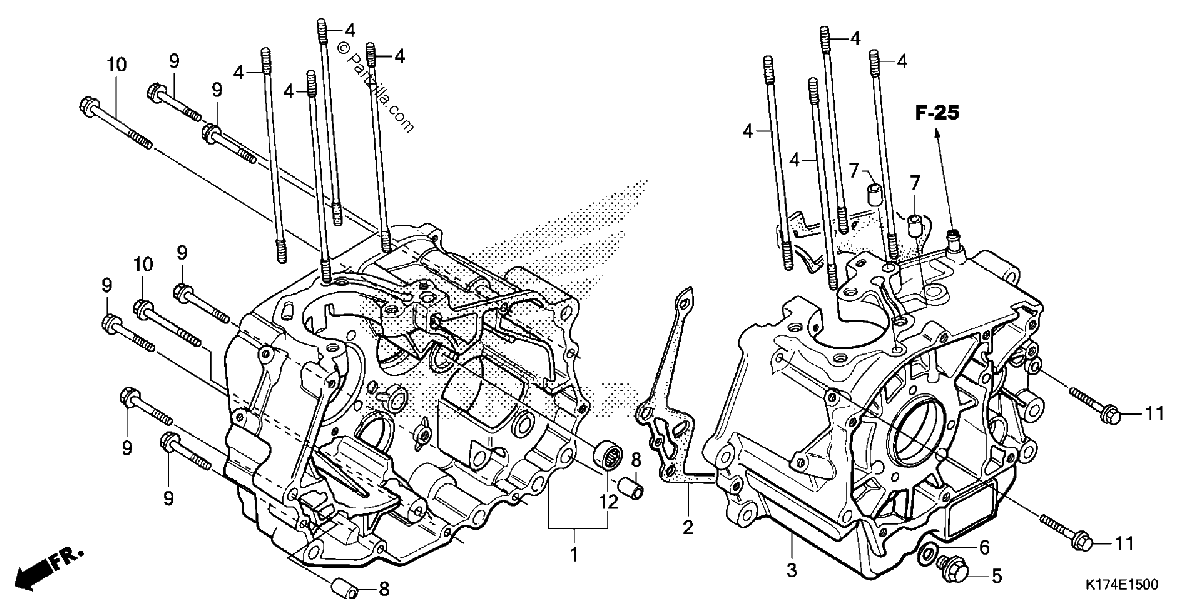

Diagrama de CRANKCASE

Repuestos

#001
11100-KBG-670
CRANKCASE, R.
$610.88¢305 438
1
#1
11100-KBG-670
CRANKCASE, R.
$610.88¢305 438
1
#002
11191-KBG-772
GASKET, CRANKCASE
$30.14¢15 069
1
#2
11191-KBG-772
GASKET, CRANKCASE
$30.14¢15 069
1
#002
11191-KBG-773
GASKET, CRANKCASE
$30.14¢15 069
1
#3
11200-KBG-670
CRANKCASE, Left
$608.85¢304 425
1
#003
11200-KBG-670
CRANKCASE, Left
$608.85¢304 425
1
#004
90031-KB4-670
BOLT, CYLINDER STUD
$15.32¢7 663
1
#4
90031-KB4-670
BOLT, CYLINDER STUD
$15.32¢7 663
1
#005
92800-12000
BOLT, DRAIN PLUG (12MM)
$3.91¢1 956
1
#5
92800-12000
BOLT, DRAIN PLUG (12MM)
$3.91¢1 956
1
#006
94109-12000
WASHER, DRAIN PLUG (12MM)
$1.57¢788
1
#6
94109-12000
WASHER, DRAIN PLUG (12MM)
$1.57¢788
1
#007
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#7
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#008
94301-12200
PIN, DOWEL (12X20)
$2.95¢1 475
1
#8
94301-12200
PIN, DOWEL (12X20)
$2.95¢1 475
1
#009
95701-06040-00
BOLT, FLANGE (6X40)
$2.41¢1 206
1
#9
95701-06040-00
BOLT, FLANGE (6X40)
$2.41¢1 206
1
#10
95701-06065-00
BOLT, FLANGE (6X65)
$1.95¢975
1
#010
95701-06065-00
BOLT, FLANGE (6X65)
$1.95¢975
1
#11
96001-06040-00
BOLT, FLANGE (6X40)
$2.79¢1 394
1
#011
96001-06040-00
BOLT, FLANGE (6X40)
$2.79¢1 394
1
#012
91106-KB4-003
BEARING, NEEDLE (15MM)
$15.95¢7 975
1
#12
91106-KB4-003
BEARING, NEEDLE (15MM)
$15.95¢7 975
1
