STARTING CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

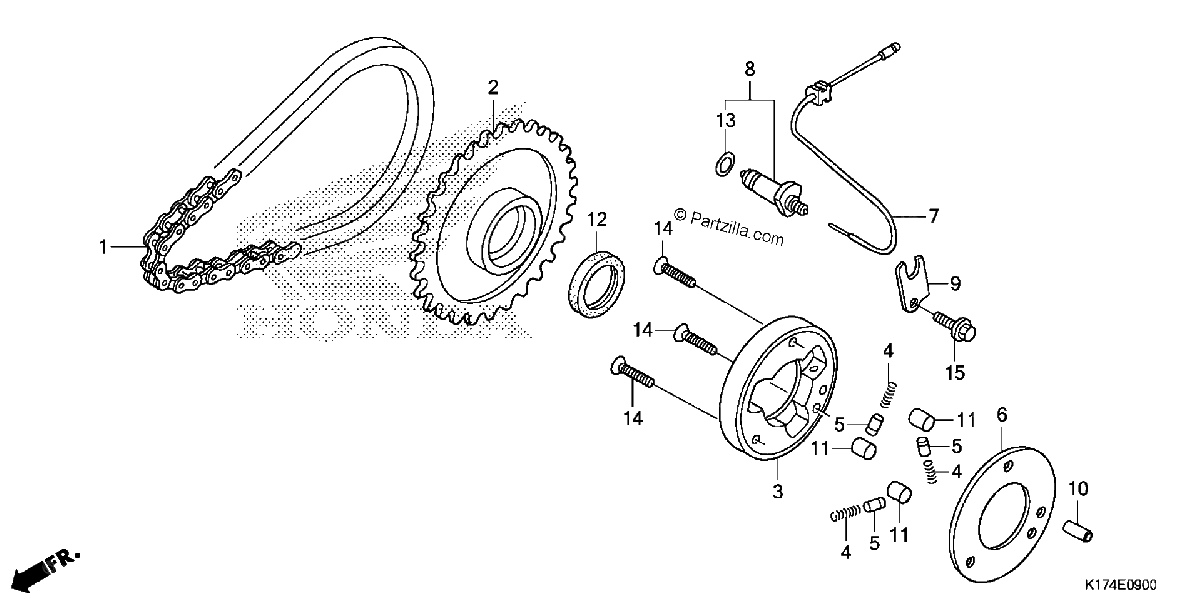

Diagrama de STARTING CLUTCH

Repuestos

#1
28101-KB4-671
CHAIN, STARTING (56L)
$41.09¢20 545
1
#001
28101-KB4-671
CHAIN, STARTING (56L)
$41.09¢20 545
1
#2
28110-KB4-671
SPROCKET, STARTING (38T)
$104.36¢52 181
1
#002
28110-KB4-671
SPROCKET, STARTING (38T)
$104.36¢52 181
1
#003
28120-201-040
CLUTCH OUTER, STARTING
$92.99¢46 494
1
#3
28120-201-040
CLUTCH OUTER, STARTING
$92.99¢46 494
1
#004
28125-253-020
SPRING, STARTING CLUTCH ROLLER
$6.22¢3 111
1
#4
28125-253-020
SPRING, STARTING CLUTCH ROLLER
$6.22¢3 111
1
#5
28126-253-030
CAP, STARTING CLUTCH ROLLER SPRING
$5.04¢2 519
1
#005
28126-253-030
CAP, STARTING CLUTCH ROLLER SPRING
$5.04¢2 519
1
#006
28128-253-030
PLATE, STARTING CLUTCH SIDE
$6.79¢3 393
1
#6
28128-253-030
PLATE, STARTING CLUTCH SIDE
$6.79¢3 393
1
#007
32975-KC2-960
SUB-WIRE, NEUTRAL SWITCH
$6.88¢3 439
1
#7
32975-KC2-960
SUB-WIRE, NEUTRAL SWITCH
$6.88¢3 439
1
#008
35750-GS3-003
CONTACT, NEUTRAL SWITCH
$9.15¢4 577
1
#8
35750-GS3-003
CONTACT, NEUTRAL SWITCH
$9.15¢4 577
1
#9
35752-KEN-620
PLATE, NEUTRAL SWITCH SETTING
$6.26¢3 128
1
#009
35752-KEN-620
PLATE, NEUTRAL SWITCH SETTING
$6.26¢3 128
1
#10
90701-250-000
PIN, KNOCK (6X13.5)
$3.21¢1 604
1
#010
90701-250-000
PIN, KNOCK (6X13.5)
$3.21¢1 604
1
#11
91101-253-020
ROLLER (10.2X9.5)
$4.44¢2 219
1
#011
91101-253-020
ROLLER (10.2X9.5)
$4.44¢2 219
1
#012
91205-965-003
OIL SEAL (22X31X5) (ARAI)
$6.47¢3 237
1
#12
91205-965-003
OIL SEAL (22X31X5) (ARAI)
$6.47¢3 237
1
#13
91312-107-000
O-RING (7X1.7)
$3.55¢1 777
1
#013
91312-107-000
O-RING (7X1.7)
$3.55¢1 777
1
#014
93600-06020-0A
SCREW, FLAT (6X20)
$1.17¢586
1
#14
93600-06020-0A
SCREW, FLAT (6X20)
$1.17¢586
1
#15
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
#015
95701-06012-00
BOLT, FLANGE (6X12)
$1.92¢960
1
