RIGHT CRANKCASE COVER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

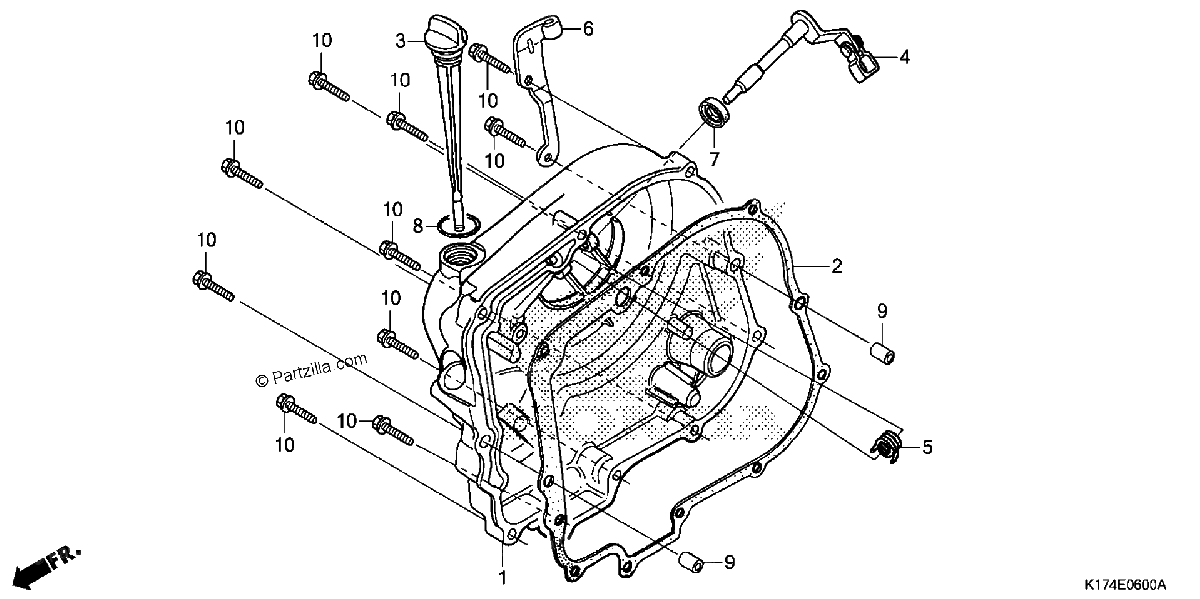

Diagrama de RIGHT CRANKCASE COVER

Repuestos

#1
11330-KR3-600
COVER, Right CRANKCASE
$312.91¢156 456
1
#001
11330-KR3-600
COVER, Right CRANKCASE
$312.91¢156 456
1
#2
11393-KBG-772
GASKET, Right CRANKCASE COVER
$24.28¢12 138
1
#002
11393-KBG-772
GASKET, Right CRANKCASE COVER
$24.28¢12 138
1
#003
15650-KB4-670
DIPSTICK, OIL
$16.36¢8 181
1
#3
15650-KB4-670
DIPSTICK, OIL
$16.36¢8 181
1
#4
22810-KR3-600
LEVER, CLUTCH
$61.79¢30 894
1
#004
22810-KR3-600
LEVER, CLUTCH
$61.79¢30 894
1
#005
22815-KE1-000
SPRING, CLUTCH LEVER
$5.02¢2 512
1
#5
22815-KE1-000
SPRING, CLUTCH LEVER
$5.02¢2 512
1
#6
22838-KR3-600
RECEIVER, CLUTCH CABLE
$31.05¢15 525
1
#006
22838-KR3-600
RECEIVER, CLUTCH CABLE
$31.05¢15 525
1
#007
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$6.13¢3 063
1
#7
91204-KK0-003
OIL SEAL (12X18X5) (ARAI)
$6.13¢3 063
1
#008
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#8
91307-035-000
O-RING (18X3)
$3.65¢1 825
1
#009
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#9
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#010
96001-06040-00
BOLT, FLANGE (6X40)
$2.79¢1 394
1
#10
96001-06040-00
BOLT, FLANGE (6X40)
$2.79¢1 394
1
