HEADLIGHT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

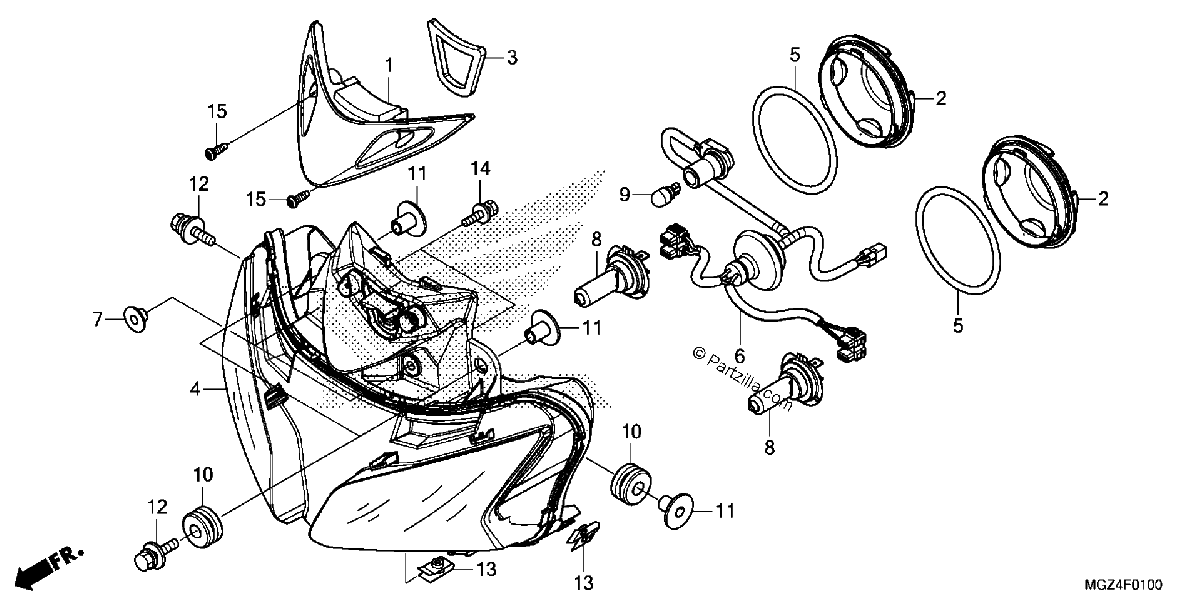

Diagrama de HEADLIGHT

Repuestos

#1
33101-MGZ-J01
LENS, POSITION LIGHT
$33.34¢16 669
1
#001
33101-MGZ-J01
LENS, POSITION LIGHT
$33.34¢16 669
1
#002
33102-MGZ-J01
COVER, SOCKET
$7.36¢3 681
1
#2
33102-MGZ-J01
COVER, SOCKET
$7.36¢3 681
1
#3
33103-MGZ-J01
GASKET, SEAL
$5.19¢2 594
1
#003
33103-MGZ-J01
GASKET, SEAL
$5.19¢2 594
1
#4
33110-MGZ-305
HEADLIGHT UNIT (COO)
$519.51¢259 756
1
#004
33110-MGZ-305
HEADLIGHT UNIT (COO)
$519.51¢259 756
1
#5
33113-MGZ-J01
GASKET, SOCKET COVER
$3.65¢1 825
1
#005
33113-MGZ-J01
GASKET, SOCKET COVER
$3.65¢1 825
1
#006
33120-MGZ-J01
SOCKET
$70.72¢35 363
1
#6
33120-MGZ-J01
SOCKET
$70.72¢35 363
1
#007
33731-MJ0-940
COLLAR, REGULATOR MOUNTING
$3.08¢1 538
1
#7
33731-MJ0-940
COLLAR, REGULATOR MOUNTING
$3.08¢1 538
1
#8
34901-MGZ-J01
BULB, HEADLIGHT (12V 55W) (H7)(KOITO)
$26.85¢13 425
1
#008
34901-MGZ-J01
BULB, HEADLIGHT (12V 55W) (H7)(KOITO)
$26.85¢13 425
1
#009
34351-657-921
BULB (12V/5W) (STANLEY)
$4.15¢2 075
1
#9
34351-657-921
BULB (12V/5W) (STANLEY)
$4.15¢2 075
1
#009
34908-SB6-003
BULB (12V 5W) (KOITO)
$4.15¢2 075
1
#9
34908-SB6-003
BULB (12V 5W) (KOITO)
$4.15¢2 075
1
#010
61103-357-000
RUBBER, FR. FENDER MOUNTING
$3.98¢1 988
1
#10
61103-357-000
RUBBER, FR. FENDER MOUNTING
$3.98¢1 988
1
#011
61104-KZZ-900
COLLAR
$2.38¢1 188
1
#11
61104-KZZ-900
COLLAR
$2.38¢1 188
1
#012
90104-KZZ-900
BOLT-WASHER (6X22)
$0.68¢338
1
#12
90104-KZZ-900
BOLT-WASHER (6X22)
$0.68¢338
1
#013
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#13
90677-KAN-T00
NUT, CLIP (5MM)
$0.83¢413
1
#14
93404-05020-00
BOLT-WASHER (5X20)
$0.61¢306
1
#014
93404-05020-00
BOLT-WASHER (5X20)
$0.61¢306
1
#015
93901-343J0
SCREW, TAPPING (4X12)
$2.21¢1 106
1
#15
93901-343J0
SCREW, TAPPING (4X12)
$2.21¢1 106
1
