EXHAUST MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

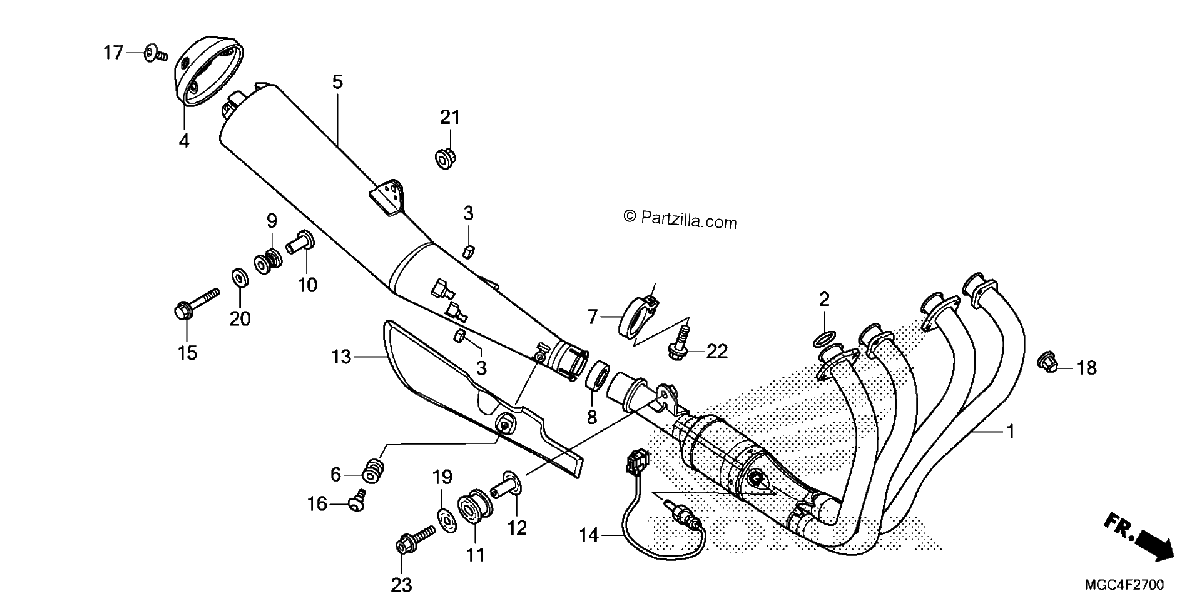

Diagrama de EXHAUST MUFFLER

Repuestos

#1
18150-MGC-D30
PIPE, EX.
$2781.00¢1 390 500
1
#2
18291-MM5-860
GASKET, EX. PIPE
$5.76¢2 881
1
#3
18293-MCA-A20
RUBBER, PROTECTOR GASKET
$2.43¢1 213
1
#4
18305-MGC-305
COVER, TAIL (COO)
$101.65¢50 824
1
#5
18310-MGC-305
MUFFLER (COO)
$1469.19¢734 597
1
#6
18357-MCG-000
RUBBER, PROTECTOR MOUNTING
$3.36¢1 679
1
#7
18376-413-000
BAND, L. RR. MUFFLER
$39.21¢19 607
1
#8
18392-MG7-750
GASKET, MUFFLER
$14.59¢7 297
1
#9
18421-MBT-D21
RUBBER, MUFFLER MOUNTING
$16.81¢8 407
1
#10
18422-MA6-000
COLLAR, MUFFLER MOUNTING
$8.83¢4 416
1
#11
18422-MFJ-D10
RUBBER, EX. PIPE MOUNTING
$21.88¢10 942
1
#12
18423-MFJ-D00
COLLAR, EX. PIPE MOUNTING
$7.47¢3 738
1
#13
18425-MGC-000
COVER, MUFFLER
$247.08¢123 539
1
#14
36531-MGC-003
SENSOR, OXYGEN
$331.79¢165 893
1
#15
90109-MR7-000
BOLT, FLANGE (8X45)
$5.51¢2 754
1
#16
90114-MCJ-000
SCREW, SPECIAL (6X14)
$2.98¢1 489
1
#17
90114-MFP-N00
BOLT, SPECIAL (5X8)
$5.63¢2 818
1
#18
90304-ME1-670
NUT, CAP (8MM)
$6.64¢3 318
1
#19
90501-MFJ-D00
WASHER (8.5X38)
$2.54¢1 271
1
#20
90504-MA6-000
WASHER (8.5X26)
$2.06¢1 029
1
#21
94050-08000
NUT, FLANGE (8MM)
$1.06¢529
1
#22
95701-08038-00
BOLT, FLANGE (8X38)
$1.79¢897
1
#23
96300-08040-00
BOLT, FLANGE (8X40)
$2.53¢1 265
1
