CLUTCH

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

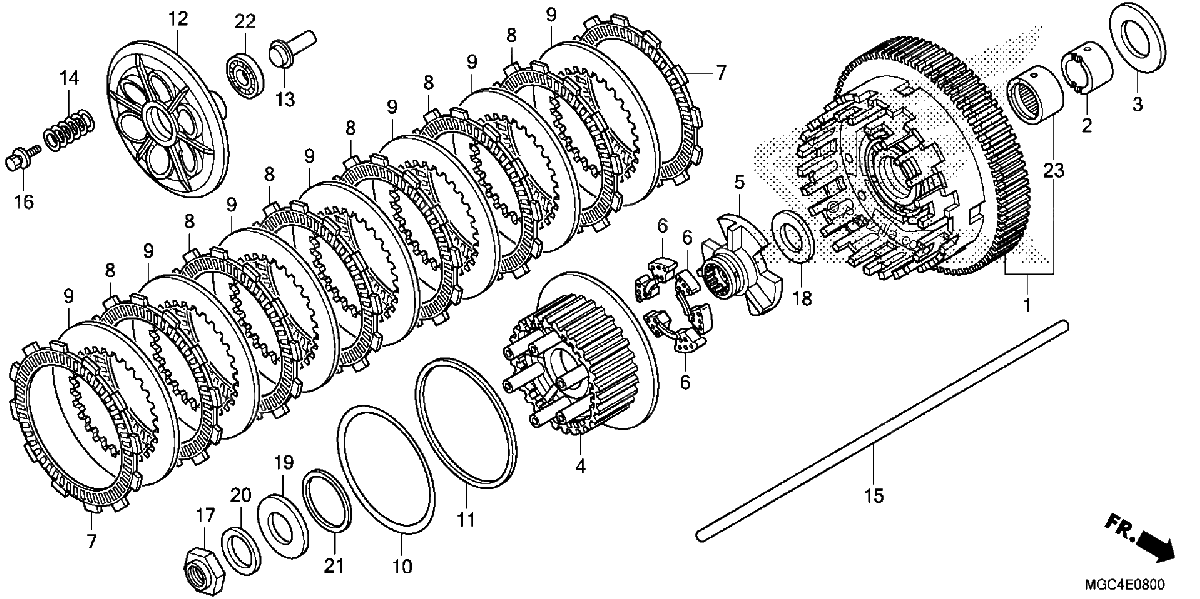

Diagrama de CLUTCH

Repuestos

#1
22100-MEJ-000
CLUTCH OUTER
$541.85¢270 925
1
#2
22116-MS2-610
GUIDE, CLUTCH (OUTER)
$46.80¢23 400
1
#3
22117-MEJ-610
COLLAR, DISTANCE
$12.05¢6 025
1
#4
22121-MEJ-000
CENTER, CLUTCH
$151.06¢75 531
1
#5
22122-MEJ-610
BOSS, CLUTCH CENTER
$193.36¢96 681
1
#6
22125-MEJ-000
RUBBER, CLUTCH DAMPER
$21.80¢10 900
1
#7
22201-MBB-000
DISK, CLUTCH FRICTION
$24.60¢12 300
1
#8
22201-MBT-F20
DISK, CLUTCH FRICTION
$42.89¢21 444
1
#9
22321-GHB-811
PLATE, CLUTCH
$13.95¢6 975
1
#9
22321-MT3-000
PLATE, CLUTCH
$16.39¢8 194
1
#10
22325-MN4-000
SPRING, CLUTCH PLATE
$12.11¢6 056
1
#11
22326-MV1-000
SEAT, JUDDER SPRING
$9.74¢4 869
1
#12
22351-MEJ-000
PLATE, CLUTCH PRESSURE
$97.95¢48 975
1
#13
22366-MAZ-000
PIECE, CLUTCH JOINT
$15.84¢7 919
1
#14
22401-MAT-000
SPRING, CLUTCH
$7.95¢3 975
1
#15
22850-MEJ-000
ROD, CLUTCH LIFTER
$38.15¢19 075
1
#16
90022-MAT-E00
BOLT-WASHER (6X35)
$5.91¢2 956
1
#17
90231-MCH-000
NUT, LOCK (25MM)
$8.22¢4 113
1
#18
90401-MS2-610
WASHER, THRUST (28.2X56X2)
$20.43¢10 213
1
#19
90402-MEA-670
WASHER (25.2X51X2.5)
$5.94¢2 969
1
#20
90432-MM8-003
WASHER, SPRING (25MM) (CHUO HATSUJO)
$9.32¢4 663
1
#21
90456-759-000
SHIM D, FINAL REDUCTION SECOND GEAR (1.0MM)
$11.46¢5 731
1
#22
91008-362-000
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#22
91008-KK6-000
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#22
91010-HC0-003
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#22
91011-KK6-013
BEARING, RADIAL BALL (16003)
$18.01¢9 006
1
#23
91024-MM5-003
BEARING, NEEDLE (40X47X31)
$111.51¢55 756
1
