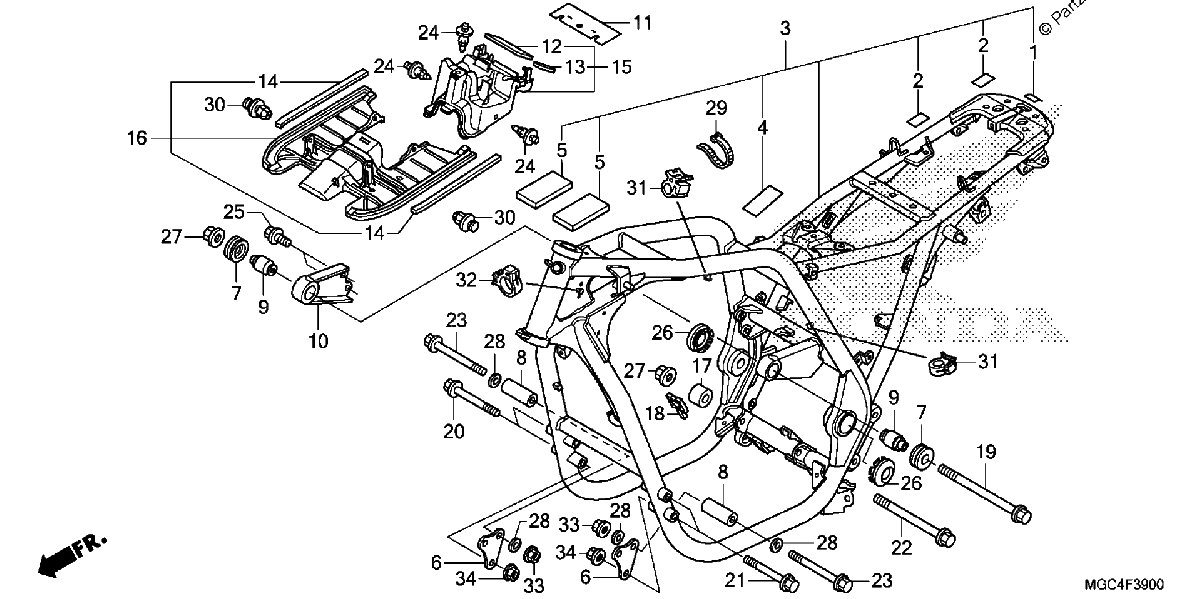

FRAME
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
FILM, PROTECTOR
$4.84¢2 419
#2
TAPE, TANK GUARD
$2.99¢1 494
#3
FRAME SET *NH1* (BLACK)
$3798.15¢1 899 075
#4
FILM, FRAME PIPE (UPPER)
$5.38¢2 688
#5
MAT, FRAME
$3.98¢1 988
#6
PLATE A, ENGINE HANGER
$17.50¢8 750
#7
RUBBER C, MOUNTING
$18.11¢9 056
#8
COLLAR A, L. ENGINE MOUNT
$23.26¢11 631
#9
RUBBER E, MOUNTING
$14.13¢7 063
#10
BRACKET B, R. ENGINE HANGER
$45.31¢22 656
#11
GUARD, ECU
$10.26¢5 131
#12
SPONGE A, ECU BOX
$5.54¢2 769
#13
SPONGE B, ECU BOX
$1.85¢925
#14
MAT, HEAT GUARD
$3.30¢1 650
#15
BOX SET, ECU
$26.21¢13 106
#16
GUARD SET, HEAT
$45.70¢22 850
#17
COLLAR, RR. ENGINE HANGER
$9.30¢4 650
#18
E-CLIP, WIRE HARNESS
$3.59¢1 794
#19
BOLT, FLANGE (12X250)
$23.44¢11 719
#20
BOLT, FLANGE (10X100)
$10.55¢5 275
#21
BOLT, FLANGE (10X85)
$10.55¢5 275
#22
BOLT, FLANGE (12X193)
$20.10¢10 050
#23
BOLT, FLANGE (10X115)
$11.73¢5 863
#24
CLIP, BUMPER SEAL
$5.72¢2 863
#25
BOLT, FLANGE (10X20)
$2.81¢1 406
#26
CAP B, PIVOT
$28.21¢14 106
#27
NUT, FLANGE (12MM)
$2.21¢1 106
#28
WASHER, SPECIAL (11X28)
$13.89¢6 944
#30
CLIP, SPLASH SHIELD
$6.39¢3 194
#31
CLIP, CABLE (10MM)
$2.81¢1 406
#32
CLIP, CABLE (15MM)
$2.81¢1 406
#33
NUT, FLANGE (10MM)
$1.90¢950
#34
NUT, FLANGE (10MM)
$4.06¢2 031
#34
NUT, FLANGE (10MM)
$4.06¢2 031
