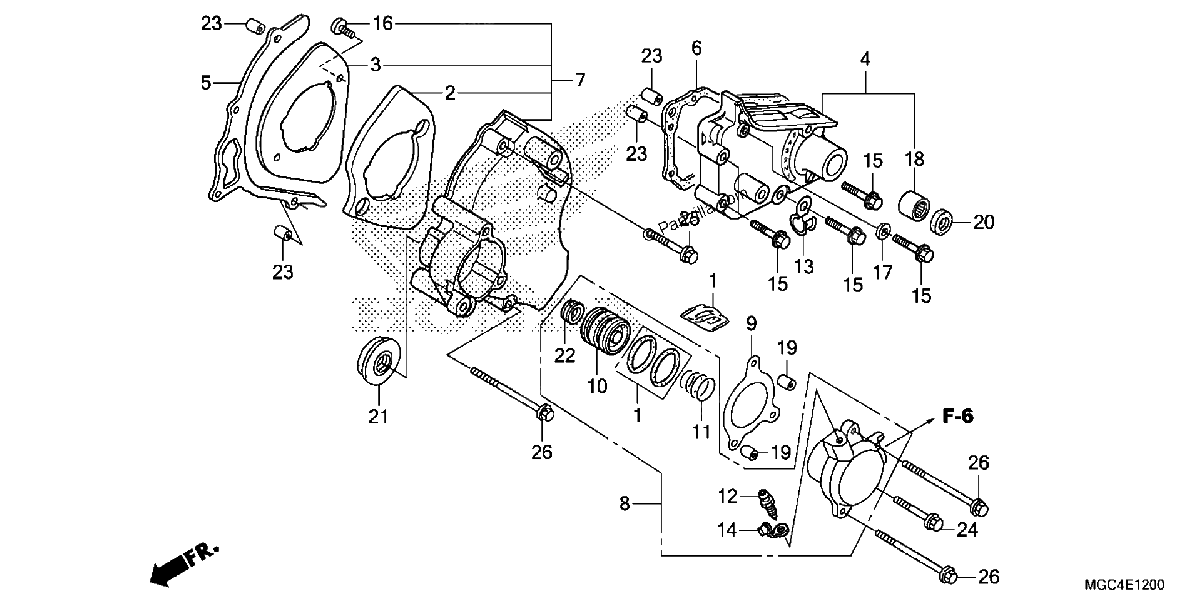

LEFT REAR COVER
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
O-RING SET (MSDS)
$6.32¢3 162
#2
RUBBER, L. RR. COVER
$38.71¢19 356
#3
PLATE, L. RR. COVER RUBBER
$23.84¢11 919
#4
HOLDER, L. SIDE
$123.34¢61 669
#5
PLATE, DRIVE CHAIN GUIDE
$14.75¢7 375
#6
GASKET, L. SIDE HOLDER
$11.27¢5 637
#7
COVER ASSY., L. RR. CRANKCASE
$172.64¢86 319
#8
CYLINDER ASSY., CLUTCH SLAVE
$172.91¢86 456
#9
GASKET, SLAVE CYLINDER
$6.04¢3 019
#10
PISTON, SLAVE CYLINDER
$38.30¢19 150
#11
SPRING, SLAVE CYLINDER
$9.55¢4 775
#12
SCREW, BLEEDER
$6.20¢3 100
#13
CLIP, DYNAMO WIRE
$5.76¢2 881
#14
CAP, BLEEDER
$6.13¢3 063
#15
BOLT, FLANGE (6X40) (NSHF)
$4.94¢2 469
#16
SCREW, PAN (6X14)
$3.75¢1 875
#17
WASHER, SEALING (6.5MM)
$3.65¢1 825
#18
BEARING, NEEDLE (19X13X12)
No Disponible
#19
PIN, DOWEL (8X10)
$3.28¢1 638
#20
OIL SEAL (13X22X5) (ARAI)
$3.77¢1 888
#21
OIL SEAL (8X25X7) (ARAI)
$5.25¢2 625
#22
OIL SEAL (8X18X5)
$4.91¢2 456
#23
PIN, DOWEL (8X14)
$2.89¢1 444
#24
BOLT, FLANGE (6X25)
$2.70¢1 350
#25
BOLT, FLANGE (6X45)
$2.52¢1 263
#26
BOLT, FLANGE (6X75)
$2.88¢1 438
