CRANKCASE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

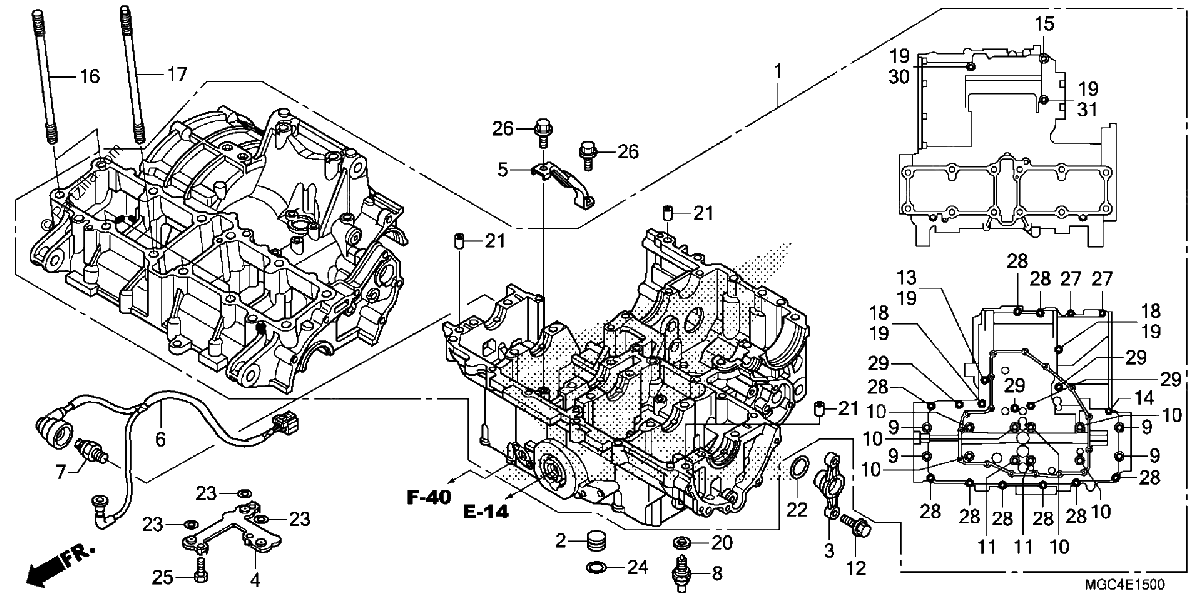

Diagrama de CRANKCASE

Repuestos

#1
11000-MGC-920
CRANKCASE SET
$3927.01¢1 963 506
1
#2
11208-MAZ-000
COLLAR, MAIN GALLERY
$5.84¢2 919
1
#3
11371-MGC-000
COVER, L. MIDDLE
$44.07¢22 037
1
#4
12260-MAZ-000
PLATE, OIL PASSAGE
$62.54¢31 269
1
#5
15160-MGC-000
GUIDE, OIL PUMP CHAIN
$48.78¢24 388
1
#6
32101-MGC-000
SUB-WIRE, ENGINE
$45.09¢22 544
1
#7
35500-MJ4-024
SWITCH Assembly., OIL PRESSURE (DENSO)
$49.28¢24 638
1
#8
35600-HA0-003
SWITCH ASSY., NEUTRAL (TOYO)
$22.11¢11 056
1
#9
90001-MAZ-000
BOLT, FLANGE (9X91)
$7.40¢3 700
1
#10
90002-MAZ-000
BOLT, FLANGE (9X131)
$8.79¢4 394
1
#11
90003-MAZ-000
BOLT, FLANGE (9X156)
$10.32¢5 163
1
#12
90006-GHB-660
BOLT, FLANGE (6X22) (NSHF)
$2.31¢1 156
1
#13
90006-MM5-640
BOLT, FLANGE (8X135)
$8.66¢4 331
1
#14
90011-MM5-640
BOLT, FLANGE (6X93)
$7.40¢3 700
1
#15
90015-MM5-640
BOLT, FLANGE (10X75)
$4.50¢2 250
1
#16
90031-MGC-000
BOLT, STUD (9X165)
$26.79¢13 394
1
#17
90032-MGC-000
BOLT B, STUD (9X165)
$26.79¢13 394
1
#18
90069-MC7-000
BOLT, FLANGE (8X115)
No Disponible
1
#19
90441-ME9-000
WASHER, SEALING (8MM)
$3.36¢1 681
1
#20
90443-MJ6-000
WASHER, NEUTRAL
$2.48¢1 238
1
#21
90701-MV9-670
PIN, DOWEL (10X16)
$5.21¢2 606
1
#22
91302-MB0-013
O-RING (32.95X2.62) (ARAI)
$3.65¢1 825
1
#23
91302-MGC-003
O-RING (9X2.3)
$2.97¢1 487
1
#24
91305-MGC-003
O-RING (11.9X2.2)
$3.65¢1 825
1
#25
92101-06014-0A
BOLT, HEX. (6X14)
$1.86¢931
1
#26
95701-06014-00
BOLT, FLANGE (6X14)
$1.23¢613
1
#27
95701-06050-00
BOLT, FLANGE (6X50)
$2.66¢1 331
1
#28
95701-08040-00
BOLT, FLANGE (8X40)
$1.54¢769
1
#29
95701-08060-00
BOLT, FLANGE (8X60)
$1.95¢975
1
#30
95701-08080-00
BOLT, FLANGE (8X80)
$2.21¢1 106
1
#31
95701-08095-00
BOLT, FLANGE (8X95)
$2.54¢1 269
1
