WIRE HARNESS

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

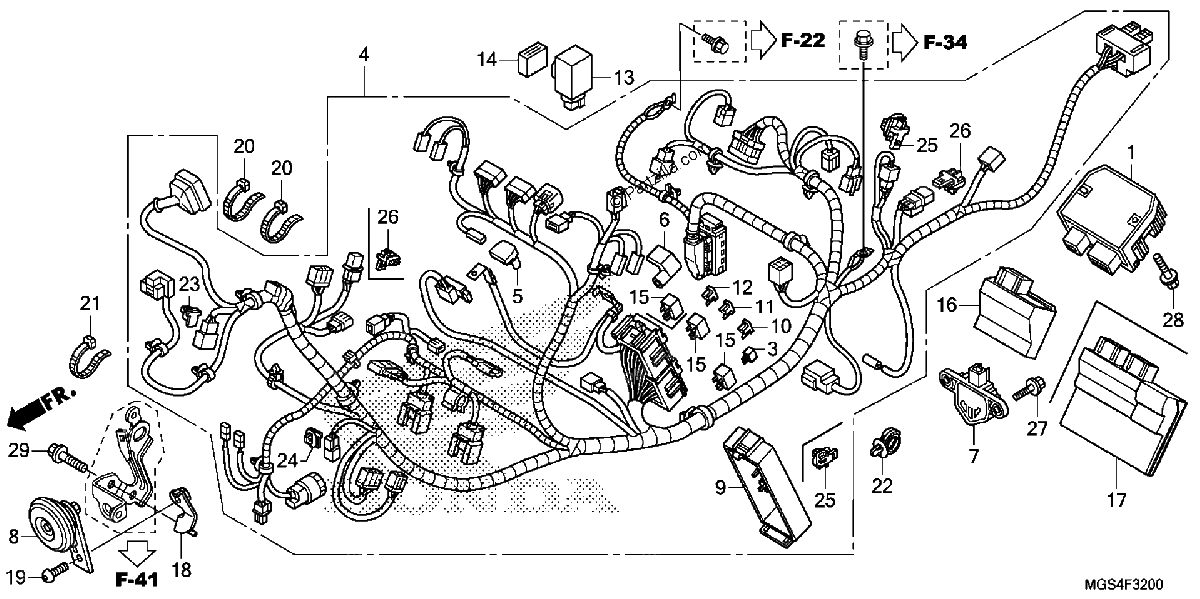

Diagrama de WIRE HARNESS

Repuestos

#1
31600-MJJ-D31
RECTIFIER ASSY., REGULATOR
$518.52¢259 262
1
#3
31730-MAS-601
DIODE ASSY., THREE WAY (SUMITOMO)
$11.63¢5 813
1
#4
32100-MGS-A30
WIRE HARNESS
$1093.76¢546 882
1
#7
35160-MGS-D31
SENSOR ASSY., BANK ANGLE
$177.72¢88 860
1
#8
38110-MEE-013
HORN (HIGH)
$41.91¢20 953
1
#9
38201-MGS-D31
COVER, POWER BOX
$12.09¢6 043
1
#10
38221-SNA-A31
FUSE, BLADE (7.5A)
$3.46¢1 731
1
#11
38221-SNA-A51
FUSE, BLADE (15A)
$4.42¢2 208
1
#13
38301-MEW-921
RELAY, TURN SIGNAL (MITSUBA)
$56.97¢28 486
1
#14
38306-KK4-000
SUSPENSION, TURN SIGNAL RELAY (MITSUBA)
$3.36¢1 679
1
#15
38501-MEL-003
RELAY ASSY., POWER (MICRO ISO 4P)
$5.19¢2 593
1
#16
38770-MGS-A33
PGM-FI UNIT
$679.65¢339 825
1
#18
50311-MGS-D31
STAY, HORN
$8.13¢4 065
1
#19
90128-MGS-D30
BOLT, SOCKET (8X16)
$3.42¢1 708
1
#20
90650-KV6-003
BAND, WIRE (95MM)
$3.47¢1 737
1
#21
90652-KT1-771
BAND, WIRE (BLACK)
$4.99¢2 496
1
#23
91533-MGS-D30
CLIP, CONNECTOR (BLACK)
$1.59¢793
1
#24
91534-SWA-003
CLIP, CONNECTOR (DARK GRAY)
$11.32¢5 658
1
#25
91535-TA0-003
CLIP, CONNECTOR (DARK BROWN)
$4.62¢2 311
1
#26
91565-SEL-003
CLIP, CONNECTOR (BLACK)
$4.09¢2 047
1
#27
95701-06016-00
BOLT, FLANGE (6X16)
$1.92¢960
1
#28
95701-06022-00
BOLT, FLANGE (6X22)
$2.13¢1 064
1
#29
95701-08025-08
BOLT, FLANGE (8X25)
$0.83¢414
1
