MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

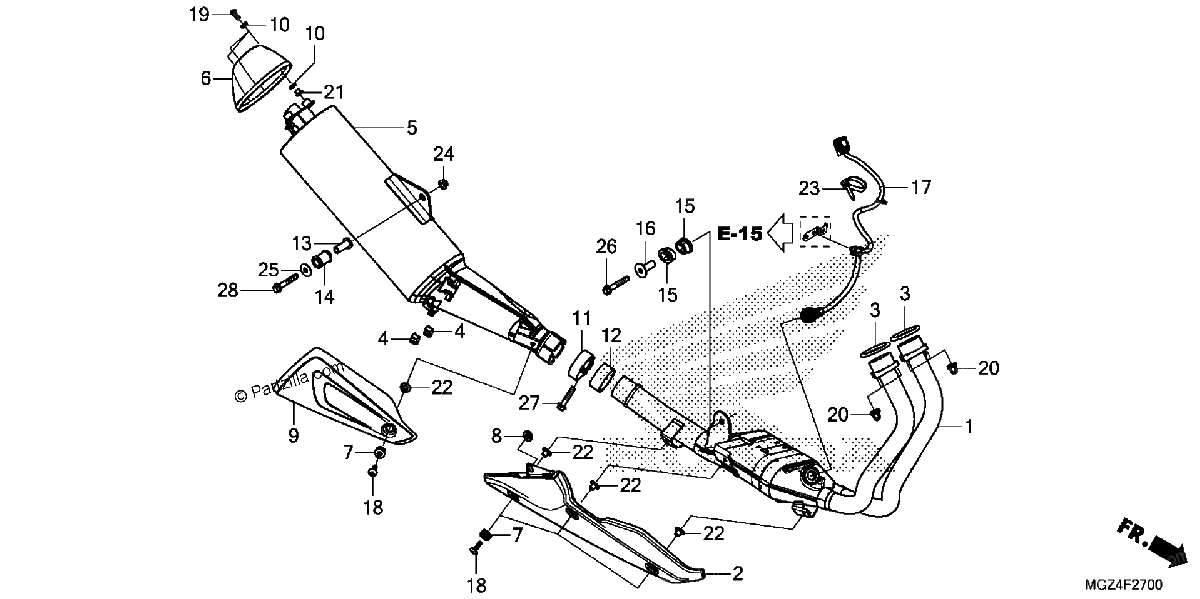

Diagrama de MUFFLER

Repuestos

#1
18150-MGZ-D00
PIPE, EX.
$1147.91¢573 956
1
#001
18150-MGZ-D00
PIPE, EX.
$1147.91¢573 956
1
#001
18150-MGZ-D01
PIPE, EX.
$1147.91¢573 956
1
#1
18150-MGZ-D01
PIPE, EX.
$1147.91¢573 956
1
#002
18180-MGZ-J00
COVER, EX. MANIFOLD
$82.81¢41 406
1
#2
18180-MGZ-J00
COVER, EX. MANIFOLD
$82.81¢41 406
1
#003
18291-MN4-920
GASKET, EX. PIPE
$6.44¢3 219
1
#3
18291-MN4-920
GASKET, EX. PIPE
$6.44¢3 219
1
#004
18293-MN0-000
RUBBER, PROTECTOR
$2.75¢1 375
1
#4
18293-MN0-000
RUBBER, PROTECTOR
$2.75¢1 375
1
#005
18310-MGZ-305
MUFFLER (COO)
$625.49¢312 744
1
#5
18310-MGZ-305
MUFFLER (COO)
$625.49¢312 744
1
#5
18310-MGZ-D00
MUFFLER
$625.49¢312 744
1
#005
18310-MGZ-D00
MUFFLER
$625.49¢312 744
1
#006
18315-MGZ-J00
CAP, MUFFLER TAIL
$17.99¢8 994
1
#6
18315-MGZ-J00
CAP, MUFFLER TAIL
$17.99¢8 994
1
#7
18320-196-000
RUBBER A, PROTECTOR
$3.44¢1 719
1
#007
18320-196-000
RUBBER A, PROTECTOR
$3.44¢1 719
1
#8
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#008
18345-MBT-610
RUBBER, PROTECTOR MOUNTING
$2.81¢1 406
1
#9
18350-MGZ-J00
COVER, MUFFLER
$42.36¢21 181
1
#009
18350-MGZ-J00
COVER, MUFFLER
$42.36¢21 181
1
#10
18365-MEE-D00
WASHER, RUBBER (8.5X13X2.5)
$2.48¢1 238
1
#010
18365-MEE-D00
WASHER, RUBBER (8.5X13X2.5)
$2.48¢1 238
1
#011
18376-413-000
BAND, L. RR. MUFFLER
$42.63¢21 313
1
#11
18376-413-000
BAND, L. RR. MUFFLER
$42.63¢21 313
1
#012
18392-MG7-750
GASKET, MUFFLER
$15.86¢7 931
1
#12
18392-MG7-750
GASKET, MUFFLER
$15.86¢7 931
1
#013
18420-MGZ-J00
COLLAR, MUFFLER MOUNTING
$6.08¢3 038
1
#13
18420-MGZ-J00
COLLAR, MUFFLER MOUNTING
$6.08¢3 038
1
#014
18421-MGZ-J00
RUBBER, MUFFLER MOUNTING
$2.40¢1 200
1
#14
18421-MGZ-J00
RUBBER, MUFFLER MOUNTING
$2.40¢1 200
1
#015
18422-MGZ-J00
RUBBER, EX. PIPE MOUNTING
$10.32¢5 163
1
#15
18422-MGZ-J00
RUBBER, EX. PIPE MOUNTING
$10.32¢5 163
1
#16
18423-MGZ-J00
COLLAR, EX PIPE MOUNTING
$6.38¢3 188
1
#016
18423-MGZ-J00
COLLAR, EX PIPE MOUNTING
$6.38¢3 188
1
#017
36531-MGZ-J01
SENSOR, OXYGEN
$354.90¢177 450
1
#17
36531-MGZ-J01
SENSOR, OXYGEN
$354.90¢177 450
1
#018
90118-MGZ-J00
SCREW, PAN (6X20)
$1.38¢688
1
#18
90118-MGZ-J00
SCREW, PAN (6X20)
$1.38¢688
1
#19
90132-MFJ-D00
BOLT, SPECIAL (6X18) (SUS)
$2.97¢1 487
1
#019
90132-MFJ-D00
BOLT, SPECIAL (6X18) (SUS)
$2.97¢1 487
1
#20
90304-KPH-700
NUT, HEX CAP (8MM)
$2.19¢1 094
1
#020
90304-KPH-700
NUT, HEX CAP (8MM)
$2.19¢1 094
1
#21
90501-GN5-830
COLLAR (8.5X7)
$2.75¢1 375
1
#021
90501-GN5-830
COLLAR (8.5X7)
$2.75¢1 375
1
#022
90502-KGB-610
COLLAR, HEAD SIDE COVER
$2.73¢1 363
1
#22
90502-KGB-610
COLLAR, HEAD SIDE COVER
$2.73¢1 363
1
#023
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
1
#23
90651-KV6-003
BAND, WIRE (165MM) (BLACK)
$3.65¢1 825
1
#24
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#024
94050-08000
NUT, FLANGE (8MM)
$1.15¢575
1
#25
94103-08000
WASHER, PLAIN (8MM)
$0.84¢419
1
#025
94103-08000
WASHER, PLAIN (8MM)
$0.84¢419
1
#026
95701-08050-00
BOLT, FLANGE (8X50)
$2.92¢1 463
1
#26
95701-08050-00
BOLT, FLANGE (8X50)
$2.92¢1 463
1
#027
96400-08035-04
BOLT, FLANGE (8X35)
$0.83¢413
1
#27
96400-08035-04
BOLT, FLANGE (8X35)
$0.83¢413
1
#028
95801-08050-00
BOLT, FLANGE (8X50)
$3.65¢1 825
1
#28
95801-08050-00
BOLT, FLANGE (8X50)
$3.65¢1 825
1
#28
96400-08050-00
BOLT, FLANGE (8X50)
$3.65¢1 825
1
#028
96400-08050-00
BOLT, FLANGE (8X50)
$3.65¢1 825
1
