SEAT

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

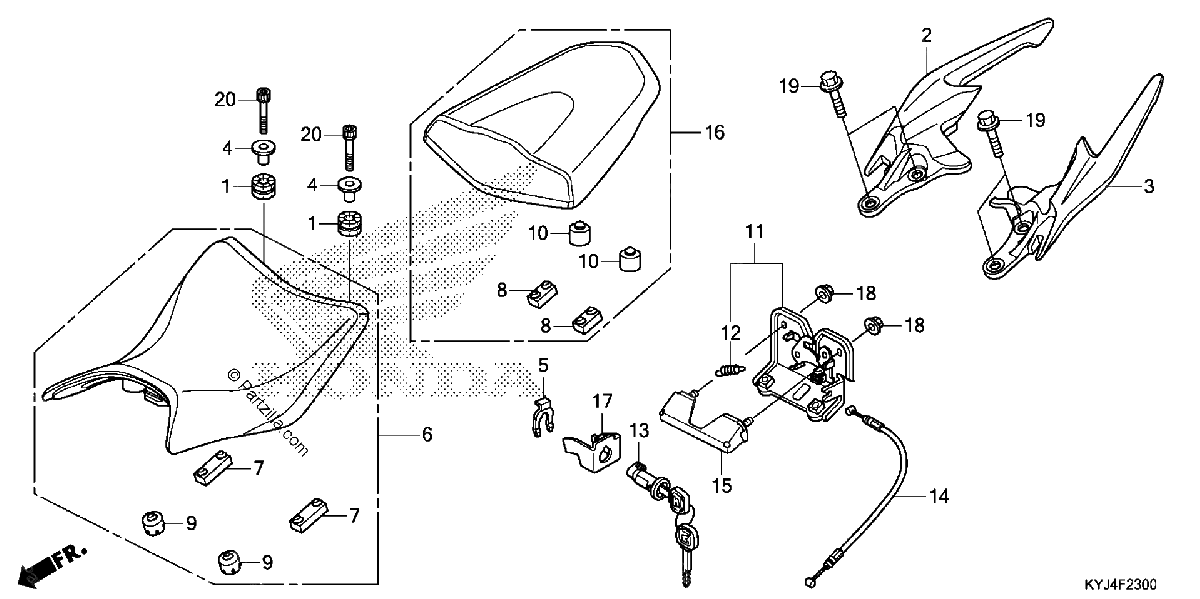

Diagrama de SEAT

Repuestos

#1
33705-KW7-900
RUBBER A, TAILLIGHT MOUNTING
$3.11¢1 556
1
#2
50315-KPP-T00ZA
GRIP, Right Rear. NH303M (MAT AXIS GRAY METALLIC)
$43.36¢21 681
1
#3
50325-KPP-T00ZA
GRIP, L Rear. NH303M (MAT AXIS GRAY METALLIC)
$46.48¢23 238
1
#4
61104-428-000
COLLAR, FR. FENDER
$5.96¢2 981
1
#5
75581-GN8-920
SPRING, LOCK KEY SETTING
$5.81¢2 906
1
#6
77100-KYJ-D20ZB
SEAT, SINGLE (TYPE1)
$107.11¢53 556
1
#7
77205-286-000
RUBBER B, SEAT SETTING
$6.41¢3 206
1
#8
77205-KPP-T00
RUBBER, SEAT SETTING
$2.66¢1 331
1
#9
77206-KPP-T00
RUBBER, SEAT CUSHION
$4.06¢2 031
1
#10
77207-KYJ-900
RUBBER, SEAT CUSHION
$5.60¢2 800
1
#11
77220-KYJ-900
LOCK, SEAT
No Disponible
1
#12
77234-GN2-000
SPRING, SEAT LOCK
$4.76¢2 381
1
#13
77239-KVB-900
KEY, SEAT LOCK
$55.81¢27 906
1
#14
77240-KYJ-900
CABLE, SEAT LOCK
$4.39¢2 194
1
#15
77250-KYJ-900
COVER, SEAT LOCK
$17.76¢8 881
1
#16
77300-KPP-T00
SEAT, PILLION
$56.35¢28 175
1
#17
77582-KPP-T00
STAY, SEAT LOCK CABLE
$3.81¢1 906
1
#18
94050-06080
NUT, FLANGE (6MM)
$0.80¢400
1
#19
95701-08020-00
BOLT, FLANGE (8X20)
$2.40¢1 200
1
#20
96600-06025-08
BOLT, SOCKET (6X25)
$1.79¢894
1
