REAR BRAKE MASTER CYLINDER CBR250R

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

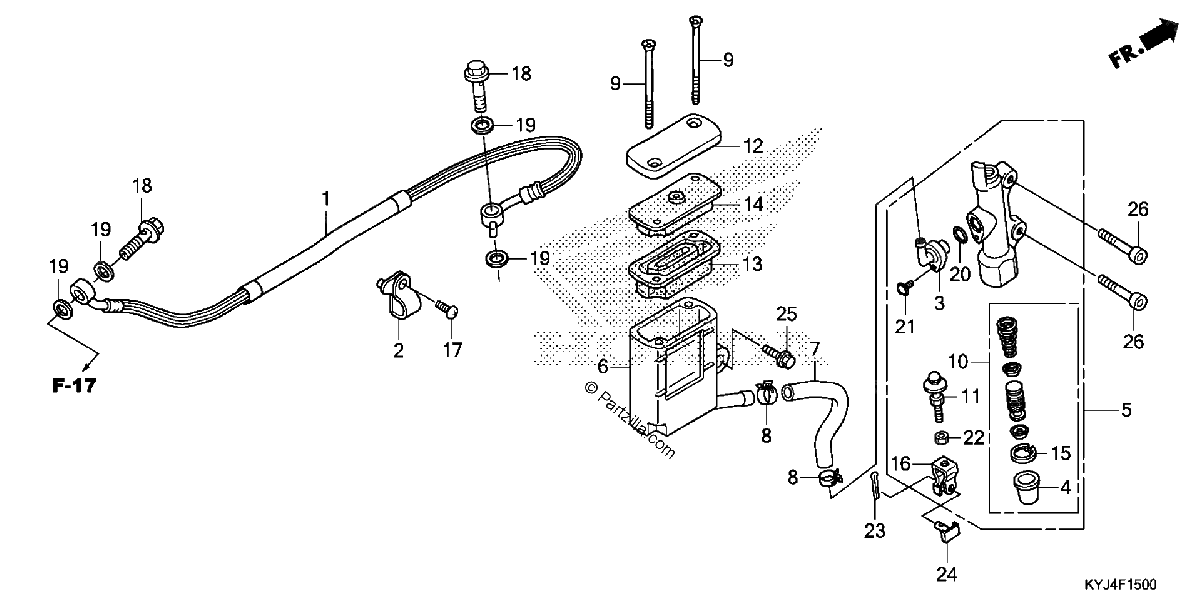

Diagrama de REAR BRAKE MASTER CYLINDER CBR250R

Repuestos

#1
43310-KYJ-D21
HOSE, RR. BRAKE
$30.29¢15 145
1
#2
43468-KFB-000
GUIDE, BRAKE HOSE
$5.52¢2 760
1
#3
43503-MR7-006
CONNECTOR
$15.00¢7 498
1
#4
43504-MB2-006
BOOT
$10.80¢5 399
1
#5
43510-KYJ-305
MASTER CYLINDER SUB-Assembly., Rear BRAKE (COO) (NISSIN)
$139.02¢69 512
1
#6
43511-KYJ-901
CUP, MASTER CYLINDER OIL
$7.34¢3 669
1
#7
43512-KYJ-901
HOSE, RR. MASTER CYLINDER
$7.01¢3 507
1
#8
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$14.02¢7 009
1
#9
43516-KYJ-901
SCREW, FLAT (4X60)
$1.07¢535
1
#10
43520-MB2-315
PISTON SET, MASTER CYLINDER (NISSIN)
$49.67¢24 834
1
#11
43530-KV3-701
ROD, PUSH
$23.49¢11 747
1
#12
45513-KWN-671
CAP, MASTER CYLINDER
$23.18¢11 592
1
#13
45520-GW0-911
DIAPHRAGM
$8.13¢4 065
1
#14
45521-GW0-911
PLATE, DIAPHRAGM
$6.39¢3 197
1
#15
46182-MEL-D21
CIRCLIP
$2.30¢1 150
1
#16
46504-MAL-601
JOINT, BRAKE ROD
$15.87¢7 935
1
#17
90104-KPP-900
SCREW, PAN (5X12)
$0.98¢489
1
#18
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#19
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#20
91212-422-006
O-RING (14.8X2.4)
$3.04¢1 518
1
#21
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#21
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#22
94002-08000-0S
NUT, HEX. (8MM)
$1.47¢736
1
#23
94201-20150
PIN, SPLIT (2.0X15)
$1.23¢615
1
#24
95015-54000
PIN D, JOINT
$4.74¢2 369
1
#25
96001-06014-07
BOLT, FLANGE (6X14)
$1.41¢707
1
#26
96600-06020-00
BOLT, SOCKET (6X20)
$1.53¢765
1
