FRONT BRAKE MASTER CYLINDER CBR250R

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

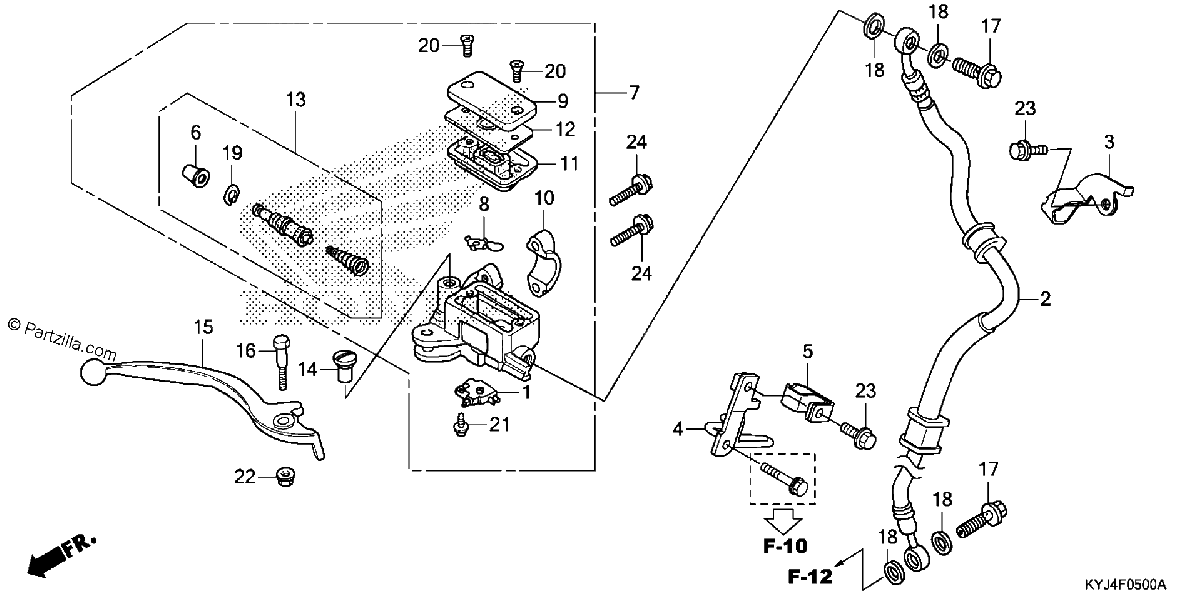

Diagrama de FRONT BRAKE MASTER CYLINDER CBR250R

Repuestos

#1
35340-MM5-600
SWITCH Assembly., Front STOP
$23.13¢11 563
1
#2
45125-KYJ-D21
HOSE, FR. BRAKE
$28.84¢14 421
1
#3
45155-KYJ-900
CLAMP, FR. BRAKE HOSE
$2.18¢1 092
1
#4
45156-KYJ-900
STAY, BRAKE HOSE CLAMP
$18.43¢9 217
1
#5
45157-KYJ-900
CLAMP B, FR. BRAKE HOSE
$2.18¢1 092
1
#6
45504-410-003
BOOT
$13.10¢6 549
1
#7
45510-KYJ-306
MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO)
No Disponible
1
#8
45512-MA6-006
PROTECTOR
$4.78¢2 392
1
#9
45513-HA2-006
CAP, MASTER CYLINDER
$29.42¢14 708
1
#10
45517-166-006
HOLDER, MASTER CYLINDER
$14.48¢7 239
1
#11
45520-MG7-006
DIAPHRAGM
$11.33¢5 664
1
#12
45521-HA2-006
PLATE, DIAPHRAGM
$11.59¢5 796
1
#13
45530-KVY-911
MASTER CYLINDER SET (NISSIN)
$30.56¢15 278
1
#14
53174-116-670
PLUG, HANDLE LEVER BRACKET
$2.94¢1 472
1
#15
53175-KYJ-305
LEVER, R. HANDLEBAR (COO)
$17.54¢8 769
1
#16
90114-166-006
BOLT, HANDLE LEVER PIVOT
$7.24¢3 622
1
#17
90145-MS9-612
BOLT, OIL (10X22)
$8.18¢4 088
1
#18
90545-300-000
WASHER, OIL BOLT
$4.46¢2 231
1
#19
90651-MA5-671
CIRCLIP
$2.85¢1 426
1
#20
93600-04012-0G
SCREW, FLAT (4X12)
$1.07¢535
1
#20
93600-04012-1G
SCREW, FLAT (4X12)
$1.07¢535
1
#21
93893-04012-07
SCREW-WASHER (4X12)
$1.59¢793
1
#21
93893-04012-17
SCREW-WASHER (4X12)
$1.59¢793
1
#22
94050-06000
NUT, FLANGE (6MM)
$0.74¢368
1
#23
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#24
96001-06022-07
BOLT, FLANGE (6X22)
$2.18¢1 092
1
