TURN SIGNAL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

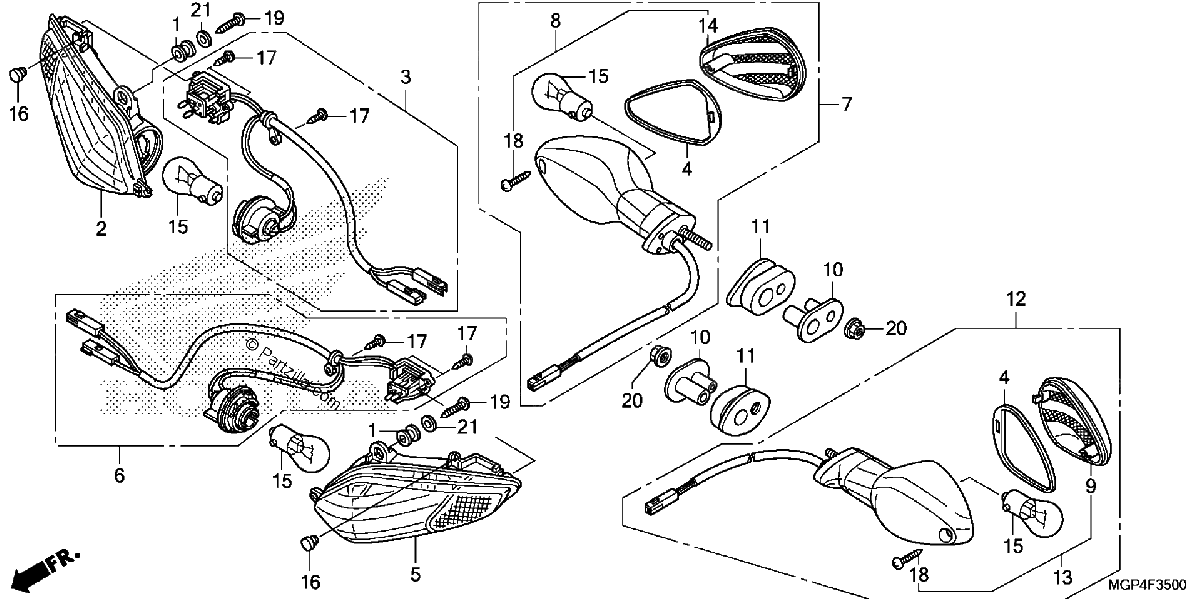

Diagrama de TURN SIGNAL

Repuestos

#001
18293-GN2-000
RUBBER, PROTECTOR GASKET
$3.65¢1 825
1
#1
18293-GN2-000
RUBBER, PROTECTOR GASKET
$3.65¢1 825
1
#002
33403-MFL-305
LENS, R. (COO)
$51.60¢25 800
1
#2
33403-MFL-305
LENS, R. (COO)
$51.60¢25 800
1
#002
33403-MFL-671
LENS, R.
$51.60¢25 800
1
#003
33405-MFL-671
SOCKET, R.
$92.44¢46 219
1
#3
33405-MFL-671
SOCKET, R.
$92.44¢46 219
1
#004
33407-MFJ-A41
GASKET, LENS
$4.04¢2 019
1
#4
33407-MFJ-A41
GASKET, LENS
$4.04¢2 019
1
#005
33453-MFL-305
LENS, L. (COO)
$51.60¢25 800
1
#5
33453-MFL-305
LENS, L. (COO)
$51.60¢25 800
1
#005
33453-MFL-671
LENS, L.
$51.60¢25 800
1
#6
33455-MFL-671
SOCKET, L.
$92.44¢46 219
1
#006
33455-MFL-671
SOCKET, L.
$92.44¢46 219
1
#007
33600-MFL-694
TURN SIGNAL Assembly., Right Rear. (12V 21W)
$163.78¢81 888
1
#7
33600-MFL-315
TURN SIGNAL ASSY., R. RR. (12V 21W) (COO)
$163.78¢81 888
1
#007
33600-MFL-315
TURN SIGNAL ASSY., R. RR. (12V 21W) (COO)
$163.78¢81 888
1
#7
33600-MFL-305
TURN SIGNAL ASSY., R. RR. (12V 21W) (COO)
$163.78¢81 888
1
#007
33600-MFL-305
TURN SIGNAL ASSY., R. RR. (12V 21W) (COO)
$163.78¢81 888
1
#008
33602-MFL-307
LENS SCREW SET, R. TURN SIGNAL (COO)
$14.96¢7 481
1
#8
33602-MFL-307
LENS SCREW SET, R. TURN SIGNAL (COO)
$14.96¢7 481
1
#008
33652-MFL-307
LENS SCREW SET, L. TURN SIGNAL (COO)
$14.96¢7 481
1
#8
33652-MFL-307
LENS SCREW SET, L. TURN SIGNAL (COO)
$14.96¢7 481
1
#9
33652-MFL-405
LENS, L. TURN SIGNAL (COO)
$14.96¢7 481
1
#9
33602-MFL-307
LENS SCREW SET, R. TURN SIGNAL (COO)
$14.96¢7 481
1
#009
33652-MFL-405
LENS, L. TURN SIGNAL (COO)
$14.96¢7 481
1
#9
33652-MFL-307
LENS SCREW SET, L. TURN SIGNAL (COO)
$14.96¢7 481
1
#009
33652-MFL-307
LENS SCREW SET, L. TURN SIGNAL (COO)
$14.96¢7 481
1
#009
33602-MFL-307
LENS SCREW SET, R. TURN SIGNAL (COO)
$14.96¢7 481
1
#009
33602-MFL-405
LENS, R. TURN SIGNAL (COO)
$14.96¢7 481
1
#9
33602-MFL-405
LENS, R. TURN SIGNAL (COO)
$14.96¢7 481
1
#010
33611-MEL-D20
COLLAR, TURN SIGNAL
$6.23¢3 113
1
#10
33611-MEL-D20
COLLAR, TURN SIGNAL
$6.23¢3 113
1
#011
33612-MEL-D20
RUBBER, TURN SIGNAL MOUNTING
$5.31¢2 656
1
#11
33612-MEL-D20
RUBBER, TURN SIGNAL MOUNTING
$5.31¢2 656
1
#12
33650-MFL-305
TURN SIGNAL ASSY., L. RR. (12V 21W) (COO)
$141.58¢70 788
1
#12
33650-MFL-315
TURN SIGNAL ASSY., L. RR. (12V 21W) (COO)
$141.58¢70 788
1
#012
33650-MFL-315
TURN SIGNAL ASSY., L. RR. (12V 21W) (COO)
$141.58¢70 788
1
#012
33650-MFL-694
TURN SIGNAL Assembly., L Rear. (12V 21W)
$141.58¢70 788
1
#012
33650-MFL-305
TURN SIGNAL ASSY., L. RR. (12V 21W) (COO)
$141.58¢70 788
1
#013
33652-MFL-307
LENS SCREW SET, L. TURN SIGNAL (COO)
$14.96¢7 481
1
#13
33652-MFL-307
LENS SCREW SET, L. TURN SIGNAL (COO)
$14.96¢7 481
1
#13
33602-MFL-307
LENS SCREW SET, R. TURN SIGNAL (COO)
$14.96¢7 481
1
#013
33602-MFL-307
LENS SCREW SET, R. TURN SIGNAL (COO)
$14.96¢7 481
1
#14
33652-MFL-405
LENS, L. TURN SIGNAL (COO)
$14.96¢7 481
1
#014
33652-MFL-405
LENS, L. TURN SIGNAL (COO)
$14.96¢7 481
1
#014
33602-MFL-307
LENS SCREW SET, R. TURN SIGNAL (COO)
$14.96¢7 481
1
#14
33652-MFL-307
LENS SCREW SET, L. TURN SIGNAL (COO)
$14.96¢7 481
1
#14
33602-MFL-307
LENS SCREW SET, R. TURN SIGNAL (COO)
$14.96¢7 481
1
#014
33602-MFL-405
LENS, R. TURN SIGNAL (COO)
$14.96¢7 481
1
#14
33602-MFL-405
LENS, R. TURN SIGNAL (COO)
$14.96¢7 481
1
#014
33652-MFL-307
LENS SCREW SET, L. TURN SIGNAL (COO)
$14.96¢7 481
1
#015
34905-MEJ-671
BULB, TURN SIGNAL (12V 21W)
$5.06¢2 531
1
#15
34905-MEJ-671
BULB, TURN SIGNAL (12V 21W)
$5.06¢2 531
1
#16
60107-752-000
RUBBER, FUEL LID STOPPER
$3.76¢1 881
1
#016
60107-752-000
RUBBER, FUEL LID STOPPER
$3.76¢1 881
1
#17
90101-MFL-641
SCREW, TAPPING (3X12)
$2.54¢1 269
1
#017
90101-MFL-641
SCREW, TAPPING (3X12)
$2.54¢1 269
1
#018
93901-34480
SCREW, TAPPING (4X16)
$1.06¢531
1
#18
93901-34480
SCREW, TAPPING (4X16)
$1.06¢531
1
#019
93913-24320
SCREW, TAPPING (4X14)
$1.13¢563
1
#19
93913-24320
SCREW, TAPPING (4X14)
$1.13¢563
1
#020
94050-06070
NUT, FLANGE (6MM)
$1.86¢931
1
#20
94050-06070
NUT, FLANGE (6MM)
$1.86¢931
1
#21
94103-04800
WASHER, PLAIN (4MM)
$1.27¢638
1
#021
94103-04800
WASHER, PLAIN (4MM)
$1.27¢638
1
