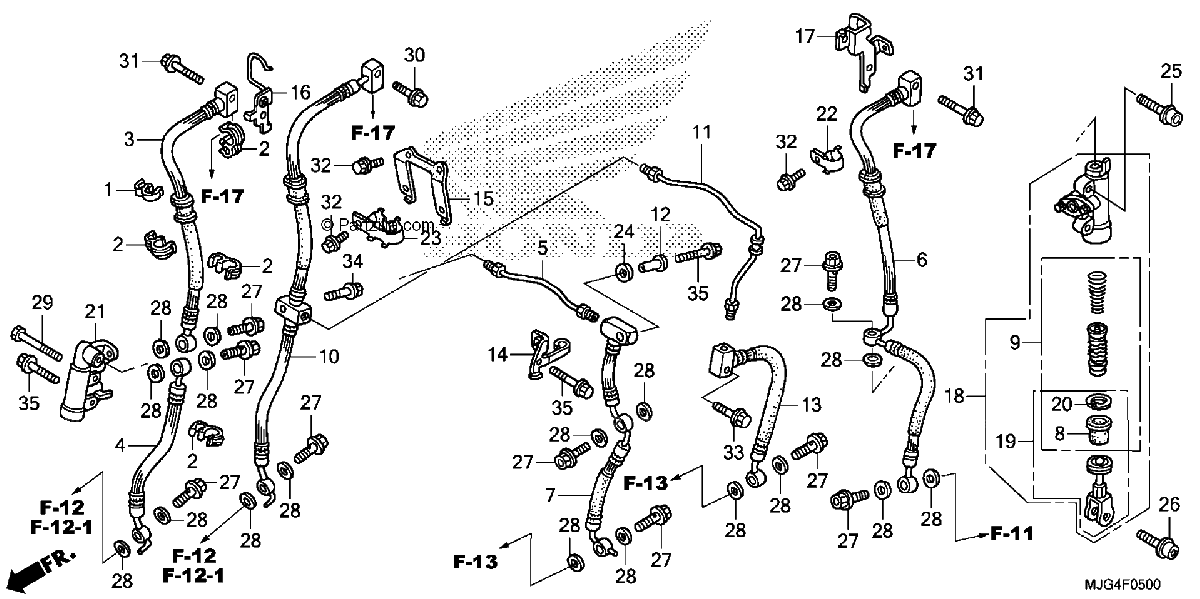

DELAY VALVE
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#3
SUB-HOSE A, BRAKE
$40.54¢20 269
#4
SUB-HOSE B, BRAKE
$50.13¢25 064
#5
SUB-PIPE B, BRAKE
$169.18¢84 588
#6
SUB-HOSE C, BRAKE
$78.43¢39 215
#7
SUB-HOSE D, BRAKE
$78.71¢39 353
#8
BOOT
$10.80¢5 399
#9
PISTON SET, MASTER CYLINDER
$73.20¢36 599
#10
MAIN HOSE B, FR. BRAKE
$117.77¢58 886
#11
MAIN PIPE B, FR. BRAKE
$31.34¢15 669
#12
COLLAR, FR. BRAKE HOSE
$8.91¢4 456
#13
MAIN HOSE C, FR. BRAKE
$43.99¢21 994
#14
STAY, FR. BRAKE PIPE
$7.73¢3 864
#15
STAY, FR. BRAKE HOSE CLAMP
$9.59¢4 796
#16
STAY, R. FR. BRAKE HOSE
$9.05¢4 525
#17
STAY, L. FR. BRAKE HOSE
$10.35¢5 175
#18
MASTER CYLINDER Assembly., SECOND (NISSIN) (CONTRLD PART:CONTACT TECHLINEOR USE TL CONNECT TO ORDER)
No Disponible
#19
JOINT SET, BRAKE ROD
$30.28¢15 140
#20
CIRCLIP
$2.30¢1 150
#21
VALVE ASSY., DELAY
$222.31¢111 153
#22
CLAMP A, BRAKE HOSE
$4.77¢2 386
#23
CLAMP B, BRAKE HOSE
$4.90¢2 449
#24
RUBBER, SEAT HINGE
$3.16¢1 581
#25
BOLT, FLANGE SOCKET (8X32)
$4.58¢2 289
#26
BOLT, TORX (8X25)
$4.36¢2 179
#27
BOLT, OIL (10X22)
$8.18¢4 088
#28
WASHER, OIL BOLT
$4.46¢2 231
#29
BOLT, HEX. (6X45)
No Disponible
#30
BOLT, FLANGE (6X25)
$2.13¢1 064
#31
BOLT, FLANGE (6X30)
$2.22¢1 110
#32
BOLT, FLANGE (6X12)
$2.13¢1 064
#33
BOLT, FLANGE (6X25)
$2.48¢1 242
#34
BOLT, FLANGE (6X25)
$1.59¢793
#35
BOLT, FLANGE (6X30)
$2.13¢1 064
