SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

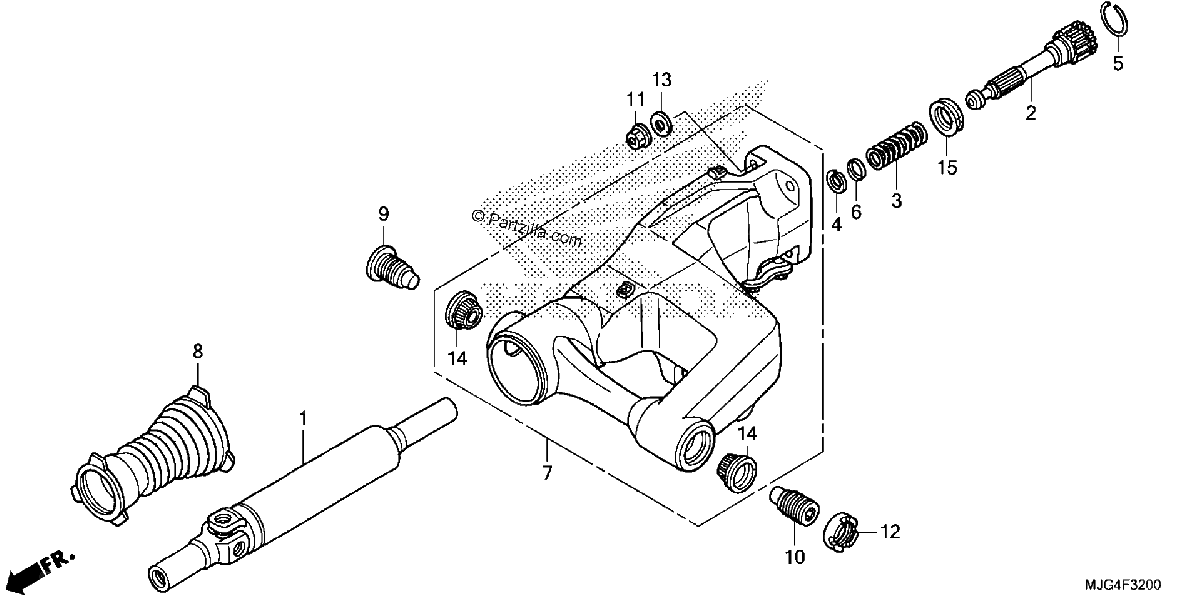

Diagrama de SWINGARM

Repuestos

#1
40200-MCA-A60
SHAFT, PROPELLER
$602.95¢301 475
1
#2
40202-MCA-010
JOINT, PROPELLER SHAFT
$200.43¢100 213
1
#3
40216-MCA-000
SPRING, PROPELLER SHAFT
$5.13¢2 563
1
#4
40219-MG9-000
CIRCLIP
$4.91¢2 456
1
#5
40221-MB0-000
RING, STOPPER
$5.47¢2 738
1
#6
40222-MG9-000
STOPPER, PROPELLER SHAFT
$6.45¢3 225
1
#7
52100-MCA-S40
SWINGARM ASSY., RR.
$2493.11¢1 246 556
1
#8
52104-MCA-000
BOOT, JOINT
$22.09¢11 044
1
#9
90121-MCA-000
BOLT, R. SWINGARM PIVOT
$34.20¢17 100
1
#10
90122-MCA-000
BOLT, L. SWINGARM PIVOT
$34.20¢17 100
1
#11
90309-375-003
NUT, FLANGE (12MM)
$10.08¢5 038
1
#12
90355-MCA-000
NUT, SWINGARM PIVOT
$16.19¢8 094
1
#13
90440-GT4-970
WASHER, PLAIN (12MM)
$3.36¢1 681
1
#14
91066-MCA-003
BEARING, TAPER ROLLER (25X47X15)
$35.17¢17 588
1
#15
91261-ME9-005
OIL SEAL (27X43X7)
$14.09¢7 044
1
