HANDLEBAR TOP BRIDGE

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

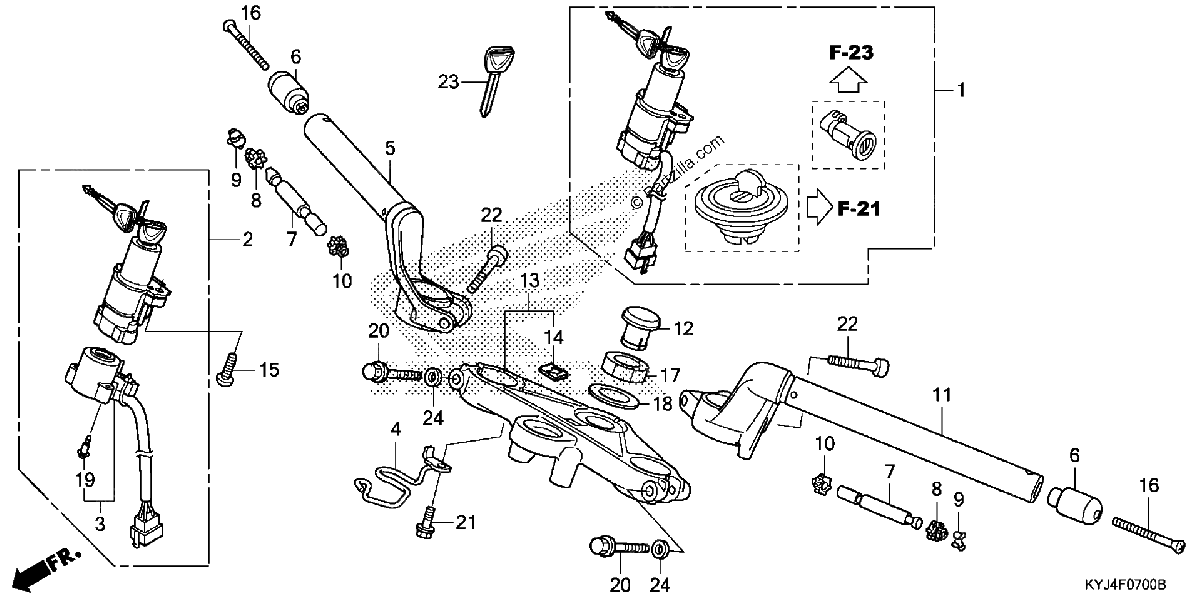

Diagrama de HANDLEBAR TOP BRIDGE

Repuestos

#1
35010-KYJ-900
LOCK SET
$337.76¢168 881
1
#2
35100-KYJ-901
SWITCH ASSY., COMBINATION LOCK
$140.39¢70 194
1
#3
35101-KYJ-901
BASE, CONTACT
$50.82¢25 412
1
#4
45158-KYJ-900
GUIDE, Front BRAKE HOSE
$7.41¢3 706
1
#5
53100-KYJ-305
HANDLEBAR, R. (COO)
$45.11¢22 556
1
#6
53103-KYJ-900
WEIGHT A, HANDLEBAR
$8.09¢4 044
1
#7
53104-KYJ-900
WEIGHT B, HANDLEBAR
$8.10¢4 050
1
#8
53107-MJ0-000
RUBBER B, HANDLE WEIGHT
$4.58¢2 288
1
#9
53108-MJ0-000
RING, HANDLE WEIGHT SNAP
$6.23¢3 113
1
#10
53109-MV4-000
RUBBER B, HANDLE WEIGHT
$3.44¢1 719
1
#11
53150-KYJ-305
HANDLEBAR, L. (COO)
$45.11¢22 556
1
#12
53232-KYJ-900
CAP, STEERING STEM
$1.93¢963
1
#13
53300-KYJ-900
BRIDGE, FORK TOP
$96.54¢48 269
1
#14
86150-KPG-901
EMBLEM, PRODUCT (MARUI)
$4.39¢2 194
1
#14
86150-KPG-902
EMBLEM, PRODUCT (UEHARA)
$5.16¢2 581
1
#14
86150-KTJ-C60
EMBLEM, PRODUCT (SHINKO)
$5.14¢2 569
1
#15
90107-MBG-000
BOLT, ONE-WAY (8MM)
$3.65¢1 825
1
#16
90191-KYJ-900
SCREW, OVAL (6X50)
$1.27¢638
1
#17
90304-KGA-900
NUT, STEERING STEM
$3.69¢1 844
1
#18
90503-KGA-900
WASHER, STEERING STEM
$1.93¢963
1
#19
91059-KY2-711
SCREW, TAPPING (3X16)
$3.65¢1 825
1
#20
95701-08045-07
BOLT, FLANGE (8X45)
$2.79¢1 394
1
#21
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#22
96600-08032-07
BOLT, SOCKET (8X32)
$1.80¢900
1
#23
35121-MAS-G01
KEY, BLANK
$14.79¢7 394
1
#24
94102-08000
WASHER, PLAIN (8MM)
$1.15¢575
1
