CYLINDER HEAD

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

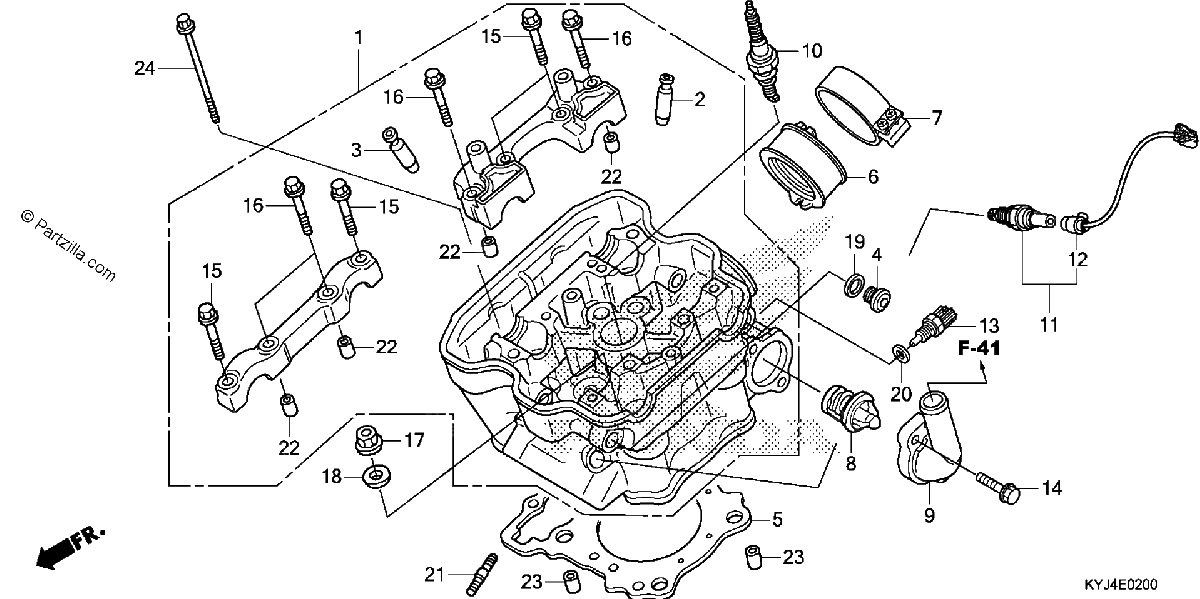

Diagrama de CYLINDER HEAD

Repuestos

#1
12010-KYJ-900
CYLINDER HEAD ASSY.
$289.91¢144 956
1
#2
12204-KYJ-305
GUIDE, VALVE (OVER SIZE)
$22.50¢11 250
1
#3
12205-KYJ-305
GUIDE, EX. VALVE (OVER SIZE)
$22.50¢11 250
1
#4
12207-KYJ-900
BOLT, SEALING (12MM)
$1.90¢950
1
#5
12251-KYJ-901
GASKET, CYLINDER HEAD
$26.26¢13 131
1
#6
16211-KYJ-901
INSULATOR, THROTTLE BODY
$12.48¢6 238
1
#7
16217-KYJ-900
BAND, INSULATOR
$6.99¢3 494
1
#8
19300-KGF-911
THERMOSTAT
$65.46¢32 731
1
#9
19321-KYJ-900
COVER, THERMOSTAT
$21.13¢10 563
1
#10
31916-MEH-003
SPARK PLUG (SIMR8A9) (NGK)
$21.36¢10 681
1
#11
36532-KYJ-901
SENSOR, OXYGEN
$120.20¢60 100
1
#12
36533-KYJ-900
WIRE, OXYGEN SENSOR
$111.86¢55 931
1
#13
37870-KRJ-901
SENSOR ASSY., WATER TEMPERATURE
$35.96¢17 981
1
#14
90011-KYJ-900
BOLT, FLANGE (6X22)
$0.61¢306
1
#15
90017-KYJ-900
BOLT, FLANGE (6X32)
$0.99¢494
1
#16
90019-KYJ-900
BOLT, FLANGE (6X39.5)
$1.06¢531
1
#17
90204-634-000
NUT, FLANGE (10MM)
$1.90¢950
1
#17
94030-10000-07
NUT, HEX. (10MM)
$1.90¢950
1
#17
94050-10000
NUT, FLANGE (10MM)
$1.90¢950
1
#18
90410-GCC-000
WASHER (10MM)
$2.76¢1 381
1
#19
90418-KYJ-900
WASHER (12.2X17X1.5)
$1.21¢606
1
#20
90454-MC7-000
WASHER, SPECIAL (12MM)
$3.36¢1 681
1
#21
92900-08022-3E
BOLT, STUD (8X22)
$2.97¢1 487
1
#22
90702-KRM-840
PIN, DOWEL (8X14)
$0.86¢431
1
#22
91105-KSP-910
PIN, DOWEL (8X14)
$0.86¢431
1
#22
94301-08140
PIN, DOWEL (8X14)
$2.89¢1 444
1
#23
94301-12160
PIN A, DOWEL (12X16)
$2.92¢1 463
1
#24
95701-06120-00
BOLT, FLANGE (6X120)
$1.39¢694
1
