SIDE COVER REAR COWL

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

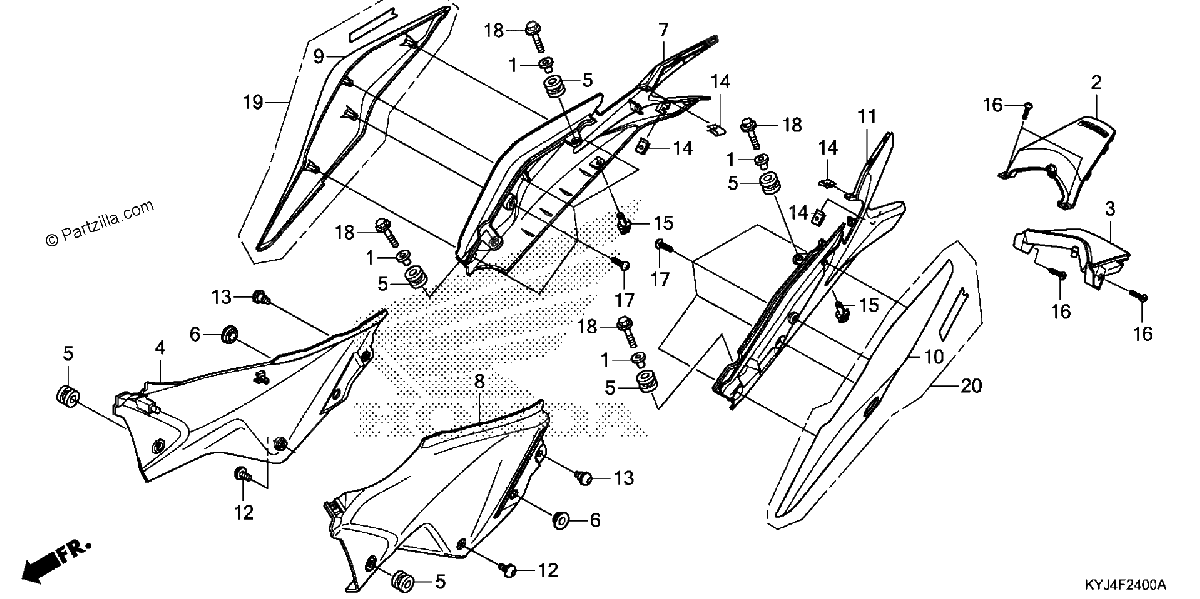

Diagrama de SIDE COVER REAR COWL

Repuestos

#1
17232-KYJ-900
COLLAR, AIR CLEANER MOUNTING
$1.03¢518
1
#2
83450-KPP-T00ZA
COWL SET, RR. CENTER (UPPER) (TYPE1) (WL)
$25.13¢12 564
1
#3
83501-KPP-T00
COWL, Rear CENTER (LOWER)
$12.33¢6 164
1
#4
83510-KYJ-900
COVER, Right SIDE
$45.11¢22 557
1
#5
83545-KCJ-690
RUBBER, SIDE COVER
$1.66¢828
1
#6
83551-GE2-000
GROMMET, AIR CLEANER HOUSING
$6.27¢3 134
1
#7
83600-KPP-T00
COWL, R. RR.
$34.82¢17 411
1
#8
83610-KYJ-900
COVER, L. SIDE
$40.27¢20 137
1
#11
83700-KPP-T00
COWL, L Rear.
$34.82¢17 411
1
#12
90132-KPP-T00
SCREW, PAN (6X10)
$1.02¢512
1
#13
90133-KPP-T00
SCREW, PAN (6X14)
$1.51¢753
1
#14
90344-KTE-910
NUT, CLIP (4MM)
$1.12¢558
1
#15
90683-GAZ-003
CLIP, TRIM
$4.24¢2 122
1
#16
93903-24380
SCREW, TAPPING (4X12)
$1.07¢535
1
#17
93903-25280
SCREW, TAPPING (5X12)
$1.53¢765
1
#18
95701-06020-08
BOLT, FLANGE (6X20)
$0.44¢218
1
#19
83620-KTY-D70ZA
COVER SET, R. RR. *YR271* (WL) (NITRIC ORANGE)
$46.39¢23 196
1
#20
83630-KTY-D70ZA
COVER SET, L. RR. *YR271* (WL) (NITRIC ORANGE)
$43.58¢21 792
1
