SWINGARM

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

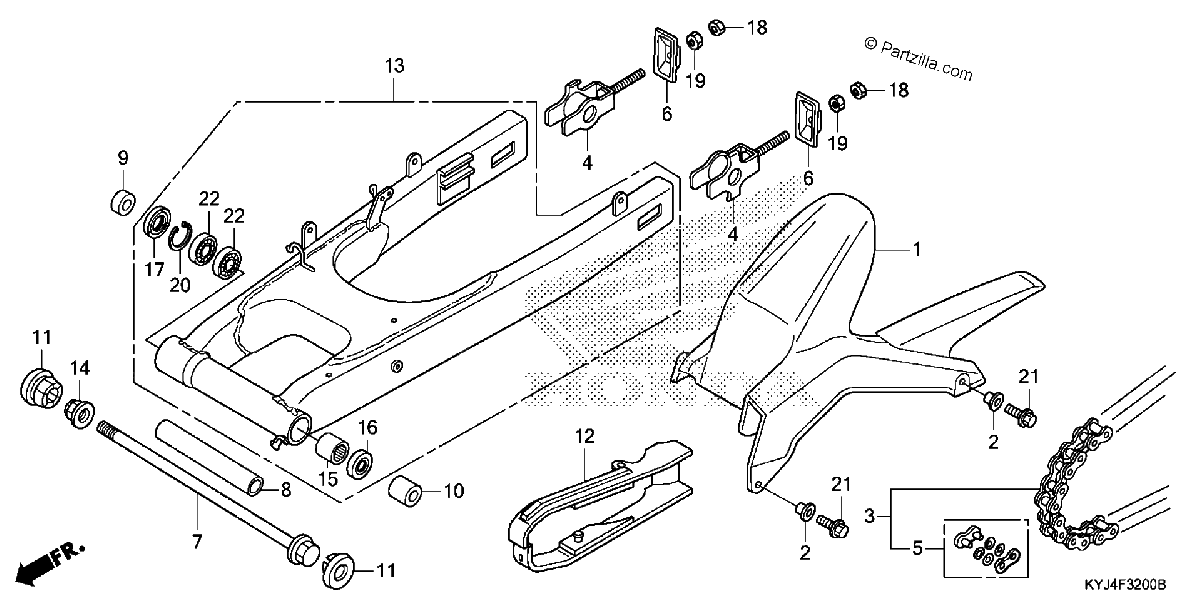

Diagrama de SWINGARM

Repuestos

#1
40510-KYJ-900
CASE, DRIVE CHAIN
$38.56¢19 281
1
#2
40511-KYJ-900
COLLAR
$0.76¢381
1
#3
40540-KYJ-901
CHAIN, DRIVE (RK520KLO-120LJFZ) (RK EXCEL)
$160.88¢80 438
1
#3
40540-KYJ-902
CHAIN, DRIVE (DID520VF-120ZB) (DAIDO)
$160.88¢80 438
1
#4
40543-KYJ-900
ADJUSTER, CHAIN
$9.61¢4 806
1
#5
40545-KYJ-901
MASTER LINK (RK EXCEL)
$16.90¢8 450
1
#5
40545-KYJ-902
MASTER LINK (DAIDO)
$16.90¢8 450
1
#6
40546-KYJ-M60
CAP, SWINGARM END
$7.48¢3 738
1
#7
52101-KYJ-900
BOLT, SWINGARM PIVOT
$18.75¢9 375
1
#8
52102-ML4-000
COLLAR, PIVOT DISTANCE
$35.99¢17 994
1
#9
52105-MJ0-000
COLLAR B, SWINGARM PIVOT
$7.24¢3 619
1
#10
52106-KYJ-900
COLLAR, PIVOT
$16.21¢8 106
1
#11
52161-KYJ-900
CAP, SWINGARM PIVOT
$1.79¢894
1
#12
52170-KYJ-900
SLIDER, CHAIN
$8.05¢4 025
1
#13
52200-KYJ-M60
SWINGARM SUB-ASSY., RR.
$282.70¢141 350
1
#14
90305-KCJ-951
NUT, U (14MM) (FUJI SEIMITSU)
$7.56¢3 781
1
#15
91071-MJ0-003
BEARING, NEEDLE (22X29X30) (NTN)
$50.32¢25 162
1
#15
91071-MJ0-004
BEARING, NEEDLE (THOMPSON)
$42.77¢21 388
1
#15
91072-KYJ-711
BEARING, NEEDLE (22X29X30) (NRB)
$42.77¢21 388
1
#16
91205-965-003
OIL SEAL (22X31X5) (ARAI)
$7.04¢3 519
1
#17
91213-MB2-003
DUST SEAL (22X35X7) (ARAI)
$9.04¢4 519
1
#17
91213-MB2-006
DUST SEAL (22X35X7) (NOK)
$9.04¢4 519
1
#18
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#19
94031-08000
NUT, HEX. (8MM)
$1.38¢688
1
#20
94520-35000
CIRCLIP, INNER (35MM)
$2.50¢1 250
1
#21
95701-06012-07
BOLT, FLANGE (6X12)
$2.09¢1 044
1
#22
96100-62020-10
BEARING, RADIAL BALL (6202)
$16.95¢8 475
1
