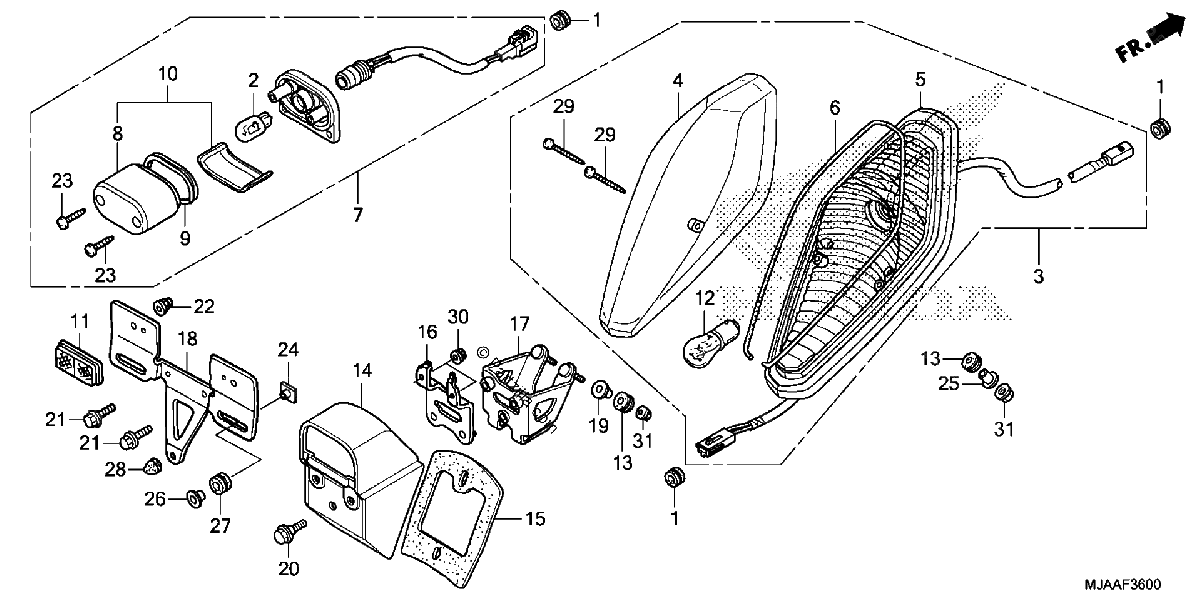

TAILLIGHT 1
⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.
Repuestos
#1
GROMMET A, RR. COVER (8X16X6.6)
$3.65¢1 825
#2
BULB (12V 5W) (STANLEY)
$4.61¢2 306
#3
TAILLIGHT UNIT (12V 21/5W) (COO)
$144.71¢72 356
#4
LENS, TAILLIGHT (COO)
$36.59¢18 294
#5
BASE, TAILLIGHT
$65.82¢32 912
#6
GASKET, TAILLIGHT
$8.15¢4 075
#7
LIGHT ASSY., LICENSE (12V 5W) (COO)
$97.41¢48 706
#8
COVER, LICENSE (COO)
$26.96¢13 481
#9
GASKET, LENS
$7.18¢3 588
#10
BASE, LICENSE LIGHT (COO)
$24.42¢12 212
#11
REFLECTOR, REFLEX
$33.85¢16 925
#12
BULB, TAIL/STOP LIGHT (12V 21/5W) (STANLEY)
$10.96¢5 481
#13
RUBBER, RR. FENDER CUSHION
$2.63¢1 313
#14
BRACKET, LICENSE LIGHT
$62.47¢31 237
#15
RUBBER, LICENSE LIGHT CUSHION
$6.86¢3 431
#16
STAY, LICENSE LIGHT
$8.24¢4 119
#17
STAY, LICENSE LIGHT BASE
$28.01¢14 006
#18
BRACKET, NUMBER PLATE
$43.55¢21 775
#19
COLLAR, TAILLIGHT MOUNTING
$4.95¢2 475
#20
BOLT, FLANGE (6X12)
$3.40¢1 700
#21
BOLT, FLANGE (6X22) (NSHF)
$2.63¢1 313
#22
NUT, FLANGE CAP (5MM)
$6.79¢3 394
#23
SCREW, SPECIAL (4X25)
$1.99¢994
#24
NUT, SPECIAL (6X7)
$4.65¢2 325
#25
COLLAR, HEADLIGHT BRACKET
$5.42¢2 713
#26
WASHER (6.5X5.5)
$3.65¢1 825
#27
RUBBER, CONTROL BOX
$4.89¢2 444
#28
PLUG, CONE TYPE
$2.56¢1 281
#29
SCREW, TAPPING (4X30)
$2.85¢1 425
#30
NUT, FLANGE (4MM)
$1.57¢788
#31
NUT, FLANGE (6MM)
$0.80¢400
