REAR BRAKE MASTER CYLINDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

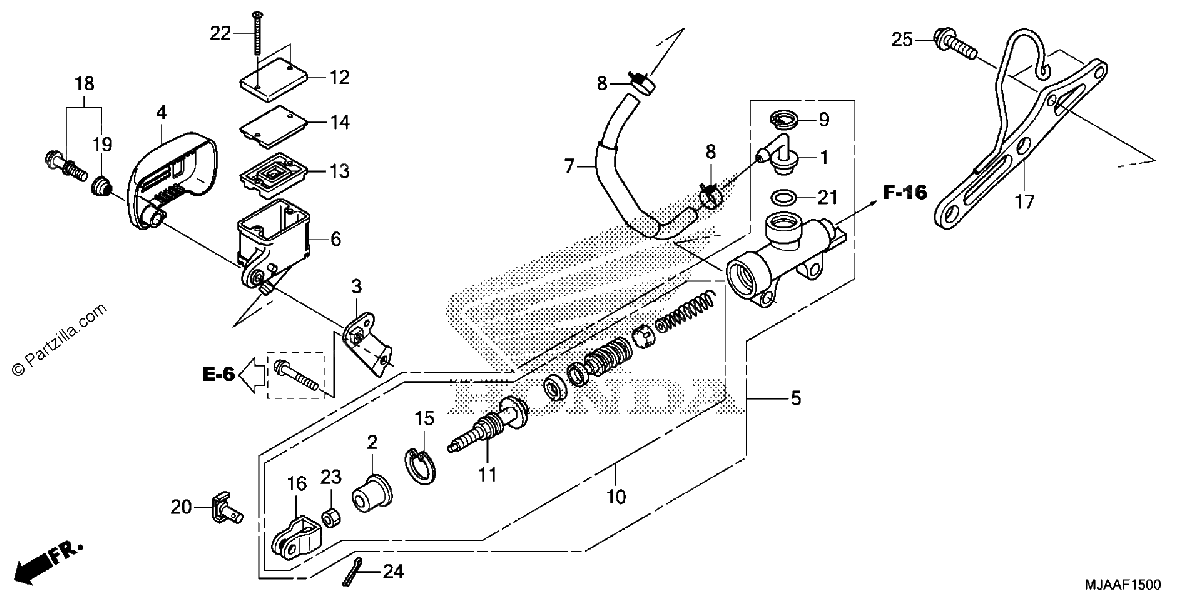

Diagrama de REAR BRAKE MASTER CYLINDER

Repuestos

#1
43503-KS6-701
CONNECTOR, MASTER CYLINDER
$11.65¢5 825
1
#2
43504-MB2-006
BOOT
$11.74¢5 869
1
#3
43505-MEG-H10
STAY, OIL CUP
$12.82¢6 413
1
#4
43506-MEG-H10
COVER, OIL CUP
$34.69¢17 344
1
#5
43510-MEG-H11
MASTER CYLINDER SUB-ASSY., RR.(NISSIN)
$242.36¢121 181
1
#5
43510-MJA-305
MASTER CYLINDER SUB-ASSY., RR. (COO) (NISSIN)
$242.36¢121 181
1
#6
43511-KV3-831
CUP, OIL
$27.52¢13 763
1
#7
43512-MEG-H11
HOSE, Rear MASTER CYLINDER
$43.11¢21 556
1
#8
43514-KS6-701
CLAMP, MASTER CYLINDER OIL HOSE
$15.24¢7 619
1
#9
43517-KS6-701
CIRCLIP, Rear MASTER CYLINDER
$4.63¢2 313
1
#10
43520-MEG-H11
PISTON SET, RR. MASTER CYLINDER
$115.00¢57 500
1
#11
43530-MW0-006
ROD, PUSH (NISSIN)
$39.49¢19 744
1
#12
45513-KK1-771
CAP, MASTER CYLINDER
$5.04¢2 519
1
#12
45513-HR0-305
CAP, MASTER CYLINDER (COO)
$5.04¢2 519
1
#13
45520-MG7-006
DIAPHRAGM
$12.31¢6 156
1
#14
45521-HA2-006
PLATE, DIAPHRAGM
$12.60¢6 300
1
#15
46182-MEL-D21
CIRCLIP
$2.50¢1 250
1
#16
46504-MAH-671
JOINT, BRAKE ROD
$18.40¢9 200
1
#17
50616-MEG-H10
BRACKET, Rear BRAKE MASTER CYLINDER
$72.02¢36 012
1
#18
90110-MEG-H10
BOLT ASSY., SPECIAL (6X26.6)
$28.44¢14 219
1
#19
90543-MBA-000
RUBBER, MOUNTING
$3.65¢1 825
1
#20
90751-MEH-000
PIN, JOINT
$4.20¢2 100
1
#21
91212-422-006
O-RING (14.8X2.4)
$3.30¢1 650
1
#22
93600-04040-1G
SCREW, FLAT (4X40)
$0.61¢306
1
#23
94002-08000-0S
NUT, HEX. (8MM)
$1.60¢800
1
#24
94201-20150
PIN, SPLIT (2.0X15)
$1.34¢669
1
#25
95701-06020-00
BOLT, FLANGE (6X20)
$2.27¢1 138
1
