FINAL DRIVEN GEAR

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

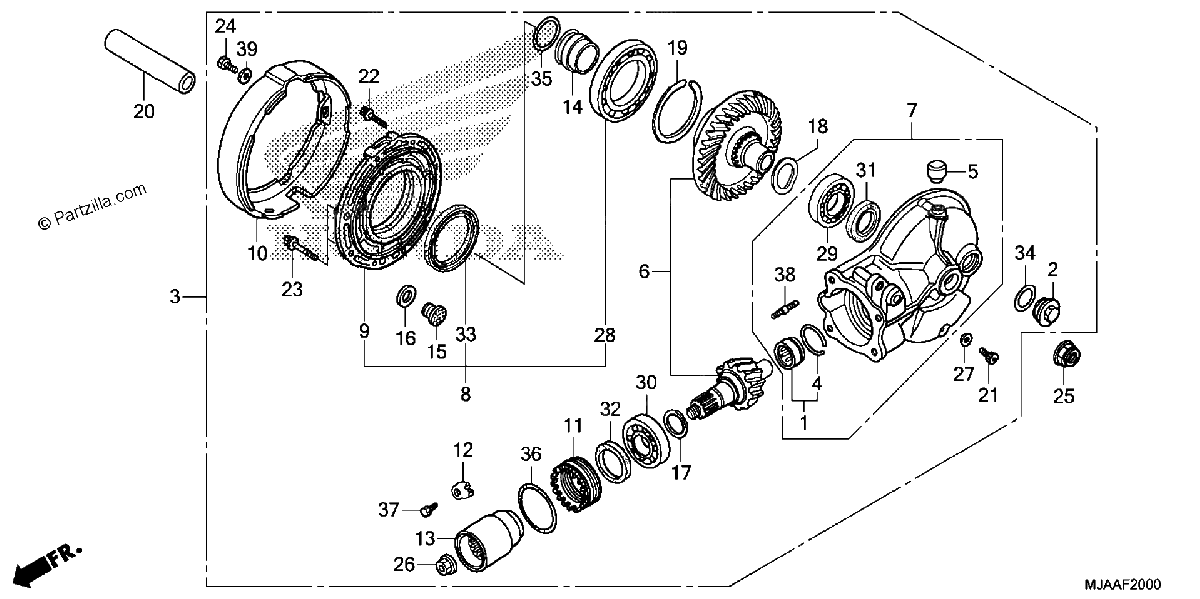

Diagrama de FINAL DRIVEN GEAR

Repuestos

#1
06910-MBL-610
BEARING SET, NEEDLE
$29.72¢14 858
1
#2
12361-371-980
CAP, VALVE ADJ.
No Disponible
1
#2
12361-035-000
CAP, TAPPET ADJUSTING HOLE
$11.51¢5 756
1
#2
12361-300-000
CAP, VALVE ADJ.
No Disponible
1
#3
41300-MEG-A60
GEAR Assembly., FINAL
$2196.58¢1 098 290
1
#4
41305-MB4-770
RING, STOPPER
$6.66¢3 329
1
#5
41306-MB0-020
CAP, BREATHER
$9.95¢4 974
1
#6
41310-MM8-305
GEAR SET, FINAL
$603.16¢301 582
1
#7
41311-MEG-010
CASE SET, FINAL
$1203.64¢601 818
1
#8
41320-MBL-611
COVER SUB-ASSY., FINAL GEAR
$241.50¢120 750
1
#9
41321-ME5-771
COVER, GEAR CASE
$175.77¢87 883
1
#10
41324-MAH-000
PLATE, DUST GUARD
$135.29¢67 643
1
#11
41331-ME9-010
RETAINER, BEARING
$156.91¢78 453
1
#12
41332-415-000
LOCK A, BEARING ADJUSTING (SINGLE TAB)
$2.98¢1 489
1
#12
41333-415-000
LOCK B, BEARING ADJUSTING (DOUBLE TABS)
$2.98¢1 489
1
#13
41410-ME9-770
JOINT, PINION
$173.30¢86 652
1
#14
41433-MB0-010
HOLDER, O-RING
$15.29¢7 648
1
#15
41436-MB0-310
PIN, RING GEAR STOPPER
$37.80¢18 900
1
#16
41437-MB0-310
SHIM A, STOPPER PIN (0.10)
$6.27¢3 134
1
#16
41438-MB0-310
SHIM B, STOPPER PIN (0.15)
$5.73¢2 864
1
#17
41450-MG8-000
SHIM A, PINION GEAR (1.82)
$8.84¢4 422
1
#17
41451-MG8-000
SHIM B, PINION GEAR (1.88)
$8.84¢4 422
1
#17
41452-MG8-000
SHIM C, PINION GEAR (1.94)
$8.43¢4 215
1
#17
41453-MG8-000
SHIM D, PINION GEAR (2.00)
$8.43¢4 215
1
#17
41454-MG8-000
SHIM E, PINION GEAR (2.06)
$8.43¢4 215
1
#17
41455-MG8-000
SHIM F, PINION GEAR (2.12)
$8.43¢4 215
1
#17
41456-MG8-000
SHIM G, PINION GEAR (2.18)
$8.43¢4 215
1
#18
41510-MB0-003
WASHER, SPECIAL (35X40)
$14.54¢7 268
1
#19
41535-MB0-000
SPACER F, RING GEAR (2.12)
$19.72¢9 861
1
#19
41538-MB0-000
SPACER I, RING GEAR (2.30)
$19.72¢9 861
1
#19
41537-MB0-000
SPACER H, RING GEAR (2.24)
$19.72¢9 861
1
#19
41536-MB0-000
SPACER G, RING GEAR (2.18)
$19.72¢9 861
1
#19
41533-MB0-000
SPACER D, RING GEAR (2.00)
$19.72¢9 861
1
#19
41534-MB0-000
SPACER E, RING GEAR (2.06)
$19.72¢9 861
1
#19
41532-MB0-000
SPACER C, RING GEAR (1.94)
$19.72¢9 861
1
#19
41531-MB0-000
SPACER B, RING GEAR (1.88)
$19.72¢9 861
1
#19
41530-MB0-000
SPACER A, RING GEAR (1.82)
$19.72¢9 861
1
#20
42625-MAH-000
COLLAR B, RR. DISTANCE
$43.64¢21 821
1
#21
90109-ME5-770
BOLT, SOCKET (8X11)
$6.39¢3 197
1
#22
90133-MEG-A60
BOLT, FLANGE (8X27)
$1.47¢736
1
#23
90134-MGE-000
BOLT, FLANGE (10X35)
$3.42¢1 708
1
#24
90170-MB0-000
BOLT, HEX. (6X16)
$3.01¢1 507
1
#25
90306-MCH-003
NUT, FLANGE (18MM)
$14.04¢7 021
1
#26
90381-MT3-000
NUT, HEX. (16MM)
$8.07¢4 036
1
#27
90471-580-000
GASKET (8MM)
$3.36¢1 679
1
#28
91051-MB0-005
BEARING, RADIAL BALL (16012C3)
$143.20¢71 599
1
#28
91051-MG8-005
BEARING, RADIAL BALL (16012C3)
$143.20¢71 599
1
#29
91052-MG8-005
BEARING, RADIAL BALL (57/34C3)
$54.75¢27 376
1
#29
91052-MB0-003
BEARING, RADIAL BALL (57/34C3)
$54.75¢27 376
1
#30
91061-MB0-005
BEARING, RADIAL BALL (6305)
$148.26¢74 129
1
#30
91061-MG8-005
BEARING, RADIAL BALL (6305) (KOYO)
$148.26¢74 129
1
#31
91261-MB0-003
OIL SEAL (34X50X7) (ARAI)
$12.96¢6 480
1
#31
91261-MB0-005
OIL SEAL (34X50X7) (NOK)
$12.96¢6 480
1
#32
91262-ME9-003
OIL SEAL (39X51X7) (ARAI)
$18.37¢9 183
1
#32
91262-ME9-005
OIL SEAL (39X51X7) (NOK)
$18.37¢9 183
1
#33
91265-MB0-003
OIL SEAL (60X80X8) (ARAI)
$16.46¢8 228
1
#34
91302-001-020
O-RING (30.8MM)
$4.17¢2 087
1
#35
91356-MB0-000
O-RING (35.5X2.4)
$3.74¢1 869
1
#35
91356-MB0-005
O-RING (35.2X2.4) (NOK)
$3.74¢1 869
1
#36
91359-MB0-000
O-RING (58.5X3.5)
$5.86¢2 932
1
#37
92101-06012-0A
BOLT, HEX. (6X12)
$1.68¢839
1
#38
92900-10032-0E
BOLT, STUD (10X32)
$4.36¢2 179
1
#39
94101-06800
WASHER, PLAIN (6MM)
$0.77¢385
1
