FRONT BRAKE MASTER CYLINDER 3

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

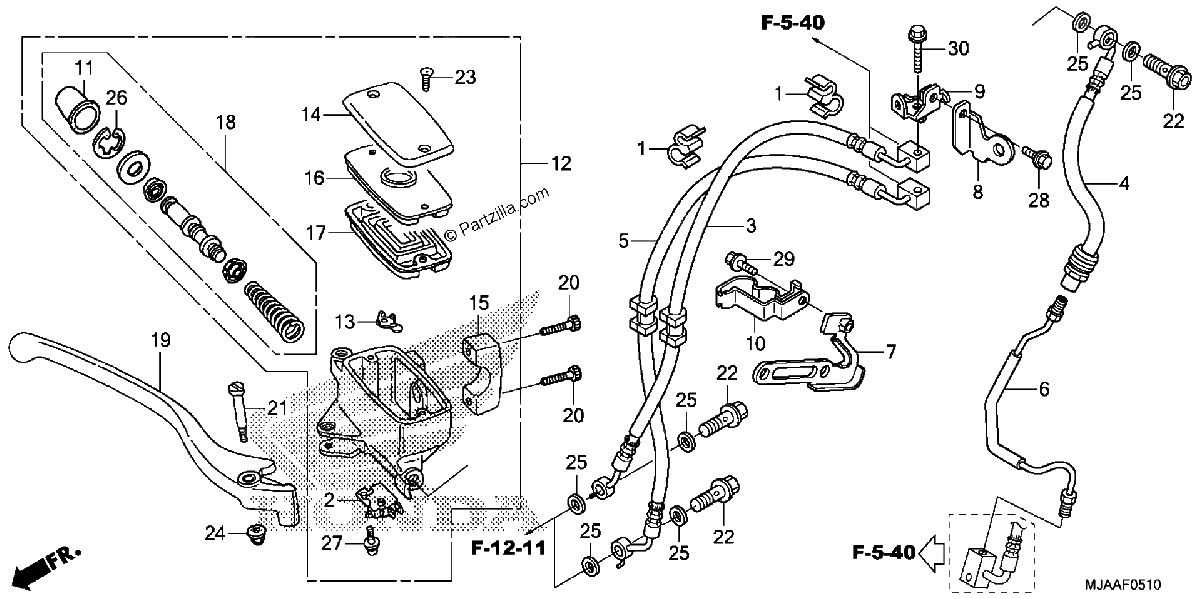

Diagrama de FRONT BRAKE MASTER CYLINDER 3

Repuestos

#1
11152-KS4-003
CLAMP, PIPE
$8.64¢4 319
1
#2
35340-MM5-600
SWITCH Assembly., Front STOP
$25.14¢12 569
1
#3
43316-MEG-H11
SUB-HOSE, RR. BRAKE
$174.65¢87 325
1
#4
45124-MEG-H11
HOSE A, FR. BRAKE
$117.88¢58 938
1
#5
45127-MEG-H11
HOSE B, FR. BRAKE
$152.46¢76 231
1
#6
45128-MEG-H10
PIPE C, FR. BRAKE
$34.51¢17 256
1
#7
45138-MEG-H10
BRACKET, R. FR. HOSE CLIP
$23.94¢11 969
1
#8
45155-MEG-H10
STAY A, FR. BRAKE HOSE
$19.20¢9 600
1
#9
45156-MEG-H10
STAY B, FR. BRAKE HOSE
$24.40¢12 200
1
#10
45357-MEG-H10
CLAMP, FR. BRAKE HOSE SENSOR
$24.24¢12 119
1
#11
45504-410-003
BOOT
$14.24¢7 119
1
#12
45510-MEG-305
MASTER CYLINDER SET, FR. BRAKE (COO) (NISSIN)
$262.40¢131 200
1
#13
45512-MA6-006
PROTECTOR
$5.20¢2 600
1
#14
45513-MM4-016
CAP, MASTER CYLINDER (NISSIN)
$23.79¢11 894
1
#15
45517-MEG-006
HOLDER, MASTER CYLINDER (NISSIN)
$13.38¢6 688
1
#16
45518-MM5-006
PLATE, DIAPHRAGM
$12.36¢6 181
1
#17
45520-MM5-006
DIAPHRAGM
$17.68¢8 838
1
#18
45530-MN9-305
MASTER CYLINDER SET
$58.92¢29 463
1
#19
53175-MFR-305
LEVER, R. HANDLE (COO)
$21.78¢10 888
1
#20
90101-MCL-000
BOLT, SOCKET (6X22)
$1.86¢931
1
#21
90114-MA5-671
BOLT, HANDLE LEVER PIVOT
$11.03¢5 513
1
#22
90145-MS9-612
BOLT, OIL (10X22)
$8.89¢4 444
1
#23
90158-MT7-000
SCREW, FLAT
$2.76¢1 381
1
#24
90201-415-000
NUT, CAP (6MM)
$2.76¢1 381
1
#25
90545-300-000
WASHER, OIL BOLT
$4.85¢2 425
1
#26
90651-MA5-671
CIRCLIP
$3.10¢1 550
1
#27
93893-04012-07
SCREW-WASHER (4X12)
$1.72¢862
1
#27
93893-04012-17
SCREW-WASHER (4X12)
$1.72¢862
1
#28
96001-06010-07
BOLT, FLANGE (6X10)
$2.09¢1 044
1
#29
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#30
96001-06032-07
BOLT, FLANGE (6X32)
$1.99¢994
1
