MUFFLER 1

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

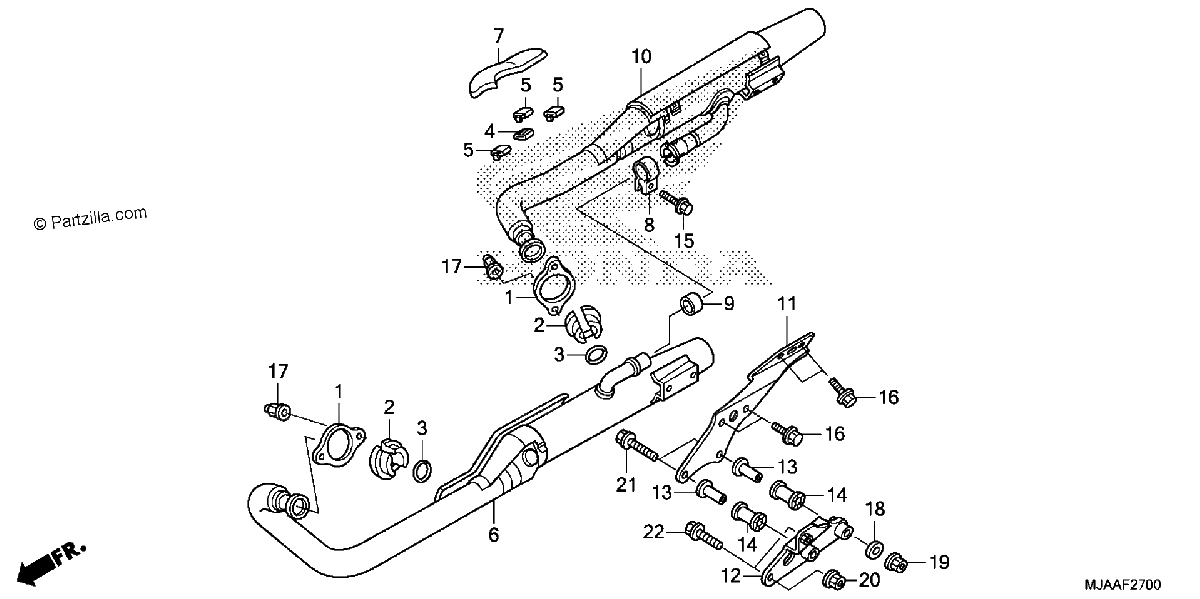

Diagrama de MUFFLER 1

Repuestos

#1
18231-MBA-003
JOINT, EX PIPE
$28.53¢14 266
1
#2
18233-MR1-010
COLLAR, EX PIPE JOINT
$11.30¢5 652
1
#3
18291-MM5-860
GASKET, EX. PIPE
$5.76¢2 881
1
#4
18293-MFE-B00
RUBBER, PROTECTOR GASKET
$3.53¢1 765
1
#5
18293-MN0-000
RUBBER, PROTECTOR
$2.53¢1 265
1
#6
18300-MEG-315
MUFFLER, Front. (COO)
$1961.64¢980 818
1
#7
18315-MGR-671
PROTECTOR, RR. EX.
$156.01¢78 005
1
#8
18374-ML4-003
BAND, L EX PIPE
$17.49¢8 746
1
#9
18391-ML8-000
GASKET, MUFFLER
$9.90¢4 951
1
#10
18400-MEG-315
MUFFLER, RR. (COO)
$1726.07¢863 035
1
#11
18415-MFE-670
STAY, MUFFLER
$61.97¢30 987
1
#12
18455-MFE-670
BRACKET, MUFFLER
$122.87¢61 433
1
#13
50607-KK6-000
COLLAR, MOUNTING RUBBER
$9.82¢4 910
1
#14
50608-KK6-000
RUBBER, MUFFLER MOUNTING
$8.69¢4 347
1
#15
90125-MGR-670
BOLT, FLANGE (8X32)
$3.60¢1 800
1
#16
90166-S87-A00
BOLT, FLANGE (8X16)
$0.83¢414
1
#17
90304-ME1-670
NUT, CAP (8MM)
$6.64¢3 318
1
#18
90534-011-000
WASHER (8.3MM)
$1.75¢874
1
#19
94050-08070
NUT, FLANGE (8MM)
$1.77¢886
1
#20
90303-428-900
NUT, FLANGE (10MM)
$3.74¢1 869
1
#20
94050-10070
NUT, FLANGE (10MM)
$3.74¢1 869
1
#21
95701-08055-07
BOLT, FLANGE (8X55)
$2.18¢1 092
1
#22
95701-10050-07
BOLT, FLANGE (10X50)
$2.18¢1 092
1
