REAR FENDER 2

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

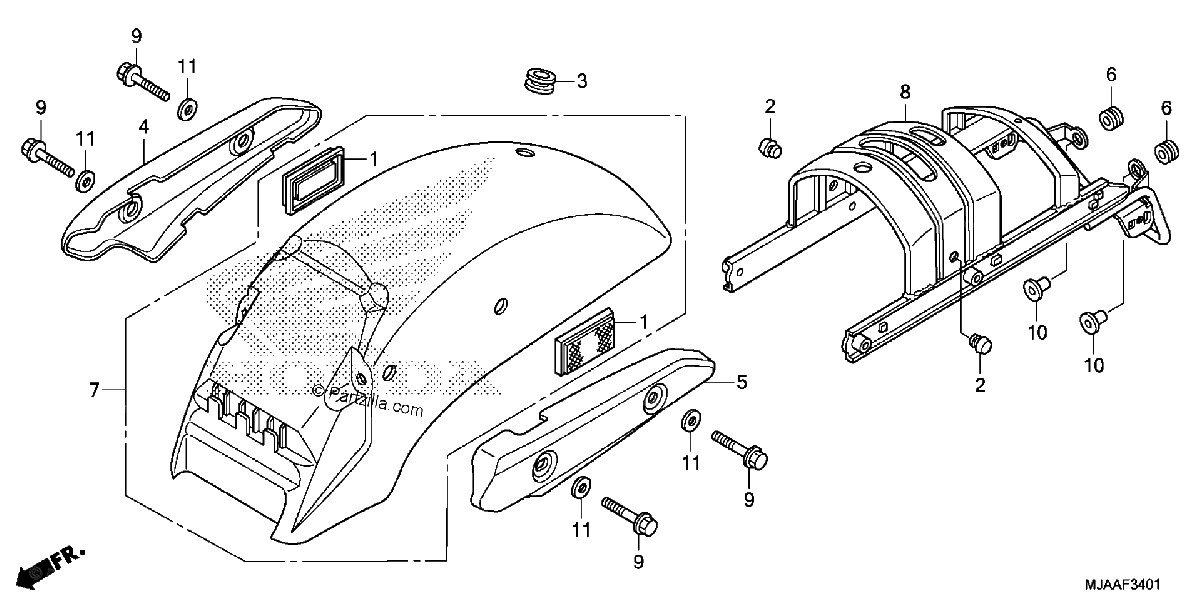

Diagrama de REAR FENDER 2

Repuestos

#001
33741-MEG-671
REFLECTOR, RR. SIDE REFLEX
$12.71¢6 356
1
#1
33741-MEG-671
REFLECTOR, RR. SIDE REFLEX
$12.71¢6 356
1
#2
50354-428-000
RUBBER B, STOPPER
$3.65¢1 825
1
#002
50354-428-000
RUBBER B, STOPPER
$3.65¢1 825
1
#003
53111-HE0-000
GROMMET B, STEERING
$5.47¢2 738
1
#3
53111-HE0-000
GROMMET B, STEERING
$5.47¢2 738
1
#004
77330-MFE-A40
COVER, R. RR. CUSHION BRACKET
$151.02¢75 512
1
#4
77330-MFE-A40
COVER, R. RR. CUSHION BRACKET
$151.02¢75 512
1
#005
77340-MFE-A40
COVER, L. RR. CUSHION BRACKET
$151.02¢75 512
1
#5
77340-MFE-A40
COVER, L. RR. CUSHION BRACKET
$151.02¢75 512
1
#6
80101-310-000
RUBBER, RR. FENDER CUSHION
$2.63¢1 313
1
#006
80101-310-000
RUBBER, RR. FENDER CUSHION
$2.63¢1 313
1
#007
80110-MJA-H40ZA
FENDER SET, RR. (TYPE1) (WL)
$479.88¢239 938
1
#7
80110-MJA-H40ZA
FENDER SET, RR. (TYPE1) (WL)
$479.88¢239 938
1
#8
80125-MFE-670
FRAME, Rear.
$389.90¢194 950
1
#008
80125-MFE-670
FRAME, Rear.
$389.90¢194 950
1
#009
90108-MEG-000
BOLT, SPECIAL FLANGE (10X40)
$4.74¢2 369
1
#9
90108-MEG-000
BOLT, SPECIAL FLANGE (10X40)
$4.74¢2 369
1
#10
90502-GG2-000
COLLAR, RR. FENDER
$6.96¢3 481
1
#010
90502-GG2-000
COLLAR, RR. FENDER
$6.96¢3 481
1
#11
90502-MM8-610
WASHER, PLAIN (10MM)
$3.65¢1 825
1
#011
90502-MM8-610
WASHER, PLAIN (10MM)
$3.65¢1 825
1
