SADDLEBAG

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

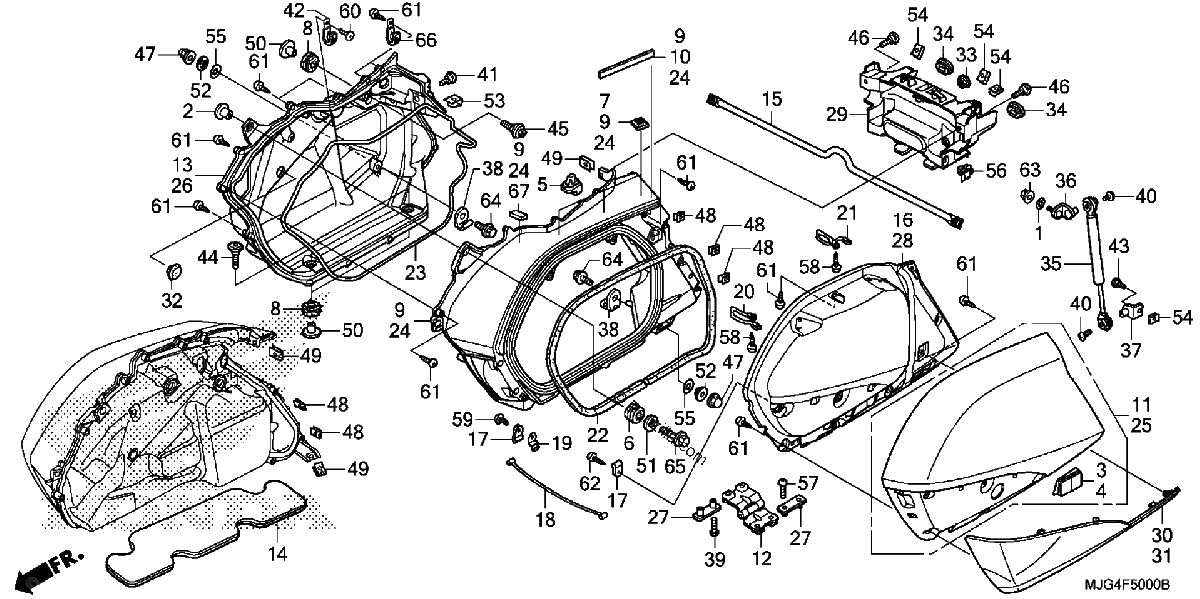

Diagrama de SADDLEBAG

Repuestos

#001
15142-PE0-000
O-RING (4.8X1.9)
$3.75¢1 875
1
#1
15142-PE0-000
O-RING (4.8X1.9)
$3.75¢1 875
1
#002
19052-KA3-710
COLLAR, RADIATOR MOUNTING
$8.39¢4 194
1
#2
19052-KA3-710
COLLAR, RADIATOR MOUNTING
$8.39¢4 194
1
#3
33740-MJG-670ZB
REFLECTOR, Right. R201 (MAGNA RED)
$50.19¢25 094
1
#003
33740-MJG-670ZB
REFLECTOR, Right. R201 (MAGNA RED)
$50.19¢25 094
1
#3
33740-MJG-670ZC
REFLECTOR, Right. NHB01 NHRAPHITE BLACK)
$50.19¢25 094
1
#003
33740-MJG-670ZC
REFLECTOR, Right. NHB01 NHRAPHITE BLACK)
$50.19¢25 094
1
#004
33745-MJG-670ZC
REFLECTOR, Left NHB01 NHRAPHITE BLACK)
$50.19¢25 094
1
#4
33745-MJG-670ZB
REFLECTOR, Left R201 (MAGNA RED)
$50.19¢25 094
1
#004
33745-MJG-670ZB
REFLECTOR, Left R201 (MAGNA RED)
$50.19¢25 094
1
#4
33745-MJG-670ZC
REFLECTOR, Left NHB01 NHRAPHITE BLACK)
$50.19¢25 094
1
#5
39115-TK6-003
CLIP, USB CONNECTOR HOLDER (A)
$1.51¢756
1
#005
39115-TK6-003
CLIP, USB CONNECTOR HOLDER (A)
$1.51¢756
1
#6
61320-KZ9-000
RUBBER, HEADLIGHT GUARD
$6.19¢3 094
1
#006
61320-KZ9-000
RUBBER, HEADLIGHT GUARD
$6.19¢3 094
1
#007
64243-MEW-920
FASTENER B, DUAL LOCK (20X20)
$3.65¢1 825
1
#7
64243-MEW-920
FASTENER B, DUAL LOCK (20X20)
$3.65¢1 825
1
#8
80201-MCA-000
RUBBER, SADDLEBAG MOUNTING
$18.27¢9 138
1
#008
80201-MCA-000
RUBBER, SADDLEBAG MOUNTING
$18.27¢9 138
1
#9
81210-MJG-671ZB
SADDLEBAG, Right. NHB01 NHRAPHITE BLACK)
$1545.29¢772 644
1
#009
81210-MJG-671ZB
SADDLEBAG, Right. NHB01 NHRAPHITE BLACK)
$1545.29¢772 644
1
#009
81210-MJG-671ZA
SADDLEBAG, R. *R201* (MAGNA RED)
$1545.29¢772 644
1
#9
81210-MJG-671ZA
SADDLEBAG, R. *R201* (MAGNA RED)
$1545.29¢772 644
1
#010
81212-MJG-670
MAT, SADDLEBAG BODY
$3.81¢1 906
1
#10
81212-MJG-670
MAT, SADDLEBAG BODY
$3.81¢1 906
1
#11
81220-MJG-670ZA
LID, Right SADDLEBAG R201 (MAGNA RED)
$963.38¢481 688
1
#011
81220-MJG-670ZA
LID, Right SADDLEBAG R201 (MAGNA RED)
$963.38¢481 688
1
#011
81220-MJG-670ZB
LID, R. SADDLEBAG *NHB01* (GRAPHITE BLACK)
$963.38¢481 688
1
#11
81220-MJG-670ZB
LID, R. SADDLEBAG *NHB01* (GRAPHITE BLACK)
$963.38¢481 688
1
#12
81230-MCA-S40
HINGE, SADDLEBAG
$32.81¢16 406
1
#012
81230-MCA-S40
HINGE, SADDLEBAG
$32.81¢16 406
1
#13
81231-MCA-S40
PANEL, R. SADDLEBAG
$265.00¢132 500
1
#013
81231-MCA-S40
PANEL, R. SADDLEBAG
$265.00¢132 500
1
#014
81232-MCA-A40
GUARD, SADDLEBAG HEAT
$20.84¢10 419
1
#14
81232-MCA-A40
GUARD, SADDLEBAG HEAT
$20.84¢10 419
1
#15
81233-MJG-670
PIPE, CROSS
$102.83¢51 413
1
#015
81233-MJG-670
PIPE, CROSS
$102.83¢51 413
1
#016
81241-MCA-S40
INNER LID, R. SADDLEBAG
$278.44¢139 219
1
#16
81241-MCA-S40
INNER LID, R. SADDLEBAG
$278.44¢139 219
1
#017
81254-MN5-000
STAY B, LID STOPPER
$6.34¢3 169
1
#17
81254-MN5-000
STAY B, LID STOPPER
$6.34¢3 169
1
#018
81259-MCA-S40
CABLE, SADDLEBAG STOPPER
$10.94¢5 469
1
#18
81259-MCA-S40
CABLE, SADDLEBAG STOPPER
$10.94¢5 469
1
#019
81292-MCA-000
GUIDE, STOPPER CABLE
$4.69¢2 344
1
#19
81292-MCA-000
GUIDE, STOPPER CABLE
$4.69¢2 344
1
#020
81321-MCA-780
ROD A, SADDLEBAG STRIKER
$26.56¢13 281
1
#20
81321-MCA-780
ROD A, SADDLEBAG STRIKER
$26.56¢13 281
1
#21
81322-MCA-780
ROD B, SADDLEBAG STRIKER
$26.56¢13 281
1
#021
81322-MCA-780
ROD B, SADDLEBAG STRIKER
$26.56¢13 281
1
#022
81350-MCA-S40
RUBBER, SADDLEBAG SEAL
$33.34¢16 669
1
#22
81350-MCA-S40
RUBBER, SADDLEBAG SEAL
$33.34¢16 669
1
#23
81351-MCA-S40
RUBBER, BACK PANEL SEAL
$25.60¢12 800
1
#023
81351-MCA-S40
RUBBER, BACK PANEL SEAL
$25.60¢12 800
1
#24
81410-MJG-671ZA
SADDLEBAG, Left R201 (MAGNA RED)
$1545.29¢772 644
1
#024
81410-MJG-671ZA
SADDLEBAG, Left R201 (MAGNA RED)
$1545.29¢772 644
1
#24
81410-MJG-671ZB
SADDLEBAG, Left NHB01 NHRAPHITE BLACK)
$1545.29¢772 644
1
#024
81410-MJG-671ZB
SADDLEBAG, Left NHB01 NHRAPHITE BLACK)
$1545.29¢772 644
1
#025
81420-MJG-670ZB
LID, L. SADDLEBAG *NHB01* (GRAPHITE BLACK)
$963.38¢481 688
1
#25
81420-MJG-670ZB
LID, L. SADDLEBAG *NHB01* (GRAPHITE BLACK)
$963.38¢481 688
1
#025
81420-MJG-670ZA
LID, L. SADDLEBAG *R201* (MAGNA RED)
$963.38¢481 688
1
#25
81420-MJG-670ZA
LID, L. SADDLEBAG *R201* (MAGNA RED)
$963.38¢481 688
1
#026
81431-MCA-S40
PANEL, L. SADDLEBAG
$265.00¢132 500
1
#26
81431-MCA-S40
PANEL, L. SADDLEBAG
$265.00¢132 500
1
#27
81438-MN5-000
WASHER, HINGE SETTING
$11.57¢5 788
1
#027
81438-MN5-000
WASHER, HINGE SETTING
$11.57¢5 788
1
#28
81441-MCA-S40
INNER LID, L. SADDLEBAG
$278.44¢139 219
1
#028
81441-MCA-S40
INNER LID, L. SADDLEBAG
$278.44¢139 219
1
#29
81501-MJG-670
COWL, Rear CENTER SADDLEBAG
$74.42¢37 213
1
#029
81501-MJG-670
COWL, Rear CENTER SADDLEBAG
$74.42¢37 213
1
#30
82213-MCA-S40
COVER, R. SADDLEBAG LID
$115.26¢57 631
1
#030
82213-MCA-S40
COVER, R. SADDLEBAG LID
$115.26¢57 631
1
#31
82513-MCA-S40
COVER, L. SADDLEBAG LID
$115.26¢57 631
1
#031
82513-MCA-S40
COVER, L. SADDLEBAG LID
$115.26¢57 631
1
#32
82871-671-000
GROMMET, DRAIN HOLE (25MM)
$5.41¢2 706
1
#032
82871-671-000
GROMMET, DRAIN HOLE (25MM)
$5.41¢2 706
1
#033
83551-376-000
GROMMET, SIDE COVER
$3.65¢1 825
1
#33
83551-376-000
GROMMET, SIDE COVER
$3.65¢1 825
1
#34
83551-MA6-000
GROMMET, SIDE COVER
$4.06¢2 031
1
#034
83551-MA6-000
GROMMET, SIDE COVER
$4.06¢2 031
1
#35
83590-MCA-013
DAMPER, OPENER
$75.29¢37 644
1
#035
83590-MCA-013
DAMPER, OPENER
$75.29¢37 644
1
#36
83591-MCA-000
PLATE, DAMPER MOUNTING (UPPER)
$4.24¢2 119
1
#036
83591-MCA-000
PLATE, DAMPER MOUNTING (UPPER)
$4.24¢2 119
1
#37
83592-MCA-000
PLATE, DAMPER MOUNTING (LOWER)
$4.16¢2 081
1
#037
83592-MCA-000
PLATE, DAMPER MOUNTING (LOWER)
$4.16¢2 081
1
#038
89106-MN5-000
(L. SIDE ONLY)
$7.63¢3 813
1
#38
89106-MN5-000
(L. SIDE ONLY)
$7.63¢3 813
1
#39
90651-MFL-670
U-CLIP
$3.89¢1 944
1
#39
90101-MCA-S40
BOLT, TORX (5X16)
$2.34¢1 169
1
#039
90101-MCA-S40
BOLT, TORX (5X16)
$2.34¢1 169
1
#040
90104-964-000
SCREW (5X12)
$3.01¢1 506
1
#40
90104-964-000
SCREW (5X12)
$3.01¢1 506
1
#41
90106-KBV-000
SCREW, PAN (6X14)
$4.74¢2 369
1
#041
90106-KBV-000
SCREW, PAN (6X14)
$4.74¢2 369
1
#042
90106-KJ6-740
CLIP, TUBE
$5.29¢2 644
1
#42
90106-KJ6-740
CLIP, TUBE
$5.29¢2 644
1
#043
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.44¢1 719
1
#43
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.44¢1 719
1
#044
90109-MCA-000
SCREW, SPECIAL (6MM)
$4.81¢2 406
1
#44
90109-MCA-000
SCREW, SPECIAL (6MM)
$4.81¢2 406
1
#045
90119-MCA-000
SCREW, SPECIAL (6MM)
$5.14¢2 569
1
#45
90119-MCA-000
SCREW, SPECIAL (6MM)
$5.14¢2 569
1
#046
90116-MEW-920
BOLT, SPECIAL (6X8)
$1.50¢750
1
#46
90116-MEW-920
BOLT, SPECIAL (6X8)
$1.50¢750
1
#047
90201-428-900
NUT, CAP
$2.88¢1 438
1
#47
90201-428-900
NUT, CAP
$2.88¢1 438
1
#048
90312-MT3-000
NUT, CLIP (5MM)
$5.55¢2 775
1
#48
90312-MT3-000
NUT, CLIP (5MM)
$5.55¢2 775
1
#049
90320-MM5-000
NUT, SPRING (6MM)
$3.65¢1 825
1
#49
90320-MM5-000
NUT, SPRING (6MM)
$3.65¢1 825
1
#050
90501-MCA-000
COLLAR, SADDLEBAG MOUNTING
$6.13¢3 063
1
#50
90501-MCA-000
COLLAR, SADDLEBAG MOUNTING
$6.13¢3 063
1
#051
90506-430-000
WASHER, FENDER MOUNTING
$3.65¢1 825
1
#51
90506-430-000
WASHER, FENDER MOUNTING
$3.65¢1 825
1
#52
90512-KF9-900
(L. SIDE ONLY)
$3.71¢1 856
1
#052
90512-KF9-900
(L. SIDE ONLY)
$3.71¢1 856
1
#053
90651-MFL-670
U-CLIP
$3.89¢1 944
1
#54
90677-KAN-961
NUT, CLIP (5MM)
$4.94¢2 469
1
#054
90677-KAN-961
NUT, CLIP (5MM)
$4.94¢2 469
1
#55
91352-GAZ-930
(L. SIDE ONLY)
$2.99¢1 494
1
#055
91352-GAZ-930
(L. SIDE ONLY)
$2.99¢1 494
1
#56
91565-SEL-003
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
1
#056
91565-SEL-003
CLIP, CONNECTOR (BLACK)
$4.45¢2 225
1
#57
93500-05016-0G
SCREW, PAN (5X16)
$1.16¢581
1
#057
93500-05016-0G
SCREW, PAN (5X16)
$1.16¢581
1
#058
93901-25380
SCREW, TAPPING (5X16)
$1.16¢581
1
#58
93901-25380
SCREW, TAPPING (5X16)
$1.16¢581
1
#59
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
#059
93903-24280
SCREW, TAPPING (4X10)
$1.74¢869
1
#060
93903-25180
SCREW, TAPPING (5X10)
$1.16¢581
1
#60
93903-25180
SCREW, TAPPING (5X10)
$1.16¢581
1
#061
93903-25280
SCREW, TAPPING (5X12)
$1.66¢831
1
#61
93903-25280
SCREW, TAPPING (5X12)
$1.66¢831
1
#062
93903-25380
SCREW, TAPPING (5X16)
$1.16¢581
1
#62
93903-25380
SCREW, TAPPING (5X16)
$1.16¢581
1
#063
94050-05000
NUT, FLANGE (5MM)
$1.68¢838
1
#63
94050-05000
NUT, FLANGE (5MM)
$1.68¢838
1
#064
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#64
96001-06012-07
BOLT, FLANGE (6X12)
$2.31¢1 156
1
#65
96001-06030-00
BOLT, FLANGE (6X30)
$1.80¢900
1
#065
96001-06030-00
BOLT, FLANGE (6X30)
$1.80¢900
1
#66
17215-MG9-950
CLAMP A, TUBE
$4.76¢2 381
1
#066
17215-MG9-950
CLAMP A, TUBE
$4.76¢2 381
1
#067
64121-MBG-000
RUBBER, PROTECTOR
$2.63¢1 313
1
#67
64121-MBG-000
RUBBER, PROTECTOR
$2.63¢1 313
1
