FRONT FENDER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

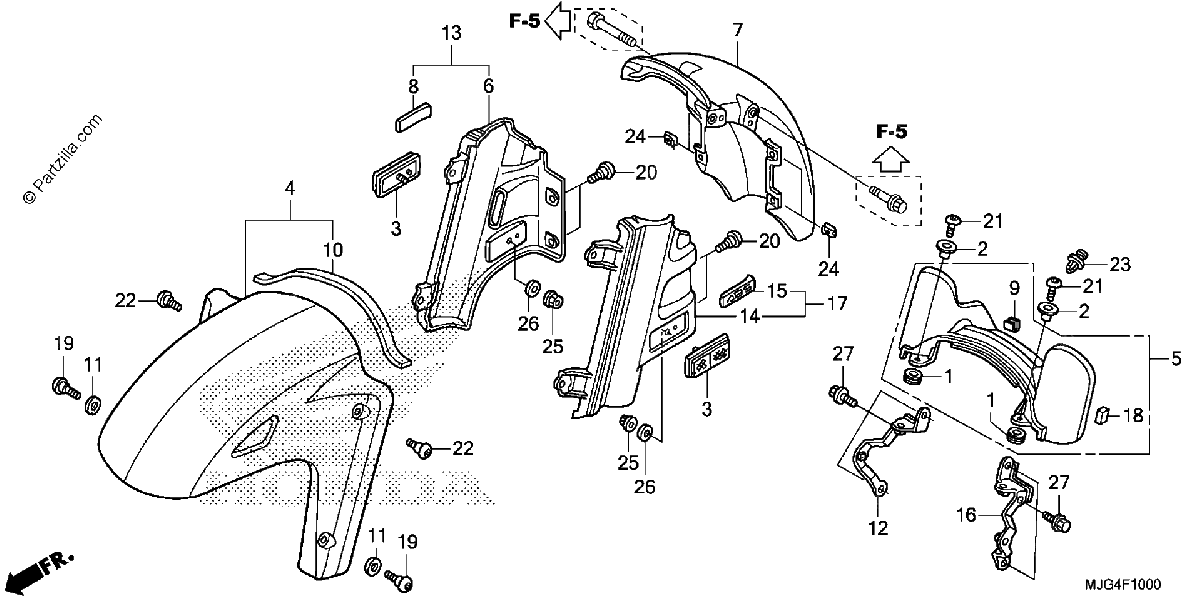

Diagrama de FRONT FENDER

Repuestos

#1
18293-GN2-000
RUBBER, PROTECTOR GASKET
$3.36¢1 679
1
#001
18293-GN2-000
RUBBER, PROTECTOR GASKET
$3.36¢1 679
1
#2
33731-MJ0-940
COLLAR, REGULATOR MOUNTING
$2.83¢1 414
1
#002
33731-MJ0-940
COLLAR, REGULATOR MOUNTING
$2.83¢1 414
1
#3
33741-MCA-601
REFLECTOR, REFLEX
$37.16¢18 578
1
#003
33741-MCA-601
REFLECTOR, REFLEX
$37.16¢18 578
1
#004
61000-MCA-S40ZC
FENDER, Front. NHB01 (A)NHRAPHITE BLACK)
$666.91¢333 454
1
#4
61000-MCA-S40ZC
FENDER, Front. NHB01 (A)NHRAPHITE BLACK)
$666.91¢333 454
1
#4
61000-MCA-S40ZE
FENDER, Front. R201 (A)(MAGNA RED)
$684.51¢342 257
1
#004
61000-MCA-S40ZE
FENDER, Front. R201 (A)(MAGNA RED)
$684.51¢342 257
1
#005
61100-MCA-S40ZB
COVER SET, FR. FORK *NHA86M* (MAT BALLISTIC BLACK)
$63.32¢31 659
1
#5
61100-MCA-S40ZB
COVER SET, FR. FORK *NHA86M* (MAT BALLISTIC BLACK)
$63.32¢31 659
1
#006
61102-MCA-S40ZB
COVER, R. FR. FENDER *NHA86M* (MAT BALLISTIC BLACK)
$57.94¢28 969
1
#6
61102-MCA-S40ZB
COVER, R. FR. FENDER *NHA86M* (MAT BALLISTIC BLACK)
$57.94¢28 969
1
#007
61103-MCA-000YK
FENDER B, Front. NHB01 NHRAPHITE BLACK)
$220.54¢110 268
1
#7
61103-MCA-000YK
FENDER B, Front. NHB01 NHRAPHITE BLACK)
$220.54¢110 268
1
#7
61103-MCA-000YN
FENDER B, Front. R201 (MAGNA RED)
$303.30¢151 651
1
#007
61103-MCA-000YN
FENDER B, Front. R201 (MAGNA RED)
$303.30¢151 651
1
#9
61106-MCA-S40
RUBBER, COVER
$1.26¢633
1
#009
61106-MCA-S40
RUBBER, COVER
$1.26¢633
1
#010
61107-MCA-S40
SEAL, FR. FENDER (A)
$6.84¢3 421
1
#10
61107-MCA-S40
SEAL, FR. FENDER (A)
$6.84¢3 421
1
#11
61108-MCA-000
WASHER, RUBBER
$1.81¢903
1
#011
61108-MCA-000
WASHER, RUBBER
$1.81¢903
1
#12
61109-MCA-000
STAY, R. FR. FENDER
$26.27¢13 133
1
#012
61109-MCA-000
STAY, R. FR. FENDER
$26.27¢13 133
1
#14
61112-MCA-S40ZB
COVER, L. FR. FENDER *NHA86M* (MAT BALLISTIC BLACK)
$57.94¢28 969
1
#014
61112-MCA-S40ZB
COVER, L. FR. FENDER *NHA86M* (MAT BALLISTIC BLACK)
$57.94¢28 969
1
#16
61119-MCA-000
STAY, L. FR. FENDER
$40.61¢20 303
1
#016
61119-MCA-000
STAY, L. FR. FENDER
$40.61¢20 303
1
#18
80103-MFE-670
RUBBER, TAILLIGHT
$1.64¢822
1
#018
80103-MFE-670
RUBBER, TAILLIGHT
$1.64¢822
1
#019
90104-MN4-000
SCREW, SPECIAL (6X19)
$6.45¢3 226
1
#19
90104-MN4-000
SCREW, SPECIAL (6X19)
$6.45¢3 226
1
#020
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#20
90106-MBY-000
SCREW, SPECIAL (5X12)
$3.16¢1 581
1
#21
90113-MCJ-000
SCREW, PAN (5X15)
$2.64¢1 322
1
#021
90113-MCJ-000
SCREW, PAN (5X15)
$2.64¢1 322
1
#022
90113-MM5-000
SCREW, PAN (6X14)
$3.45¢1 725
1
#22
90113-MM5-000
SCREW, PAN (6X14)
$3.45¢1 725
1
#23
90653-HC4-900
CLIP, SPLASH GUARD
$0.70¢351
1
#023
90653-HC4-900
CLIP, SPLASH GUARD
$0.70¢351
1
#024
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#24
90677-KAN-961
NUT, CLIP (5MM)
$4.54¢2 271
1
#25
94050-05080
NUT, FLANGE (5MM)
$0.41¢207
1
#025
94050-05080
NUT, FLANGE (5MM)
$0.41¢207
1
#026
94101-05800
WASHER, PLAIN (5MM)
$1.17¢586
1
#26
94101-05800
WASHER, PLAIN (5MM)
$1.17¢586
1
#027
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
#27
96001-06012-00
BOLT, FLANGE (6X12)
$2.13¢1 064
1
