MUFFLER

⚠️ Verificar CantidadesRevisa el diagrama cuidadosamente. Si tu ensamble requiere múltiples unidades de un mismo número (ej: 6 tornillos idénticos), asegúrate de ajustar la cantidad de piezas manualmente antes de añadirlas al carrito.

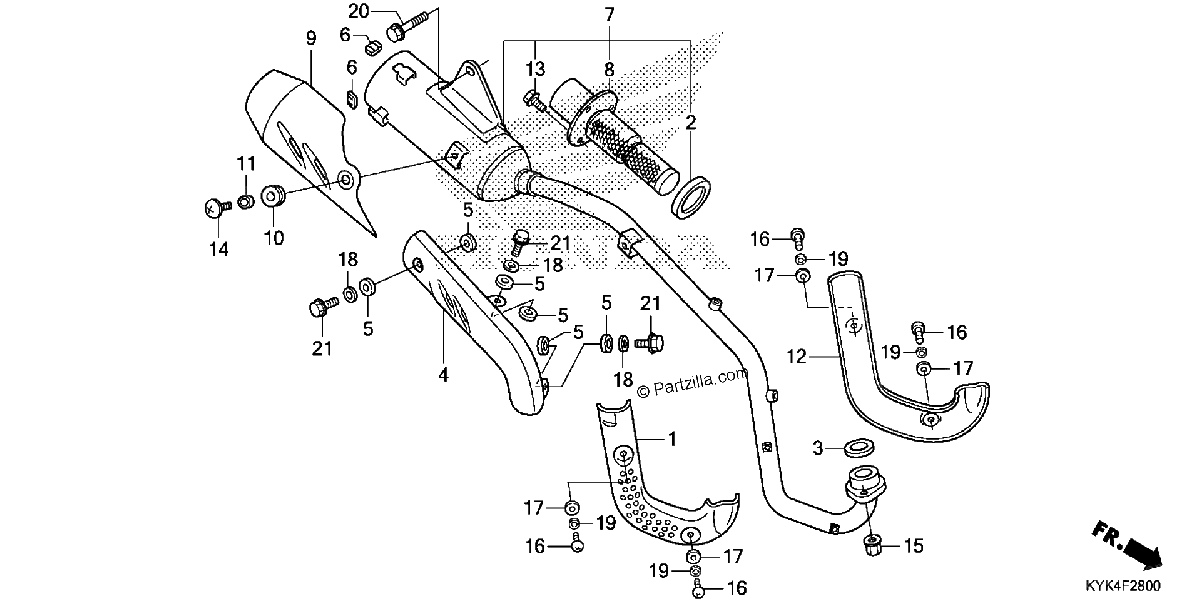

Diagrama de MUFFLER

Repuestos

#1
18240-KYK-910
COVER A, EX. PIPE
$48.15¢24 075
1
#2
18291-KR1-680
GASKET A, EX PIPE
$9.35¢4 675
1
#3
18291-GE2-920
GASKET, EX. PIPE
$7.22¢3 611
1
#3
18291-KVR-C00
GASKET, EX. PIPE
$7.22¢3 611
1
#4
18291-KYK-910
COVER C, EX. PIPE
$32.31¢16 157
1
#5
18292-KBR-000
GASKET, PROTECTOR
$3.85¢1 926
1
#6
18293-KYY-900
RUBBER, PROTECTOR GASKET
$3.07¢1 535
1
#7
18300-KYK-305
MUFFLER ASSY. (COO)
$406.13¢203 067
1
#8
18317-KYK-305
ARRESTER, SPARK (COO)
$74.62¢37 312
1
#9
18330-KYK-305
COVER, MUFFLER (COO)
$30.16¢15 082
1
#10
18345-KTJ-900
RUBBER, MUFFLER MOUNTING
$3.98¢1 989
1
#11
18422-KTJ-900
COLLAR, MUFFLER MOUNTING
$3.22¢1 610
1
#12
18450-KYK-910
COVER B, EX. PIPE
$20.44¢10 218
1
#13
90101-KCE-000
BOLT, FLANGE (6X10)
$1.92¢960
1
#13
96001-06010-07
BOLT, FLANGE (6X10)
$1.92¢960
1
#14
90107-KWK-900
BOLT, BODY COVER SETTING
$3.54¢1 771
1
#15
90301-KWB-600
NUT, FLANGE (8MM)
$1.03¢518
1
#16
93500-05006-0G
SCREW, PAN (5X6)
$0.98¢489
1
#17
94101-05700
WASHER, PLAIN (5MM)
$1.17¢586
1
#18
94101-06700
WASHER, PLAIN (6MM)
$1.12¢558
1
#19
94111-05700
WASHER, SPRING (5MM)
$1.33¢667
1
#20
95701-08035-00
BOLT, FLANGE (8X35)
$2.71¢1 357
1
#21
96001-06012-07
BOLT, FLANGE (6X12)
$2.13¢1 064
1
